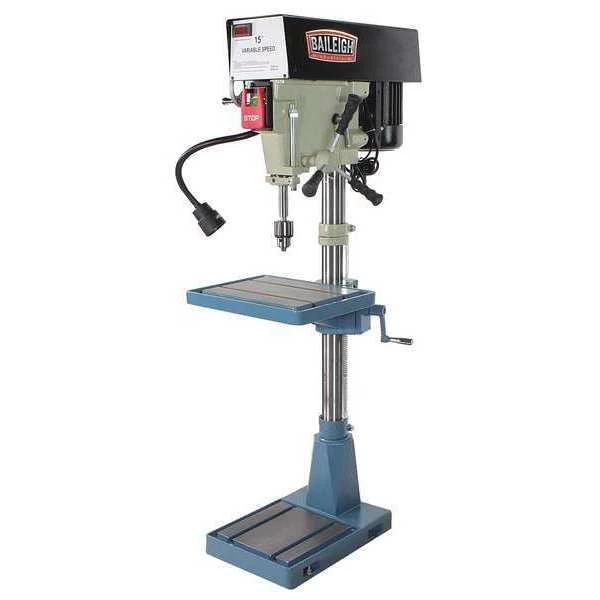

Baileigh Industrial Drill Press, Belt Drive, 1 hp, 110 V, 15 in Swing, Variable Speed
Original price was: $526.00.$93.99Current price is: $93.99.
Floor Drill Press, Primary Material Application Wood, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Drilling, Speed Control Variable, Speed Adjustment Variable Speed Pulley, Swing 15 in, Horsepower 1 hp, Voltage 110V AC, Spindle Taper 3MT, Number of Speeds Variable, Chuck Size 5/8 in, Chuck Style Machine Taper, Guard Included Yes, Coolant System No, Quill Diameter 2 1/4 in, Drilling Capacity in Wood 5/8 in
... people are viewing this right now
Baileigh Industrial #DP-15VSF Specifications
- Zoro #: G0603176
- Mfr #: DP-15VSF
- Promotion Restriction: Not eligible for promotion
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 15 in
- Voltage: 110
- Motor HP: 1 hp
- Chuck Size: 5/8 in
- Number of Speeds: Variable
- Spindle Speed: 400 to 5000 rpm
- Table Slot Size: 5/8 in
- Column Dia.: 4 1/2 in
- Base Size: 21 in x 14 in
- Spindle to Table: 23 13/32 in
- Phase: 1
- Table Work Surface: 14 in x 18 in
- Corded/Cordless: Corded
- Max. Spindle To Base: 42 5/16 in
- Spindle Taper: 3MT
- Hz: 60
- Corded/Banded: Corded
- Overall Depth: 36 in
- Overall Height: 68 in
- Amps AC: 20
- Overall Width: 25 in
- Spindle Travel: 6 in
- Power Down Feed Included: No
- Table Shape: Rectangular
- Primary Material Application: Wood
- Drill Press Type: Floor Stand
- Table Slot: Yes
- Tapping Compatible: Yes
- Drilling Capacity in Wood: 5/8 in
- Spindle Speed Range: 400 RPM – 5,000 RPM
- Base Length: 21 in
- Number of Pieces: 1
- Maximum Spindle-to-Table Height: 13/32 in
- Maximum Spindle-to-Base Height: 42 5/16 in
- Drill Press Application: Drilling
- Speed Control – Merch: Variable Speed
- Coolant System: No
- Speed Control: Variable
- Base Width: 14 in
- Power Source: Corded
- Speed Range: 400 to 5,000 RPM
- Radial Arm: No
- Column Diameter: 4 1/2 in
- Horsepower: 1 hp
- Minimum Spindle Speed: 400 RPM
- Maximum Spindle Speed: 5,000 RPM
- Motor Voltage: 115V AC ; Single-Phase
- Guard Included: Yes
- Maximum Overall Height: 68 in
- Quill Diameter: 2 1/4 in
- Current: 20 A
- Nominal Voltage: 115V AC
- Number of Spindle Speeds: Variable
- Chuck Style: Machine Taper
- Chuck Capacity: 5/8 in
- Table Length: 14 in
- Table Width: 18 in
- Speed Adjustment: Variable Speed Pulley
- Country of Origin (subject to change): Taiwan, Province of China
