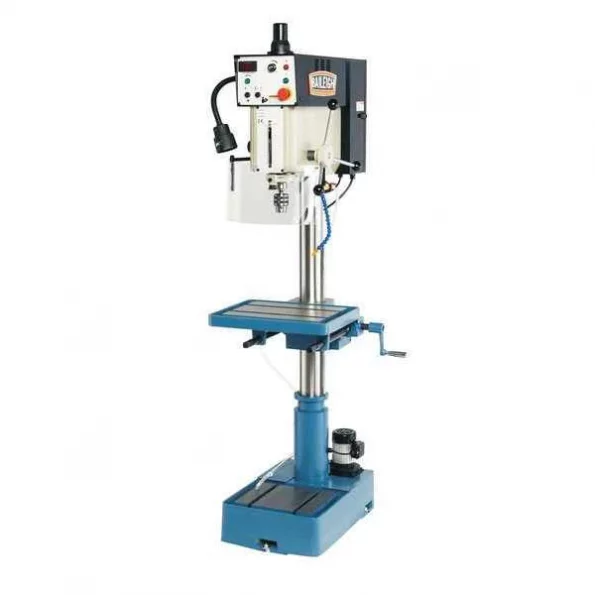

Baileigh Industrial Floor Drill Press, Belt Drive, 2 hp, 220 V, 16 in Swing, Variable Speed
Original price was: $408.00.$96.99Current price is: $96.99.
Floor Drill Press, Primary Material Application Metal, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Milling, Reaming, Tapping, Speed Control Variable, Speed Adjustment AC Inverter, Swing 16 in, Spindle-to-Column Distance 10 7/16 in, Horsepower 2 hp, Voltage 220V AC, Spindle Taper 3MT, Number of Speeds Variable, Chuck Size 5/8 in, Chuck Style Machine Taper, Guard Included Yes, Coolant System Yes, Quill Diameter 2 7/16 in
... people are viewing this right now
Baileigh Industrial #DP-1000VS Specifications
- Zoro #: G1998381
- Mfr #: DP-1000VS
- Promotion Restriction: Not eligible for promotion
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 16 in
- Voltage: 220
- Motor HP: 2 hp
- Chuck Size: Not Included
- Number of Speeds: Variable
- Capacity Steel: 1 in
- Spindle Taper: 3MT
- Includes: LED Readout
- Spindle Travel: 5 5/16 in
- Quill Dia.: 2 7/16 in
- Table Work Surface: 18 in x 14 in
- Corded/Cordless: Corded
- Spindle to Table: 23 13/16 in
- Capacity Cast Iron: 1 1/4 in
- Corded/Banded: Corded
- Overall Width: 24 in
- Overall Depth: 32 in
- Max. Spindle To Base: 45 5/16 in
- Column Dia.: 3 5/8 in
- Phase: 1
- Base Size: 27 in x 19 in
- Overall Height: 79 in
- Table Slot Size: 5/8 in
- Hz: 60
- Power Down Feed Included: No
- Maximum Overall Height: 79 in
- Tapping Capacity in Steel: 5/8 in
- Drilling Capacity in Steel: 1 in
- Drill Spindle Travel: 5 in – 6 in
- Minimum Spindle Speed: 150 RPM
- Current: 7 A
- Speed Range: 150 to 3,000 RPM
- Chuck Style: Machine Taper
- Maximum Spindle-to-Table Height: 23 13/16 in
- Reversible: Yes
- Drill Press Application: Boring, Countersinking, Drilling, Milling, Reaming, Tapping
- Guard Included: Yes
- Primary Material Application: Metal
- Motor Voltage: 230V AC ; Single-Phase
- Table Width: 14 1/4 in
- Table Shape: Rectangular
- Spindle-to-Column Distance: 10 7/16 in
- Base Width: 19 in
- Drilling Capacity in Cast Iron: 1 1/4 in
- Number of Pieces: 3
- Quill Diameter: 2 7/16 in
- Spindle Speed Range: 150 RPM – 3,000 RPM
- Power Source: Corded
- Speed Control: Variable
- Maximum Spindle-to-Base Height: 45 5/16 in
- Base Length: 27 in
- Column Diameter: 3 5/8 in
- Number of Spindle Speeds: Variable
- Drill Press Type: Floor Stand
- Tapping Compatible: Yes
- Coolant System: Yes
- Speed Adjustment: AC Inverter
- Radial Arm: No
- Maximum Spindle Speed: 3,000 RPM
- Horsepower: 2 hp
- Table Slot: Yes
- Table Length: 18 1/8 in
- Nominal Voltage: 230V AC
- Country of Origin (subject to change): Taiwan, Province of China
