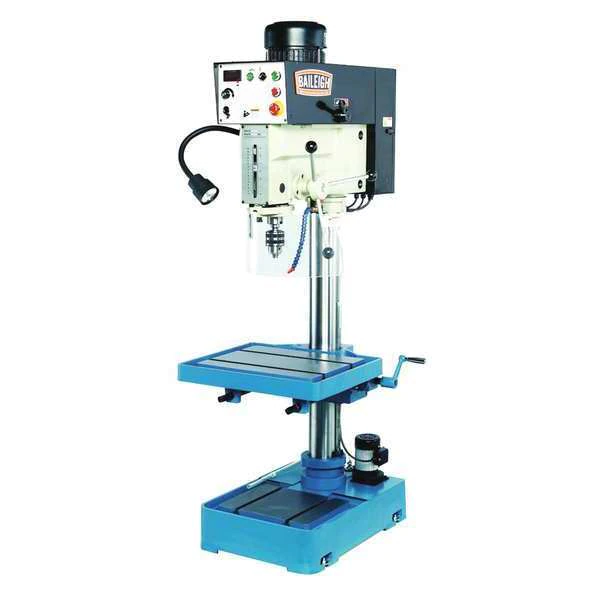

Baileigh Industrial Floor Drill Press, Belt Drive, 2 hp, 220 V, 20 13/16 in Swing, Variable Speed
Original price was: $514.00.$98.99Current price is: $98.99.
Floor Drill Press, Primary Material Application Metal, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Milling, Reaming, Tapping, Speed Control Variable, Speed Adjustment AC Inverter, Swing 20 7/8 in, Spindle-to-Column Distance 10 7/16 in, Horsepower 2 hp, Voltage 220V AC, Spindle Taper 4MT, Number of Speeds Variable, Chuck Size 5/8 in, Chuck Style Machine Taper, Guard Included Yes, Coolant System Yes, Quill Diameter 2 61/64 in
Baileigh Industrial #DP-1250VS-HS Specifications
- Zoro #: G1998339
- Mfr #: DP-1250VS-HS
- Promotion Restriction: Not eligible for promotion
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 20 13/16 in
- Voltage: 220
- Motor HP: 2 hp
- Chuck Size: Not Included
- Number of Speeds: Variable
- Capacity Steel: 1 1/2 in
- Spindle Travel: 5 29/32 in
- Corded/Cordless: Corded
- Includes: LED Readout
- Table Slot Size: 5/8 in
- Phase: 1
- Overall Depth: 40 in
- Hz: 60
- Column Dia.: 4 1/2 in
- Corded/Banded: Corded
- Spindle to Table: 36 13/32 in
- Overall Width: 25 in
- Table Work Surface: 22 in x 18-1/2 in
- Quill Dia.: 2 61/64 in
- Base Size: 27 in x 19 in
- Capacity Cast Iron: 1 3/4 in
- Spindle Taper: 4MT
- Max. Spindle To Base: 40 3/4 in
- Overall Height: 83 in
- Power Down Feed Included: No
- Minimum Spindle Speed: 85 RPM
- Power Source: Corded
- Coolant System: Yes
- Drill Press Application: Boring, Countersinking, Drilling, Milling, Reaming, Tapping
- Maximum Overall Height: 83 in
- Maximum Spindle-to-Table Height: 36 13/32 in
- Table Slot: Yes
- Speed Range: 85 to 540 RPM / 540 to 4,000 RPM
- Drill Spindle Travel: 5 in – 6 in
- Base Length: 27 in
- Motor Voltage: 230V AC ; Single-Phase
- Column Diameter: 4 1/2 in
- Spindle Speed Range: 85 RPM – 4,000 RPM
- Horsepower: 2 hp
- Drill Press Type: Floor Stand
- Current: 7 A
- Number of Pieces: 2
- Maximum Spindle Speed: 4,000 RPM
- Spindle-to-Column Distance: 10 7/16 in
- Tapping Capacity in Steel: 3/4 in
- Radial Arm: No
- Speed Adjustment: AC Inverter
- Table Shape: Rectangular
- Quill Diameter: 2 61/64 in
- Number of Spindle Speeds: Variable
- Chuck Style: Machine Taper
- Tapping Compatible: Yes
- Base Width: 19 in
- Drilling Capacity in Steel: 1 1/2 in
- Speed Control: Variable
- Maximum Spindle-to-Base Height: 48 13/16 in
- Guard Included: Yes
- Primary Material Application: Metal
- Drilling Capacity in Cast Iron: 1 3/4 in
- Reversible: Yes
- Nominal Voltage: 230V AC
- Country of Origin (subject to change): Taiwan, Province of China
