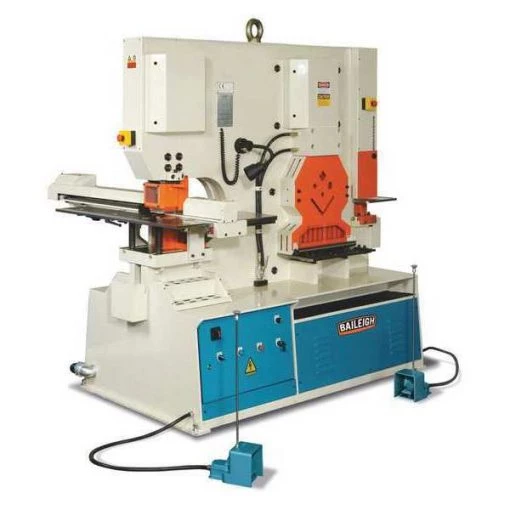

Baileigh Industrial Ironworker, 16In Throat Depth, 30spm
Original price was: $567.00.$92.99Current price is: $92.99.
Ironworker, Voltage 220V AC, Phase Three-Phase, Current 50 A, External Hydraulic Output Force 179 Tonf, Number of Hydraulic Motors 1, Number of Stations 3, Included Tool Types Angle Shear, Flat Shear, Pipe Notcher, Punch, Round Shear, Square Shear, Punch Capacity Aluminum 4.1 in x 4.1 in x 0.6 in, Punch Capacity Mild Steel 1 1/8 in x 1 1/16 in, Punch Throat Depth 16 in, Notcher Capacity Aluminum 4.1 in x 4.1 in x 0.6 in
Baileigh Industrial #SW-132 Specifications
- Zoro #: G3476210
- Mfr #: SW-132
- Promotion Restriction: Not eligible for promotion
- Item: Ironworker
- Max. Force (Tons): 135
- Speed (Strokes/Minute): 30
- Throat Depth (In.): 16 in
- Application: Angle Iron Shearing, Hole Punching, Metal Fabrication, Round Bar Shearing
- Height (In.): 80 45/64 in
- Motor HP: 15 hp
- Length (In.): 85 1/2 in
- Punching Station: Round Punch and Dies Included, Stripper and Punch Retaining Nut
- Phase: 3
- Features: 5 Station, Electric Stroke Control, Manual Back Gauge, Oversize Tables, Vertical Movement, Waste Bins
- Voltage: 220 V
- Hz: 60
- Width (In.): 44 in
- Flat Bar Shear Capacity Mild Steel: 18.1 in x 0.75 in
- Square Bar Shear Capacity Mild Steel: 1 3/4 in x 1 3/4 in
- Round Bar Shear Capacity Aluminum: 1 3/4 in
- Nominal Voltage + Phase: 230V AC ; Three-Phase
- Overall Length: 85 1/2 in
- Round Bar Shear Capacity Mild Steel: 1 3/4 in
- Overall Width: 44 in
- Punch Dies Included: 7 Round Punch Dies
- Standards: California Proposition 65
- Punch Capacity Mild Steel: 1 1/8 in x 1 1/16 in
- Angle Shear Capacity Mild Steel: 6 in x 6 in x 0.6 in
- Punch Throat Depth: 16 in
- Number of Stations: 3
- Included Tool Types: Angle Shear, Flat Shear, Pipe Notcher, Punch, Round Shear, Square Shear
- Actuation: Foot Pedal
- Flat Bar Shear Capacity Aluminum: 18.1 in x 0.75 in
- Overall Height: 80 11/16 in
- Angle Shear Capacity Aluminum: 6 in x 6 in x 0.6 in
- Power Source: Corded
- Series: SW
- Nominal Voltage: 230V AC
- Punch Capacity Aluminum: 4.1 in x 4.1 in x 0.6 in
- Horsepower: 15 hp
- Notcher Capacity Mild Steel: 4.1 in x 4.1 in x 0.6 in
- Current: 50 A
- Number of Hydraulic Motors: 1
- Tool Weight: 9,460 lb
- Notcher Dies Included: 1/2 in
- Notcher Capacity Aluminum: 4.1 in x 4.1 in x 0.6 in
- Shear Dies Included: Yes
- Square Bar Shear Capacity Aluminum: 1 3/4 in x 1 3/4 in
- External Hydraulic Output Force: 179 Tonf
- Country of Origin (subject to change): Taiwan, Province of China
