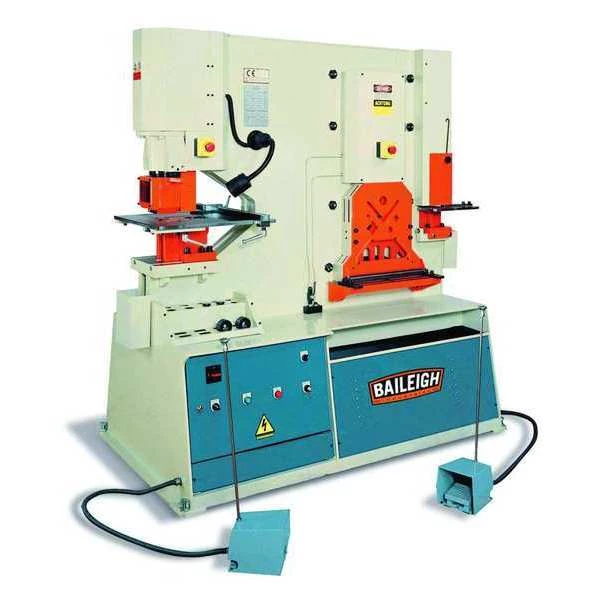

Baileigh Industrial Ironworker, 16In Throat Depth, 38spm
Original price was: $497.00.$97.99Current price is: $97.99.
Ironworker, Voltage 220V AC, Phase Three-Phase, Current 50 A, External Hydraulic Output Force 123 Tonf, Number of Hydraulic Motors 1, Number of Stations 3, Included Tool Types Angle Shear, Flat Shear, Pipe Notcher, Punch, Round Shear, Square Shear, Punch Capacity Aluminum 1 1/16 in x 7/8 in, Punch Capacity Mild Steel 1 1/16 in x 3/32 in, Punch Throat Depth 16 in, Notcher Capacity Aluminum 4.1 in x 4.1 in x 0.5 in, Notcher Capacity Stainless Steel 3 1/2 in x 3 1/2 in x 3/8 in
Baileigh Industrial #SW-95 Specifications
- Zoro #: G3476140
- Mfr #: SW-95
- Promotion Restriction: Not eligible for promotion
- Item: Ironworker
- Max. Force (Tons): 95
- Speed (Strokes/Minute): 38
- Throat Depth (In.): 16 in
- Application: Angle Iron Shearing, Hole Punching, Metal Fabrication, Round Bar Shearing
- Width (In.): 40 7/64 in
- Punching Station: Round Punch and Dies Included, Stripper and Punch Retaining Nut
- Length (In.): 70 39/64 in
- Phase: 3
- Voltage: 220 V
- Hz: 60
- Features: 5 Station, Electric Stroke Control, Manual Back Gauge, Oversize Tables, Vertical Movement, Waste Bins
- Motor HP: 10 hp
- Hydraulic Pressure (PSI): 4,200
- Oil Capacity (Gal.): 49.5
- Height (In.): 73 13/32 in
- Square Bar Shear Capacity Mild Steel: 1 3/4 in x 1 3/4 in
- Notcher Capacity Mild Steel: 4.1 in x 4.1 in x 0.5 in
- Notcher Capacity Stainless Steel: 3 1/2 in x 3 1/2 in x 3/8 in
- Punch Throat Depth: 16 in
- Tool Weight: 6,050 lb
- Overall Length: 70 5/8 in
- Round Bar Shear Capacity Aluminum: 1 3/4 in
- Actuation: Foot Pedal
- Punch Dies Included: 7 Round Punch Dies
- Nominal Voltage: 230V AC
- Flat Bar Shear Capacity Mild Steel: 16 in x 0.75 in
- Standards: California Proposition 65
- Angle Shear Capacity Aluminum: 5.125 in x 5.125 in x 0.5 in
- Shear Dies Included: Yes
- Notcher Capacity Aluminum: 4.1 in x 4.1 in x 0.5 in
- Included Tool Types: Angle Shear, Flat Shear, Pipe Notcher, Punch, Round Shear, Square Shear
- Current: 50 A
- Series: SW
- Angle Shear Capacity Mild Steel: 5.125 in x 5.125 in x 0.5 in
- Punch Capacity Mild Steel: 1 1/16 in x 3/32 in
- External Hydraulic Output Force: 123 Tonf
- Square Bar Shear Capacity Aluminum: 1 3/4 in x 1 3/4 in
- Round Bar Shear Capacity Mild Steel: 1 3/4 in
- Number of Hydraulic Motors: 1
- Flat Bar Shear Capacity Aluminum: 16 in x 0.75 in
- Punch Capacity Aluminum: 1 1/16 in x 7/8 in
- Power Source: Corded
- Nominal Voltage + Phase: 230V AC ; Three-Phase
- Horsepower: 10 hp
- Overall Height: 73 3/8 in
- Number of Stations: 3
- Overall Width: 40 1/8 in
- Notcher Dies Included: 1/2 in
- Country of Origin (subject to change): Taiwan, Province of China
