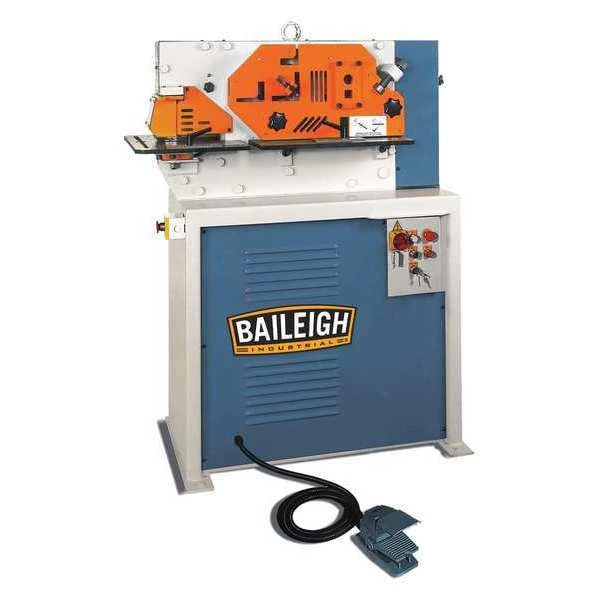

Baileigh Industrial Ironworker, 6-7/8In Throat Depth, 23spm
Original price was: $477.00.$98.99Current price is: $98.99.
Ironworker, Voltage 220V AC, Phase Single-Phase, Current 20 A, External Hydraulic Output Force 44 Tonf, Number of Hydraulic Motors 1, Number of Stations 2, Included Tool Types Angle Shear, Flat Shear, Punch, Round Shear, Square Shear, Punch Capacity Aluminum 3/4 in x 5/8 in, Punch Capacity Mild Steel 3/4 in x 1/4 in, Punch Throat Depth 6 7/8 in
Baileigh Industrial #SW-441 Specifications
- Zoro #: G3476195
- Mfr #: SW-441
- Promotion Restriction: Not eligible for promotion
- Item: Ironworker
- Max. Force (Tons): 44
- Speed (Strokes/Minute): 23
- Throat Depth (In.): 6 7/8 in
- Application: Angle Iron Shearing, Hole Punching, Metal Fabrication, Round Bar Shearing
- Features: Angle Shear, Flat Bar Shear Standard, Punch, Solid Bar Shear
- Phase: 1
- Motor HP: 5 hp
- Hz: 60
- Punching Station: Round Punch and Dies Included, Stripper and Punch Retaining Nut
- Width (In.): 22 in
- Height (In.): 59 in
- Length (In.): 44 in
- Voltage: 220 V
- Overall Length: 44 in
- Standards: California Proposition 65, CE Certified
- Overall Width: 22 in
- Overall Height: 59 in
- Series: SW
- Shear Dies Included: Yes
- Punch Capacity Aluminum: 3/4 in x 5/8 in
- Angle Shear Capacity Aluminum: 3 in x 3 in x 0.25 in
- Actuation: Foot Pedal
- Horsepower: 3 hp
- Angle Shear Capacity Mild Steel: 3 in x 3 in x 0.25 in
- Included Tool Types: Angle Shear, Flat Shear, Punch, Round Shear, Square Shear
- Round Bar Shear Capacity Mild Steel: 1 1/8 in
- Number of Stations: 2
- Round Bar Shear Capacity Aluminum: 1 1/8 in
- Nominal Voltage: 230V AC
- Square Bar Shear Capacity Aluminum: 1 in x 1 in
- Flat Bar Shear Capacity Mild Steel: 7.87 in x 0.5 in
- Power Source: Corded
- Punch Capacity Mild Steel: 3/4 in x 1/4 in
- External Hydraulic Output Force: 44 Tonf
- Nominal Voltage + Phase: 230V AC ; Single-Phase
- Round Bar Shear Capacity Stainless Steel: 3/4 in
- Number of Hydraulic Motors: 1
- Punch Dies Included: 3/4 in
- Flat Bar Shear Capacity Aluminum: 7.87 in x 0.5 in
- Current: 20 A
- Punch Throat Depth: 6 7/8 in
- Country of Origin (subject to change): Taiwan, Province of China
