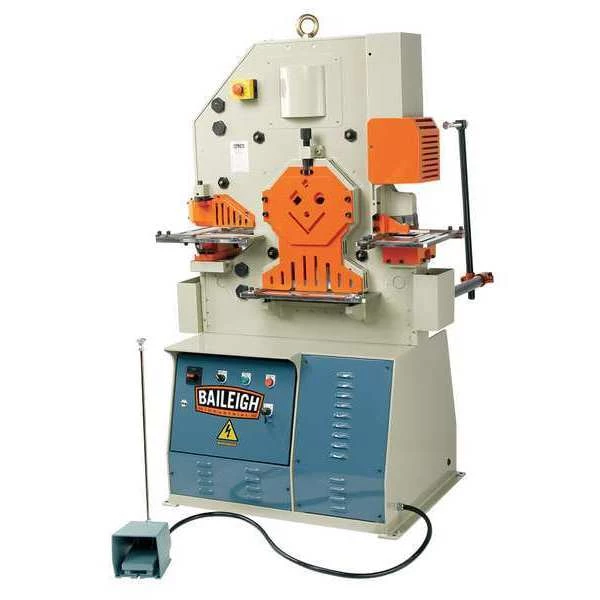

Baileigh Industrial Ironworker, 62 Ton
Original price was: $449.00.$94.99Current price is: $94.99.
Ironworker, Voltage 220V AC, Phase Three-Phase, Current 30 A, External Hydraulic Output Force 62 Tonf, Number of Hydraulic Motors 1, Number of Stations 5, Included Tool Types Angle Shear, Flat Shear, Pipe Notcher, Punch, Round Shear, Square Shear, Punch Capacity Aluminum 1 1/8 in x 5/8 in, Punch Capacity Mild Steel 1 1/8 in x 3/8 in, Punch Throat Depth 8 in, Notcher Capacity Aluminum 2 in x 3.5 in x 0.312 in, Notcher Capacity Stainless Steel 2 in x 3 1/2 in x 5/16 in
Baileigh Industrial #SW-623 Specifications
- Zoro #: G3500065
- Mfr #: SW-623
- Promotion Restriction: Not eligible for promotion
- Item: Ironworker
- Max. Force (Tons): 62
- Speed (Strokes/Minute): 28
- Throat Depth (In.): 8 in
- Application: Angle Iron Shearing, Hole punching, Metal Fabrication, Round Bar Shearing
- Voltage: 220 V
- Width (In.): 30 in
- Hz: 60
- Hydraulic Pressure (PSI): 3,500
- Phase: 3
- Motor HP: 5 hp
- Features: 5 Station, Electric Stroke Control, Manual Backgauge, Oversize Tables, Vertical Movement, Waste Bins
- Length (In.): 45 in
- Oil Capacity (Gal.): 18.5, Required 15.8
- Height (In.): 68 in
- Standards: California Proposition 65
- Overall Length: 45 in
- Overall Width: 30 in
- Overall Height: 68 in
- Notcher Dies Included: 3/8 in
- Notcher Capacity Aluminum: 2 in x 3.5 in x 0.312 in
- Flat Bar Shear Capacity Stainless Steel: 13 in x 0.375 in
- Round Bar Shear Capacity Mild Steel: 1 1/2 in
- Number of Stations: 5
- Series: SW
- Current: 30 A
- Square Bar Shear Capacity Mild Steel: 1 1/2 in x 1 1/2 in
- Punch Capacity Mild Steel: 1 1/8 in x 3/8 in
- Horsepower: 5 hp
- Flat Bar Shear Capacity Aluminum: 13.5 in x 0.5 in
- Square Bar Shear Capacity Aluminum: 1 1/2 in x 1 1/2 in
- Punch Throat Depth: 8 in
- Shear Dies Included: Yes
- Round Bar Shear Capacity Aluminum: 1 1/2 in
- Nominal Voltage: 230V AC
- Angle Shear Capacity Mild Steel: 4 in x 4 in x 0.375 in
- Notcher Capacity Stainless Steel: 2 in x 3 1/2 in x 5/16 in
- Punch Capacity Aluminum: 1 1/8 in x 5/8 in
- Angle Shear Capacity Aluminum: 4 in x 4 in x 0.375 in
- Flat Bar Shear Capacity Mild Steel: 13.5 in x 0.5 in
- Included Tool Types: Angle Shear, Flat Shear, Pipe Notcher, Punch, Round Shear, Square Shear
- Number of Hydraulic Motors: 1
- Power Source: Corded
- Punch Dies Included: 7 Round Punch Dies
- Notcher Capacity Mild Steel: 2 in x 3.5 in x 0.312 in
- Nominal Voltage + Phase: 230V AC ; Three-Phase
- External Hydraulic Output Force: 62 Tonf
- Country of Origin (subject to change): Taiwan, Province of China
