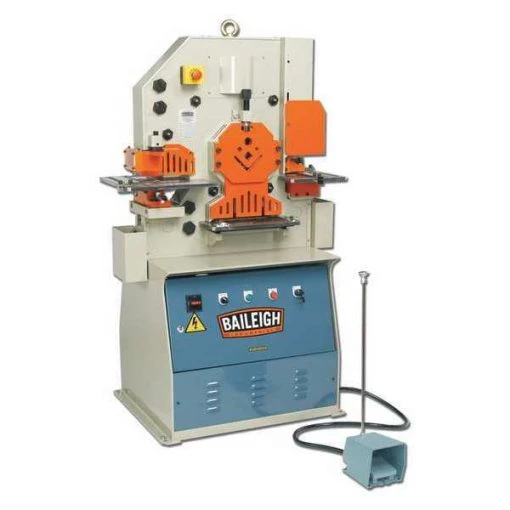

Baileigh Industrial Ironworker, 6In Throat Depth, 19spm
Original price was: $434.00.$93.99Current price is: $93.99.
Ironworker, Voltage 220V AC, Phase Three-Phase, Current 30 A, External Hydraulic Output Force 50 Tonf, Number of Hydraulic Motors 1, Number of Stations 5, Included Tool Types Angle Shear, Flat Shear, Pipe Notcher, Punch, Round Shear, Square Shear, Punch Capacity Aluminum 7/8 in x 5/8 in, Punch Capacity Mild Steel 7/8 in x 1/4 in, Punch Throat Depth 6 in, Notcher Capacity Aluminum 2 in x 3.5 in x 0.281 in, Notcher Capacity Stainless Steel 1 1/2 in x 2 1/2 in x 7/32 in
Baileigh Industrial #SW-503 Specifications
- Zoro #: G3476177
- Mfr #: SW-503
- Promotion Restriction: Not eligible for promotion
- Item: Ironworker
- Max. Force (Tons): 50
- Speed (Strokes/Minute): 19
- Throat Depth (In.): 6 in
- Application: Angle Iron Shearing, Hole Punching, Metal Fabrication, Round Bar Shearing
- Width (In.): 27 in
- Features: 5 Station, Electric Stroke Control, Manual Back Gauge, Oversize Tables, Vertical Movement, Waste Bins
- Punching Station: Round Punch and Dies Included, Stripper and Punch Retaining Nut
- Height (In.): 62 in
- Phase: 3
- Voltage: 220 V
- Hz: 60
- Motor HP: 3 hp
- Length (In.): 38 in
- Overall Width: 27 in
- Overall Length: 38 in
- Standards: California Proposition 65
- Overall Height: 62 in
- Angle Shear Capacity Mild Steel: 3 in x 3 in x 0.25 in
- Round Bar Shear Capacity Aluminum: 1 1/8 in
- Round Bar Shear Capacity Mild Steel: 1 1/8 in
- Flat Bar Shear Capacity Mild Steel: 10 in x 0.375 in
- Notcher Dies Included: 1/4 in
- Notcher Capacity Mild Steel: 2 in x 3.5 in x 0.281 in
- Notcher Capacity Aluminum: 2 in x 3.5 in x 0.281 in
- Angle Shear Capacity Aluminum: 3 in x 3 in x 0.25 in
- Punch Dies Included: 7 Round Punch Dies
- Current: 30 A
- Punch Capacity Mild Steel: 7/8 in x 1/4 in
- Series: SW
- Punch Throat Depth: 6 in
- Notcher Capacity Stainless Steel: 1 1/2 in x 2 1/2 in x 7/32 in
- Number of Hydraulic Motors: 1
- Shear Dies Included: Yes
- Power Source: Corded
- Flat Bar Shear Capacity Aluminum: 10 in x 0.5 in
- Number of Stations: 5
- Square Bar Shear Capacity Aluminum: 1 in x 1 in
- Nominal Voltage + Phase: 230V AC ; Three-Phase
- Square Bar Shear Capacity Mild Steel: 1 in x 1 in
- Horsepower: 3 hp
- Punch Capacity Aluminum: 7/8 in x 5/8 in
- Nominal Voltage: 230V AC
- External Hydraulic Output Force: 50 Tonf
- Included Tool Types: Angle Shear, Flat Shear, Pipe Notcher, Punch, Round Shear, Square Shear
- Country of Origin (subject to change): Taiwan, Province of China
