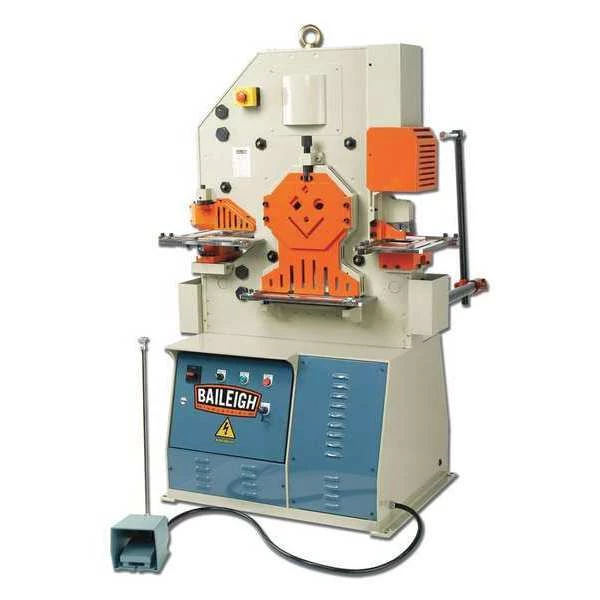

Baileigh Industrial Ironworker, 8In Throat Depth, 28spm
Original price was: $555.00.$95.99Current price is: $95.99.
Ironworker, Voltage 220V AC, Phase Single-Phase, Current 30 A, External Hydraulic Output Force 62 Tonf, Number of Hydraulic Motors 1, Number of Stations 5, Included Tool Types Angle Shear, Flat Shear, Pipe Notcher, Punch, Round Shear, Square Shear, Punch Capacity Aluminum 1 1/8 in x 5/8 in, Punch Capacity Mild Steel 1 1/8 in x 3/8 in, Punch Throat Depth 8 in, Notcher Capacity Aluminum 2 in x 3.5 in x 0.312 in, Notcher Capacity Stainless Steel 2 in x 3 1/2 in x 5/16 in
Baileigh Industrial #SW-621 Specifications
- Zoro #: G3476168
- Mfr #: SW-621
- Promotion Restriction: Not eligible for promotion
- Item: Ironworker
- Max. Force (Tons): 62
- Speed (Strokes/Minute): 28
- Throat Depth (In.): 8 in
- Application: Angle Iron Shearing, Hole Punching, Metal Fabrication, Round Bar Shearing
- Oil Capacity (Gal.): 18.5
- Hz: 60
- Hydraulic Pressure (PSI): 3,500
- Height (In.): 68 in
- Voltage: 220 V
- Length (In.): 45 in
- Width (In.): 30 in
- Features: 5 Station, Electric Stroke Control, Manual Back Gauge, Oversize Tables, Vertical Movement, Waste Bins
- Phase: 1
- Punching Station: Round Punch and Dies Included, Stripper and Punch Retaining Nut
- Motor HP: 5 hp
- Overall Width: 30 in
- Standards: California Proposition 65
- Overall Length: 45 in
- Overall Height: 68 in
- Angle Shear Capacity Aluminum: 4 in x 4 in x 0.375 in
- External Hydraulic Output Force: 62 Tonf
- Punch Dies Included: 7 Round Punch Dies
- Number of Hydraulic Motors: 1
- Square Bar Shear Capacity Aluminum: 1 1/2 in x 1 1/2 in
- Notcher Dies Included: 3/8 in
- Square Bar Shear Capacity Mild Steel: 1 1/2 in x 1 1/2 in
- Angle Shear Capacity Mild Steel: 4 in x 4 in x 0.375 in
- Notcher Capacity Stainless Steel: 2 in x 3 1/2 in x 5/16 in
- Punch Throat Depth: 8 in
- Nominal Voltage: 230V AC
- Notcher Capacity Mild Steel: 2 in x 3.5 in x 0.312 in
- Shear Dies Included: Yes
- Flat Bar Shear Capacity Stainless Steel: 13 in x 0.375 in
- Current: 30 A
- Flat Bar Shear Capacity Mild Steel: 13.5 in x 0.5 in
- Power Source: Corded
- Nominal Voltage + Phase: 230V AC ; Single-Phase
- Number of Stations: 5
- Included Tool Types: Angle Shear, Flat Shear, Pipe Notcher, Punch, Round Shear, Square Shear
- Round Bar Shear Capacity Mild Steel: 1 1/2 in
- Punch Capacity Mild Steel: 1 1/8 in x 3/8 in
- Notcher Capacity Aluminum: 2 in x 3.5 in x 0.312 in
- Flat Bar Shear Capacity Aluminum: 13.5 in x 0.5 in
- Round Bar Shear Capacity Aluminum: 1 1/2 in
- Series: SW
- Horsepower: 5 hp
- Punch Capacity Aluminum: 1 1/8 in x 5/8 in
- Country of Origin (subject to change): Taiwan, Province of China
