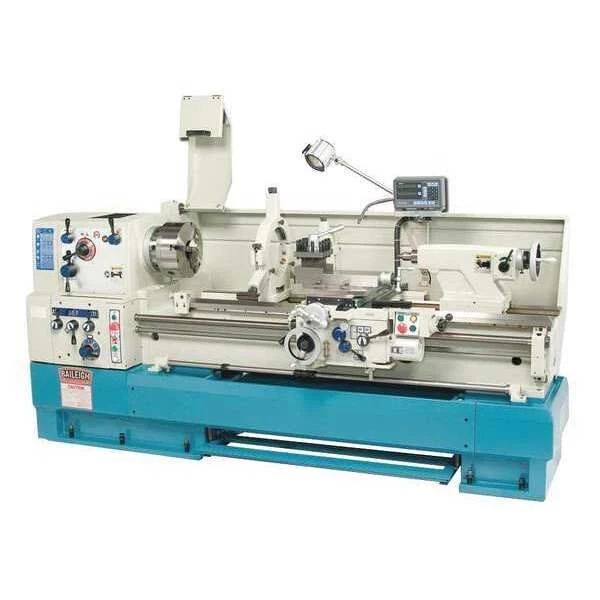

Baileigh Industrial Lathe, 220 Volts, 15 HP, 60 Hz, 3 Phase
Original price was: $486.00.$98.99Current price is: $98.99.
Lathe, Distance Between Centers 60 in, Voltage 220V AC, Horsepower 15 hp, Min. Spindle Speed 20 RPM, Max. Spindle Speed 1,550 RPM, Tailstock Taper MT5
Baileigh Industrial #PL-2060 Specifications
- Zoro #: G3476588
- Mfr #: PL-2060
- Promotion Restriction: Not eligible for promotion
- Item: Lathe
- Motor HP: 15
- Phase: Three
- Voltage: 220V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 20
- Horsepower: 15 hp
- Cross Feed Rates: 50
- Gap Length (In.): 7-1/16
- Tailstock Travel (In.): 6-5/16
- Swing In Gap (In.): 23-3/8
- Thread Range (In.): 2 to 112
- Cross Travel (In.): 12-1/2
- Number of Threads (mm): 60
- Number of Threads (In.): 60
- Tailstock Taper: MT5
- Spindle Speed (RPM): 20 to 1550
- Swing Over Cross Slide (In.): 13
- Thread Range (mm): 0.2 to 14
- Compound Travel (In.): 10
- Number of Spindle Speeds: 12
- Longitudinal Feed Rates: 50
- Hz: 60
- Includes: (3) 8 in Jaw Chucks, 4 Way Quick Change Tool Post, Mitutoyo DRO
- Spindle Bore (In.): 3-1/8
- Distance Between Centers (In.): 60
- Features: Base Made from Cast Iron, Factory-Installed Mitutoyo Digital Readouts, Metric or Standard Threads, Polished Ways Have Integrated Wipers
- Swing Over Bed: 20 in
- Min. Threads per Inch: 2
- Swing In Gap: 23 3/8 in
- Distance Between Centers: 60 in
- Max. Cross Feed: 0.0193 in
- Max. Threads per Inch: 112
- Min. Metric Thread: 0.2 mm
- Gap Length: 7 1/16 in
- Spindle Bore: 3 1/8 in
- Max. Spindle Speed: 1,550 RPM
- Min. Spindle Speed: 20 RPM
- Bed Width: 16 1/8 in
- Number of Inch Threads: 60
- Min. Cross Feed: 0.0007 in
- Number of Metric Threads: 60
- Center Height: 10 in
- Swing Over Cross Slide: 13 in
- Max. Metric Thread: 14 mm
- Country of Origin (subject to change): Taiwan, Province of China
