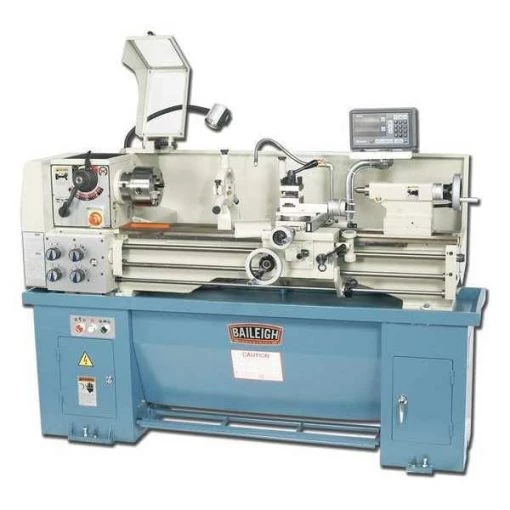

Baileigh Industrial Lathe, 220 Volts, 2 HP, 60 Hz, 1 Phase
Original price was: $437.00.$94.99Current price is: $94.99.
Lathe, Distance Between Centers 40 in, Voltage 220V AC, Horsepower 2 hp, Min. Spindle Speed 70 RPM, Max. Spindle Speed 2,000 RPM, Tailstock Taper MT3
Baileigh Industrial #PL-1340 Specifications
- Zoro #: G3476649
- Mfr #: PL-1340
- Promotion Restriction: Not eligible for promotion
- Item: Lathe
- Motor HP: 2
- Phase: Single
- Voltage: 220V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 13
- Horsepower: 2 hp
- Swing In Gap (In.): 18-3/4
- Number of Spindle Speeds: 8
- Includes: (3) 6 in Jaw Chucks, 4 Way Quick Change Tool Post, Mitutoyo DRO
- Thread Range (mm): 0.4 to 7
- Tailstock Taper: MT3
- Longitudinal Feed Rates: 32
- Hz: 60
- Gap Length (In.): 4-1/2
- Spindle Bore (In.): 1-1/2
- Tailstock Travel (In.): 4-1/2
- Swing Over Cross Slide (In.): 7-51/64
- Number of Threads (In.): 31
- Spindle Speed (RPM): 70 to 2000
- Distance Between Centers (In.): 40
- Number of Threads (mm): 26
- Cross Feed Rates: 32
- Thread Range (In.): 4 to 56
- Features: Best Iron Castings in the Industry, Metric and Standard Threads, Mitutoyo DRO (Digital Readout), Quick-Change 4-Way Tool Post
- Swing Over Cross Slide: 7 51/64 in
- Swing In Gap: 18 3/4 in
- Distance Between Centers: 40 in
- Min. Metric Thread: 0.4 mm
- Max. Metric Thread: 7 mm
- Swing Over Bed: 13 in
- Spindle Bore: 1 1/2 in
- Min. Threads per Inch: 4
- Center Height: 6 1/2 in
- Bed Width: 7 3/8 in
- Number of Metric Threads: 26
- Gap Length: 4 1/2 in
- Max. Threads per Inch: 56
- Max. Spindle Speed: 2,000 RPM
- Number of Inch Threads: 31
- Min. Spindle Speed: 70 RPM
- Country of Origin (subject to change): Taiwan, Province of China
