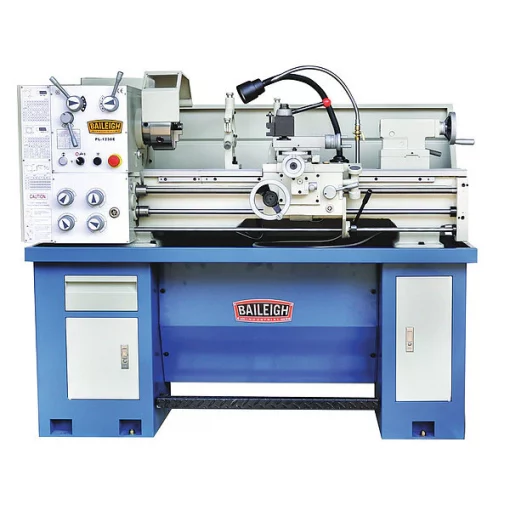

Baileigh Industrial Lathes, 220V Volts, 1 Phase
Original price was: $455.00.$98.99Current price is: $98.99.
Lathes, Distance Between Centers 36 in, Voltage 220V AC, Min. Spindle Speed 70 RPM, Application Schools, Hobbyists, and Maintenance Shops, Max. Spindle Speed 1400 RPM
Baileigh Industrial #PL-1236E-1.0 Specifications
- Zoro #: G3978767
- Mfr #: PL-1236E-1.0
- Promotion Restriction: Not eligible for promotion
- Item: Lathes
- Primary Application: Metal Turning
- Motor HP: 1-1/2
- Phase: Single
- Voltage: 220V AC
- Swing Over Bed (In.): 12
- Cross Feed Rates: 0.007 to 0.018
- Overall Length: 150.00mm
- Distance Between Centers (In.): 36
- Spindle Bore (In.): 1-1/2
- Swing In Gap (In.): 17
- Gap Length (In.): 6
- Features: Economical 4 Corner Insert with a Chip Breaker that Enhances Cutting Performance While Maintaining Rigidity, End Mill and Face Mill Styles, High Feed Design Reduces Radial Cutting Forces and Tool Vibration, Small Cutting Angle Reduces Actual Chip Thickness
- Hz: 60
- Thread Range (In.): 4 to 56
- Swing Over Cross Slide (In.): 7-5/8
- Longitudinal Feed Rates: 0.002 to 0.054
- Number of Spindle Speeds: 9
- Machine Type: Engine lathe
- Min. Cross Feed: 0.007 in/rev
- Min. Metric Thread: 0.40mm
- Swing Over Cross Slide: 7 5/8 in
- Gap Length: 6 in
- Min. Threads per Inch: 4
- Max. Spindle Speed: 1400 RPM
- Distance Between Centers: 36 in
- Min. Spindle Speed: 70 RPM
- Spindle Bore: 1 1/2 in
- Max. Cross Feed: 0.0187 in/rev
- Application: Schools, Hobbyists, and Maintenance Shops
- Bed Width: 7 1/8 in
- Max. Metric Thread: 7.00mm
- Swing Over Bed: 12 in
- Country of Origin (subject to change): China
