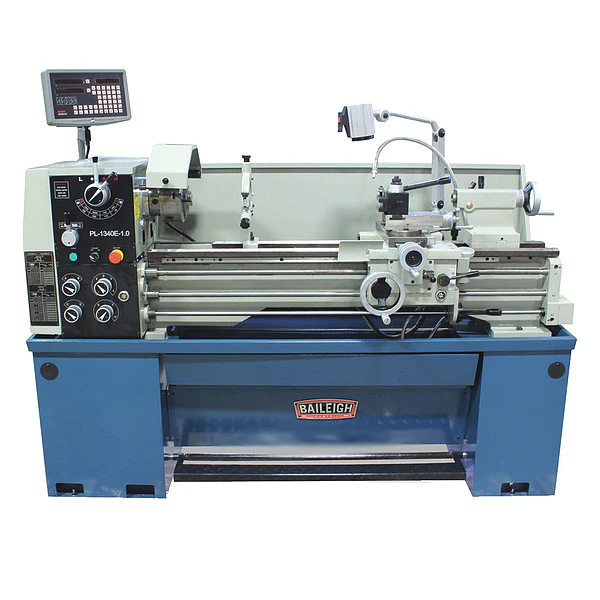

Baileigh Industrial Lathes, 220V Volts, 2 HP HP, 1 Phase
Original price was: $567.00.$98.99Current price is: $98.99.
Lathes, Distance Between Centers 39 3/8 in, Voltage 220V AC, Horsepower 2 HP, Min. Spindle Speed 70 RPM, Application Metal Turning, Max. Spindle Speed 2000 RPM
... people are viewing this right now
Baileigh Industrial #PL-1340E-1.0 Specifications
- Zoro #: G3978645
- Mfr #: PL-1340E-1.0
- Promotion Restriction: Not eligible for promotion
- Item: Lathes
- Primary Application: Metal Turning
- Motor HP: 2
- Phase: Single
- Voltage: 220V AC
- Swing Over Bed (In.): 13
- Horsepower: 2 HP
- Overall Length: 150.00mm
- Hz: 60
- Spindle Bore (In.): 1-1/2
- Swing Over Cross Slide (In.): 7-3/4
- Number of Spindle Speeds: 8
- Gap Length (In.): 5
- Distance Between Centers (In.): 39-3/8
- Thread Range (In.): 4 to 56
- Features: Economical 4 Corner Insert with a Chip Breaker that Enhances Cutting Performance While Maintaining Rigidity, End Mill and Face Mill Styles, High Feed Design Reduces Radial Cutting Forces and Tool Vibration, Small Cutting Angle Reduces Actual Chip Thickness
- Cross Feed Rates: 0.007 to 0.018
- Swing In Gap (In.): 18-3/4
- Longitudinal Feed Rates: 0.002 to 0.054
- Swing Over Cross Slide: 7 3/4 in
- Min. Cross Feed: 0.007 in/rev
- Distance Between Centers: 39 3/8 in
- Machine Type: Engine lathe
- Min. Metric Thread: 0.40mm
- Application: Metal Turning
- Swing Over Bed: 13 in
- Max. Spindle Speed: 2000 RPM
- Spindle Bore: 1 1/2 in
- Max. Cross Feed: 0.0187 in/rev
- Gap Length: 5 in
- Bed Width: 7 3/8 in
- Max. Metric Thread: 7.00mm
- Min. Spindle Speed: 70 RPM
- Min. Threads per Inch: 4
- Country of Origin (subject to change): China
