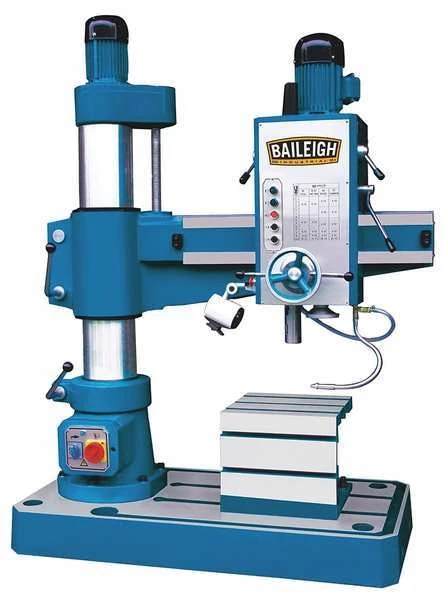

Baileigh Industrial Radial Floor Drill Press, Geared Head Drive, 4 hp, 220 V, 6 Speed
Original price was: $567.00.$96.99Current price is: $96.99.
Radial Floor Drill Press, Primary Material Application Metal, Power Down Feed Included Yes, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Milling, Reaming, Tapping, Speed Control Variable, Speed Adjustment Gear Head, Spindle-to-Column Distance 7 3/4 in to 39 1/4 in, Horsepower 4 hp, Voltage 220V AC, Spindle Taper 4MT, Number of Speeds Variable, Chuck Size 5/8 in, Chuck Style Machine Taper, Guard Included Yes, Coolant System Yes
... people are viewing this right now
Baileigh Industrial #RD-1000M Specifications
- Zoro #: G5211459
- Mfr #: RD-1000M
- Promotion Restriction: Not eligible for promotion
- Item: Radial Floor Drill Press
- Drive Type: Geared Head
- Voltage: 220
- Motor HP: 4 hp
- Chuck Size: 5/8 in
- Number of Speeds: Variable
- Capacity Steel: 1 1/2 in
- Spindle Speed: 71 to 1800 rpm
- Hz: 60
- Column Dia.: 9 13/32 in
- Max. Spindle To Base: 41 13/16 in
- Spindle Taper: 4MT
- Base Size: 29 in x 20 in
- Corded/Cordless: Corded
- Phase: 3
- Amps AC: 11.5
- Overall Depth: 29 1/2 in
- Table Work Surface: 15-45/64 in x 17-45/64 in
- Overall Width: 68 in
- Capacity Cast Iron: 1 1/2 in
- Spindle Travel: 9 13/16 in
- Overall Height: 93 in
- Corded/Banded: Corded
- Spindle to Table: 41 13/16 in
- Power Down Feed Included: Yes
- Spindle Speed Range: 71 RPM – 1,800 RPM
- Spindle-to-Column Distance: 7 3/4 in to 39 1/4 in
- Primary Material Application: Metal
- Speed Control: Variable
- Motor Voltage: 230V AC ; Three-Phase
- Maximum Overall Height: 93 in
- Base Width: 20 in
- Table Length: 15 3/4 in
- Horsepower: 4 hp
- Radial Arm: Yes
- Maximum Spindle-to-Table Height: 41 13/16 in
- Number of Spindle Speeds: Variable
- Drill Press Type: Floor Stand
- Maximum Spindle-to-Base Height: 41 13/16 in
- Number of Pieces: 7
- Drill Press Application: Boring, Countersinking, Drilling, Milling, Reaming, Tapping
- Table Shape: Rectangular
- Guard Included: Yes
- Coolant System: Yes
- Current: 11.5 A
- Chuck Capacity: 5/8 in
- Maximum Spindle Speed: 1,800 RPM
- Table Width: 17 3/4 in
- Drilling Capacity in Cast Iron: 1 1/2 in
- Radial Arm Length: 40 1/8 in
- Minimum Spindle Speed: 71 RPM
- Chuck Style: Machine Taper
- Power Source: Corded
- Nominal Voltage: 230V AC
- Column Diameter: 9 7/16 in
- Base Length: 29 in
- Drilling Capacity in Steel: 1 1/2 in
- Tapping Compatible: Yes
- Speed Adjustment: Gear Head
- Speed Range: 71 to 1,800 RPM
- Table Slot: Yes
- Country of Origin (subject to change): China
