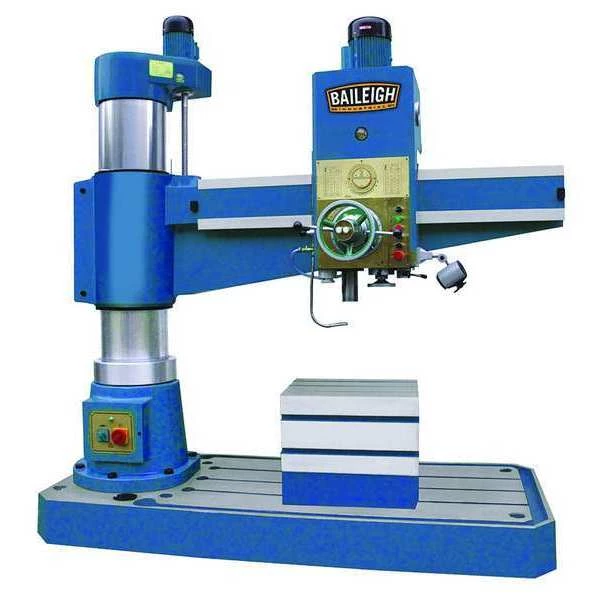

Baileigh Industrial Radial Floor Drill Press, Geared Head Drive, 5 1/4 hp, 220 V, 16 Speed
Original price was: $557.00.$93.99Current price is: $93.99.
Radial Floor Drill Press, Primary Material Application Metal, Power Down Feed Included Yes, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Milling, Reaming, Tapping, Speed Control Variable, Speed Adjustment Gear Head, Spindle-to-Column Distance 13 3/4 in to 63 in, Horsepower 5 1/4 hp, Voltage 220V AC, Spindle Taper 5MT, Number of Speeds Variable, Chuck Size 5/8 in, Chuck Style Machine Taper, Guard Included Yes, Coolant System Yes
... people are viewing this right now
Baileigh Industrial #RD-1600H Specifications
- Zoro #: G5211440
- Mfr #: RD-1600H
- Promotion Restriction: Not eligible for promotion
- Item: Radial Floor Drill Press
- Drive Type: Geared Head
- Voltage: 220
- Motor HP: 5 1/4 hp
- Chuck Size: 5/8 in
- Number of Speeds: Variable
- Capacity Steel: 2 in
- Spindle Speed: 25 to 2000 rpm
- Column Dia.: 13 45/64 in
- Base Size: 94-13/32 in x 39-5/16 in
- Amps AC: 16
- Spindle to Table: 48 in
- Overall Height: 100 in
- Table Work Surface: 24-13/16 in x 19-39/64 in
- Spindle Travel: 12 13/32 in
- Corded/Banded: Corded
- Corded/Cordless: Corded
- Spindle Taper: 5MT
- Phase: 3
- Overall Depth: 44 in
- Max. Spindle To Base: 48 in
- Capacity Cast Iron: 2 in
- Overall Width: 102 3/8 in
- Hz: 60
- Power Down Feed Included: Yes
- Horsepower: 5 1/4 hp
- Maximum Overall Height: 100 in
- Base Width: 39 1/4 in
- Motor Voltage: 230V AC ; Three-Phase
- Drilling Capacity in Cast Iron: 2 in
- Number of Pieces: 1
- Guard Included: Yes
- Primary Material Application: Metal
- Drilling Capacity in Steel: 2 in
- Speed Adjustment: Gear Head
- Coolant System: Yes
- Minimum Spindle Speed: 25 RPM
- Tapping Compatible: Yes
- Spindle-to-Column Distance: 13 3/4 in to 63 in
- Spindle Speed Range: 25 RPM – 2,000 RPM
- Power Source: Corded
- Maximum Spindle Speed: 2,000 RPM
- Drill Press Type: Floor Stand
- Radial Arm: Yes
- Table Slot: Yes
- Speed Range: 25 to 2,000 RPM
- Maximum Spindle-to-Table Height: 48 in
- Table Width: 19 1/2 in
- Number of Spindle Speeds: Variable
- Nominal Voltage: 230V AC
- Column Diameter: 13 11/16 in
- Chuck Style: Machine Taper
- Radial Arm Length: 17 1/8 in
- Base Length: 94 3/8 in
- Speed Control: Variable
- Chuck Capacity: 5/8 in
- Maximum Spindle-to-Base Height: 48 in
- Drill Press Application: Boring, Countersinking, Drilling, Milling, Reaming, Tapping
- Base Height: 7 3/4 in
- Table Shape: Box
- Current: 16 A
- Table Length: 24 3/4 in
- Country of Origin (subject to change): China
