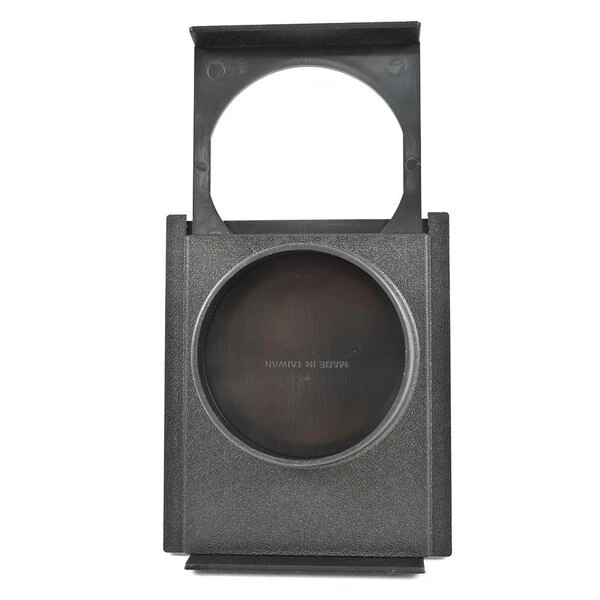

Big Horn 4 Inch Plastic Movable Blast Gate for Dust Collection Systems
Original price was: $12.77.$9.58Current price is: $9.58.
Big Horn Blast Gates optimizes the efficiency of your dust collection system by seamlessly directing the airflow from one machine to another. Save time and hassle with the handy sliding gate; just glide the gate through the case for a thorough cleaning. This blast gate is very economically priced to allow you to outfit your dust collection system for maximum performance. These fittings are abrasion resistant and designed to withstand the abrasive nature of wood chips and saw dust. Due to the potential for built up of static electricity, it is recommended that all dust collection systems with plastic fittings be properly grounded.
Big Horn #11438 Specifications
- Zoro #: G104392343
- Mfr #: 11438
- Material: Plastic
- Color: Black
- Country of Origin (subject to change): Taiwan, Province of China
