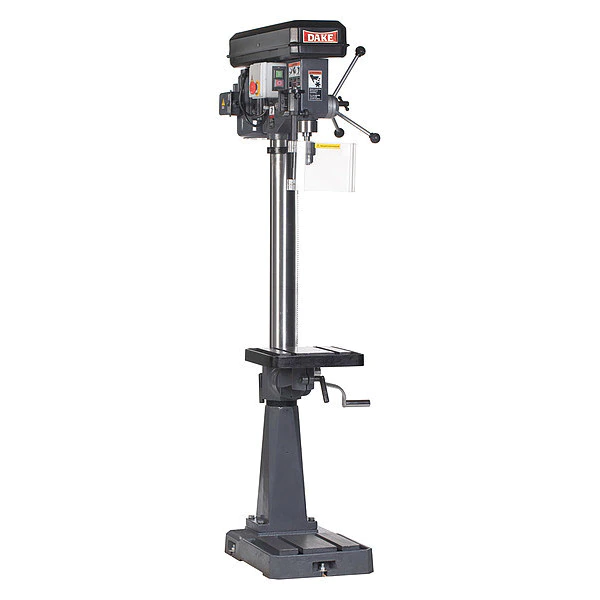

Dake Corporation Floor Drill Press, Belt Drive, 1/2 hp, 120 V, 14 1/8 in Swing, 9 Speed
Original price was: $551.00.$92.99Current price is: $92.99.
General Purpose Drill Presses, Floor Drill Press, Drive Type Belt, Swing 14 1/8 in, Spindle Taper 2MT, Motor HP 1/2 hp, Capacity Steel 5/8 in, Capacity Cast Iron 5/8 in, Drilling Capacity Wood Not Specified, Includes Chuck Guard, Drift, HDPE Chip, Keyed Chuck, Power Down Feed Included No, Voltage 120, Amps AC 7.0, Number of Speeds 9, Chuck Size 1/2 in, Spindle Speed 240 to 3400 rpm, Spindle Travel 3 1/8 in, Base Size 19-5/8 in x 12-1/2 in, Table Work Surface 11-3/4 in x 11-3/4 in, Hz 60, Phase 1
Dake Corporation #977200-1 Specifications
- Zoro #: G2167028
- Mfr #: 977200-1
- Drill Press Product Grouping: General Purpose Drill Presses
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 14 1/8 in
- Voltage: 120
- Motor HP: 1/2 hp
- Chuck Size: 1/2 in
- Number of Speeds: 9
- Capacity Steel: 5/8 in
- Spindle Speed: 240 to 3400 rpm
- Quill Dia.: 2 in
- Includes: Chuck Guard, Drift, HDPE Chip, Keyed Chuck
- Number of T-Slots: 2
- Hz: 60
- Phase: 1
- Corded/Banded: Corded
- Max. Spindle To Base: 49 1/4 in
- Spindle Taper: 2MT
- Overall Height: 64 in
- Overall Width: 12 1/2 in
- Table Slot Size: 5/8 in
- Spindle Travel: 3 1/8 in
- Drilling Capacity Wood: Not Specified
- Power Down Feed Included: No
- Corded/Cordless: Corded
- Base Size: 19-5/8 in x 12-1/2 in
- Spindle to Table: 28 1/2 in
- Table Work Surface: 11-3/4 in x 11-3/4 in
- Amps AC: 7.0
- Column Dia.: 3 1/8 in
- Overall Depth: 19 5/8 in
- Capacity Cast Iron: 5/8 in
- Maximum Spindle Speed: 3,400 RPM
- Base Width: 12 1/2 in
- Cord Length: 70″
- Chuck Capacity: 1/2 in
- Speed Adjustment: Step Pulley
- Table Slot: Yes
- Spindle-to-Column Distance: 7 1/16 in
- Primary Material Application: Metal, Wood
- Motor Voltage: 115V AC ; Single-Phase
- Number of Pieces: 4
- Drilling Capacity in Steel: 5/8 in
- Maximum Overall Height: 64 in
- Drill Press Type: Floor Stand
- Drill Spindle Travel: 3 in – 4 in
- Radial Arm: No
- Speed Control: Fixed
- Spindle Speed Range: 240 RPM – 3,400 RPM
- Drilling Capacity in Cast Iron: 5/8 in
- Power Source: Corded
- Column Diameter: 3 1/8 in
- Minimum Spindle Speed: 240 RPM
- Table Shape: Square
- Coolant System: No
- Quill Diameter: 2 in
- Standards: CE Certified
- Table Width: 11 3/4 in
- Number of Spindle Speeds: Variable
- Table Length: 11 3/4 in
- Tapping Compatible: Yes
- Maximum Spindle-to-Table Height: 28 1/2 in
- Horsepower: 1/2 hp
- Speed Range: 240 to 3,400 RPM
- Drilling Capacity in Wood: 5/8 in
- Guard Included: Yes
- Chuck Style: Keyed
- Drill Press Application: Drilling
- Maximum Spindle-to-Base Height: 49 1/4 in
- Base Height: 19 5/8 in
- Current: 7 A
- Nominal Voltage: 115V AC
- Country of Origin (subject to change): Taiwan, Province of China
