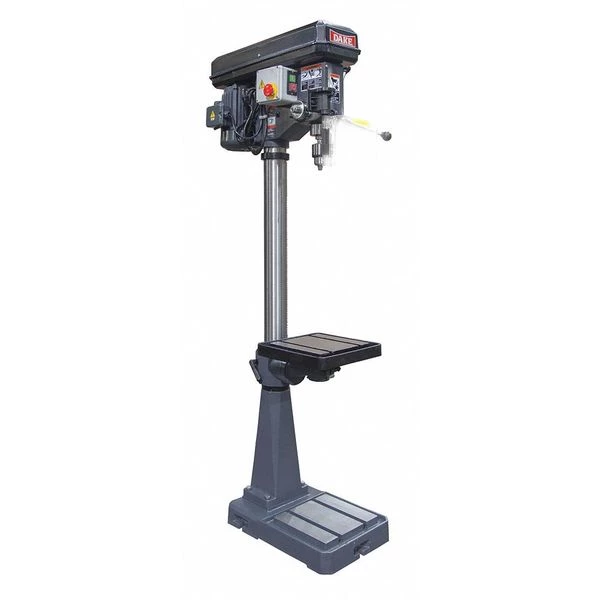

Dake Corporation Floor Drill Press, Belt Drive, 2 hp, 120 V, 18 in Swing, Variable Speed
Original price was: $563.00.$91.99Current price is: $91.99.
General Purpose Drill Presses, Floor Drill Press, Drive Type Belt, Swing 18 in, Spindle Taper 3MT, Motor HP 2 hp, Capacity Steel 1 in, Capacity Cast Iron Not Specified, Drilling Capacity Wood Not Specified, Includes Chuck Guard, Drift, HDPE Chip, Keyed Chuck, Power Down Feed Included No, Voltage 120, Amps AC 20.0, Number of Speeds Variable, Chuck Size 5/8 in, Spindle Speed 36 to 3550 rpm, Spindle Travel 5 in, Base Size 15 in x 23-5/8 in, Table Work Surface 13-3/4 in x 13-3/4 in, Hz 60, Phase 1
Dake Corporation #977600-1V Specifications
- Zoro #: G8626247
- Mfr #: 977600-1V
- Drill Press Product Grouping: General Purpose Drill Presses
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 18 in
- Voltage: 120
- Motor HP: 2 hp
- Chuck Size: 5/8 in
- Number of Speeds: Variable
- Capacity Steel: 1 in
- Spindle Speed: 36 to 3550 rpm
- Capacity Cast Iron: Not Specified
- Max. Spindle To Base: 49 1/4 in
- Amps AC: 20.0
- Includes: Chuck Guard, Drift, HDPE Chip, Keyed Chuck
- Spindle Taper: 3MT
- Corded/Banded: Corded
- Spindle Travel: 5 in
- Base Size: 15 in x 23-5/8 in
- Corded/Cordless: Corded
- Overall Depth: 23 5/8 in
- Spindle to Table: 28 3/8 in
- Phase: 1
- Power Down Feed Included: No
- Quill Dia.: 2 1/2 in
- Number of T-Slots: 2
- Tilting Angle: 180 Degrees
- Overall Width: 15 in
- Table Work Surface: 13-3/4 in x 13-3/4 in
- Drilling Capacity Wood: Not Specified
- Overall Height: 71 in
- Hz: 60
- Column Dia.: 4 in
- Table Slot Size: 5/8 in
- Speed Control: Variable
- Table Slot: Yes
- Table Width: 13 3/4 in
- Base Height: 23 5/8 in
- Chuck Style: Keyed
- Drill Spindle Travel: 5 in – 6 in
- Chuck Capacity: 5/8 in
- Standards: CE Certified
- Speed Range: 46 to 3,550 RPM
- Maximum Spindle Speed: 3,550 RPM
- Primary Material Application: Metal, Wood
- Current: 20 A
- Drill Press Application: Drilling, Tapping
- Drilling Capacity in Wood: 1 in
- Radial Arm: No
- Table Length: 13 3/4 in
- Spindle Speed Range: 46 RPM – 3,550 RPM
- Speed Adjustment: Knob
- Motor Voltage: 115V AC ; Single-Phase
- Power Source: Corded
- Coolant System: No
- Number of Pieces: 4
- Maximum Overall Height: 71 in
- Base Width: 15 in
- Drilling Capacity in Steel: 1 in
- Column Diameter: 3 5/8 in
- Drill Press Type: Floor Stand
- Tapping Compatible: Yes
- Horsepower: 2 hp
- Minimum Spindle Speed: 46 RPM
- Number of Spindle Speeds: Variable
- Table Shape: Square
- Maximum Spindle-to-Table Height: 28 3/8 in
- Guard Included: Yes
- Maximum Spindle-to-Base Height: 50 in
- Quill Diameter: 2 1/2 in
- Spindle-to-Column Distance: 9 in
- Nominal Voltage: 115V AC
- Country of Origin (subject to change): Taiwan, Province of China
