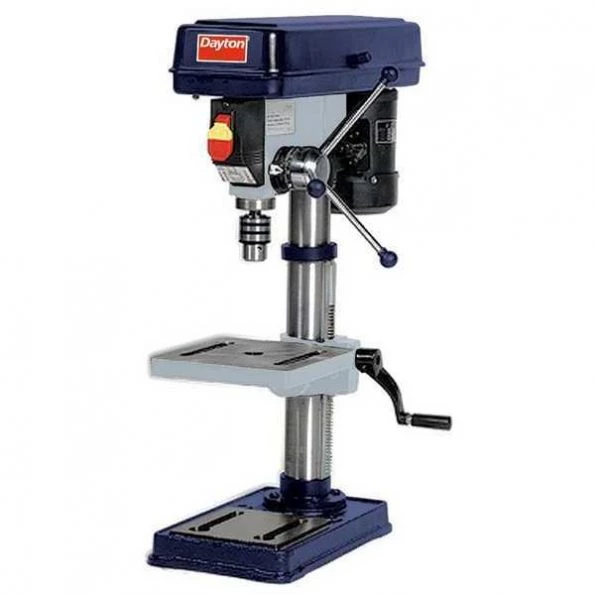

Dayton Bench Drill Press, Belt Drive, 1/3 hp, 120 V, 10 in Swing, 5 Speed
Original price was: $338.46.$98.99Current price is: $98.99.
General Purpose Drill Presses, Bench Drill Press, Drive Type Belt, Swing 10 in, Spindle Taper 33JT, Motor HP 1/3 hp, Capacity Steel 3/8 in, Capacity Cast Iron 1/2 in, Drilling Capacity Wood Not Specified, Includes Arbor, Chuck, Paddle Switch, Spindle Depth Stop, Tilting Table, Power Down Feed Included No, Voltage 120, Amps AC 4.1, Number of Speeds 5, Chuck Size 1/2 in, Spindle Speed 650 to 3070 rpm, Spindle Travel 2 1/2 in, Base Size 8-1/4 in x 13-1/2 in
Dayton #16N196 Specifications
- Zoro #: G4920921
- Mfr #: 16N196
- Drill Press Product Grouping: General Purpose Drill Presses
- Item: Bench Drill Press
- Drive Type: Belt
- Swing: 10 in
- Voltage: 120
- Motor HP: 1/3 hp
- Chuck Size: 1/2 in
- Number of Speeds: 5
- Capacity Steel: 3/8 in
- Spindle Speed: 650 to 3070 rpm
- Corded/Cordless: Corded
- Tilting Angle: 45 Degrees
- Capacity Cast Iron: 1/2 in
- Power Down Feed Included: No
- Phase: 1
- Quill Dia.: 1 1/2 in
- Overall Depth: 19 1/4 in
- Includes: Arbor, Chuck, Paddle Switch, Spindle Depth Stop, Tilting Table
- Max. Spindle To Base: 15 13/16 in
- Table Slot Size: 9/16 in
- Corded/Banded: Corded
- Hz: 60
- Table Work Surface: 7-13/16 in x 7-13/16 in
- Amps AC: 4.1
- Spindle Travel: 2 1/2 in
- Drilling Capacity Wood: Not Specified
- Overall Height: 27 1/2 in
- Column Dia.: 2 9/32 in
- Spindle to Table: 10 3/4 in
- Overall Width: 11 1/4 in
- Base Size: 8-1/4 in x 13-1/2 in
- Spindle Taper: 33JT
- Number of T-Slots: 0
- Overall Length: 19 1/4 in
- Table Shape: Square
- Minimum Spindle Speed: 650 RPM
- Maximum Spindle-to-Base Height: 15 13/16 in
- Cord Length: 6′
- Speed Adjustment: Step Pulley
- Quill Diameter: 1 1/2 in
- Downfeed Type: Manual
- Drilling Capacity in Cast Iron: 1/2 in
- Maximum Spindle-to-Table Height: 10 3/4 in
- Drill Press Type: Benchtop
- Speed Control – Merch: Fixed Speed
- Table Tilt: 45 Degrees Left and Right
- Guard Included: No
- Power Source: Corded
- Number of Spindle Speeds: 5
- Drill Press Application: Countersinking, Drilling, Reaming
- Coolant System: No
- Primary Material Application: Metal, Wood
- Speed Range: 650 to 3,070 RPM
- Spindle-to-Column Distance: 5 in
- Chuck Style: Keyed
- Drilling Capacity in Steel: 3/8 in
- Column Diameter: 2 5/16 in
- Speed Control: Fixed
- Horsepower: 1/3 hp
- Table Slot: Yes
- Base Width: 13 1/2 in
- Table Length: 7 7/8 in
- Motor Voltage: 115V AC ; Single-Phase
- Nominal Voltage: 115V AC
- Table Width: 7 7/8 in
- Current: 4.1 A
- Maximum Spindle Speed: 3,070 RPM
- Radial Arm: No
- Table Slot Width: 9/16 in
- Base Length: 8 1/4 in
- Maximum Overall Height: 27 1/2 in
- Spindle Speed Range: 650 RPM – 3,070 RPM
- Country of Origin (subject to change): China
