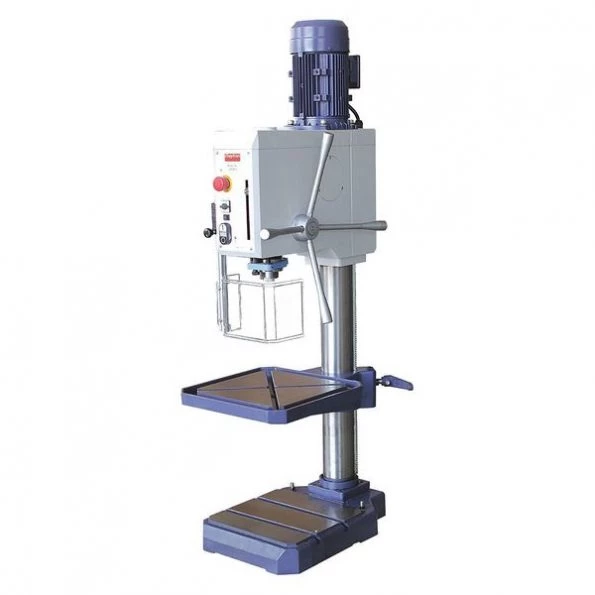

Dayton Bench Drill Press, Geared Head Drive, 2 hp, 240 V, 18 in Swing, 8 Speed
Original price was: $536.00.$92.99Current price is: $92.99.
Production Drill Presses, Bench Drill Press, Drive Type Geared Head, Swing 18 in, Spindle Taper 3MT, Motor HP 2 hp, Capacity Steel 1 in, Capacity Cast Iron 1 in, Drilling Capacity Wood Not Specified, Includes Chuck Guard, Power Down Feed Included No, Voltage 240, Amps AC 10.0, Number of Speeds 8, Chuck Size 5/8 in, Spindle Speed 90 to 3480 rpm, Spindle Travel 5 in, Base Size 12-3/4 in x 13-3/4 in, Table Work Surface 12-29/32 in x 12-29/32 in, Hz 60, Phase 3, Number of T-Slots 2
Dayton #53UH01 Specifications
- Zoro #: G9189096
- Mfr #: 53UH01
- Item: Bench Drill Press
- Drive Type: Geared Head
- Swing: 18 in
- Voltage: 240
- Motor HP: 2 hp
- Chuck Size: 5/8 in
- Number of Speeds: 8
- Capacity Steel: 1 in
- Spindle Speed: 90 to 3480 rpm
- Spindle to Table: 17 3/4 in
- Drilling Capacity Wood: Not Specified
- Max. Spindle To Base: 24 in
- Corded/Banded: Corded
- Capacity Cast Iron: 1 in
- Number of T-Slots: 2
- Overall Width: 17 in
- Hz: 60
- Power Down Feed Included: No
- Spindle Taper: 3MT
- Overall Height: 51 in
- Overall Depth: 23 in
- Table Slot Size: 1/2 in
- Base Size: 12-3/4 in x 13-3/4 in
- Amps AC: 10.0
- Phase: 3
- Includes: Chuck Guard
- Column Dia.: 3 3/8 in
- Tilting Angle: Non-Tilting
- Spindle Travel: 5 in
- Table Work Surface: 12-29/32 in x 12-29/32 in
- Corded/Cordless: Corded
- Quill Dia.: 2 in
- Minimum Spindle Speed: 90 RPM
- Maximum Spindle Speed: 3,480 RPM
- Nominal Voltage: 230V AC
- Table Shape: Square
- Table Slot Width: 1/2 in
- Speed Control: Fixed
- Maximum Spindle-to-Base Height: 24 in
- Spindle Speed Range: 90 RPM – 3,480 RPM
- Drill Press Application: Boring, Countersinking, Drilling, Reaming, Tapping
- Drilling Capacity in Steel: 1 in
- Table Length: 12 7/8 in
- Horsepower: 2 hp
- Coolant System: No
- Downfeed Type: Manual
- Table Width: 12 7/8 in
- Table Slot: Yes
- Power Source: Corded
- Speed Control – Merch: Fixed Speed
- Drill Press Type: Benchtop
- Number of Spindle Speeds: 8
- Quill Diameter: 2 in
- Column Diameter: 3 3/8 in
- Current: 10 A
- Overall Length: 23 in
- Motor Voltage: 230V AC ; Three-Phase
- Base Width: 13 3/4 in
- Primary Material Application: Metal
- Base Length: 12 3/4 in
- Maximum Spindle-to-Table Height: 17 3/4 in
- Speed Adjustment: Knob
- Speed Range: 90 to 3,480 RPM
- Maximum Overall Height: 51 in
- Guard Included: Yes
- Spindle-to-Column Distance: 9 in
- Drilling Capacity in Cast Iron: 1 in
- Country of Origin (subject to change): China
