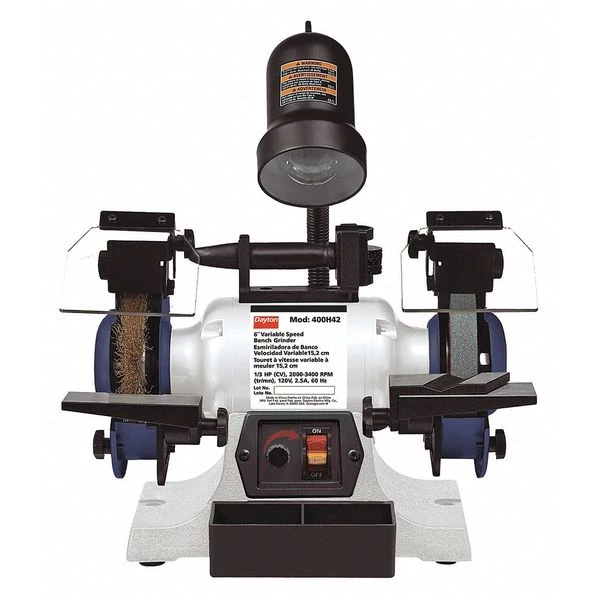

Dayton Bench Grinder, 6 in Max. Wheel Dia, 60 Grinding Wheel Grit
Original price was: $225.61.$95.99Current price is: $95.99.
Bench Grinder, For Max. Wheel Dia. 6 in, Grinding Wheel Grit 60, Arbor Size 1/2 in, Dust Management No Dust Management, Lights Included Yes, Application Grinding
Dayton #400H42 Specifications
- Zoro #: G2757629
- Mfr #: 400H42
- Item: Bench Grinder
- For Max. Wheel Dia.: 6 in
- Finishing Wheel Width: 3/4″
- Finishing Function: Grinding
- Max. RPM: 3400
- Phase: 1
- Arbor Hole Size: 1/2″
- Amps: 2.5
- Standards: CSA Certified
- Grinding Wheel Grit: 60
- Voltage: 120V
- HP: 1/3
- Wheels Center-Center: 10-3/4″
- Grit: 60
- Light: Yes
- Overall Length: 15 1/2 in
- Finishing Wheel Diameter: 6″
- Hz: 60
- Dust Collection: No
- Wheel Material: Aluminum Oxide, Bent Wire
- Overall Height: 17 1/2 in
- Includes: 40W Work Light, Eye Shield, Grinding Wheel, Quench Tray, Spark Arrestor, Tool Rest, Wheel Dresser, Wire Wheel
- Arbor Size: 1/2 in
- Frequency: 60 Hz
- Lights Included: Yes
- Horsepower: 1/3
- Wheel Distance: 10 3/4 in
- Dust Management: No Dust Management
- Current: 2.5A
- Max. Wheel Speed: 3,400 RPM
- Application: Grinding
- Country of Origin (subject to change): China
