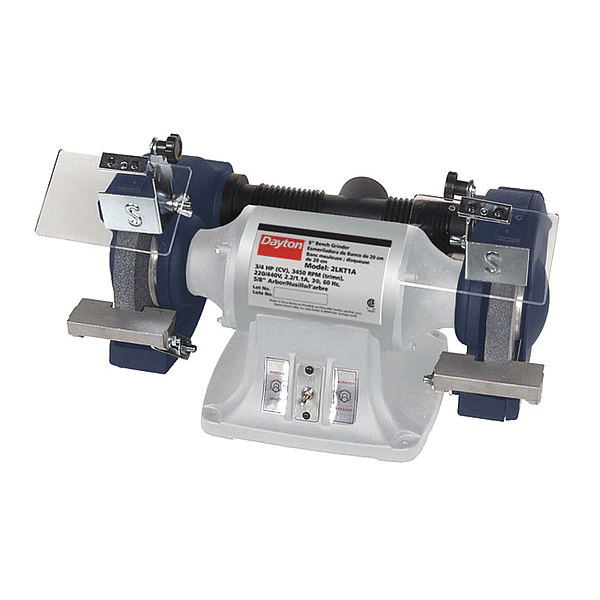

Dayton Bench Grinder, 8 in Max. Wheel Dia, 3/4 in Max. Wheel Thickness, 36/60 Grinding Wheel Grit
Original price was: $416.00.$95.99Current price is: $95.99.
Bench Grinder, For Max. Wheel Dia. 8 in, For Max. Wheel Thickness 1 in, Grinding Wheel Grit 36/60, Speed Setting Single Speed, Arbor Size 5/8 in, Dust Management Dust Management Included, Lights Included No, Application Construction and Maintenance, Deburring, Grinding, Industrial Use, Sharpening, Bearing Type Ball Bearing
Dayton #2LKT1 Specifications
- Zoro #: G3472786
- Mfr #: 2LKT1
- Item: Bench Grinder
- For Max. Wheel Dia.: 8 in
- Finishing Wheel Width: 1″
- Finishing Function: Grinding
- Max. RPM: 3450
- Phase: 3
- Arbor Hole Size: 5/8″
- Amps: 2.2/1.1
- Standards: CSA Certified
- For Max. Wheel Thickness: 1 in
- Grinding Wheel Grit: 36/60
- Voltage: 220/440V
- HP: 3/4
- Exhaust Port Size: 2-1/2″
- No Load RPM: 3450
- Arbor Size: 5/8 in
- Grit: 36 and 60
- Overall Length: 12 in
- Includes: (2) Adjustable Eye Shields with Hurricane Bolts, (2) Grinding Wheels, (2) Ratcheting Tool Rests, (2) Spark Arrestors, 6 ft Cord, Dust Collection Hose Assembly, Toggle Switch
- Wheel Material: Aluminum Oxide
- Finishing Wheel Diameter: 8″
- Wheel Width: 1″
- Wheel Dia.: 8″
- Wheels Center-Center: 16-13/64″
- Hz: 60
- Overall Height: 15 in
- Light: No
- Dust Collection: Yes
- Features: Adjustable Eyeshields, Adjustable Spark Arrestors, Adjustable Tool Rests, Dust Collection Hose Assembly, Includes Locking Toggle Switch
- Overall Width: 20 9/16 in
- Application: Construction and Maintenance, Deburring, Grinding, Industrial Use, Sharpening
- Speed Setting: Single Speed
- Tool Weight: 60 lb
- Cord Length: 6 ft
- Dust Sealed Switch: No
- Wheel Distance: 15 3/8 in
- Horsepower: 3/4
- Number of Speed Settings: 1
- Plug Type: Wire Leads
- Electrical Protection: Grounded
- Max. Wheel Speed: 3,450 RPM
- Housing Material: Aluminum, Steel
- For Use On: Alloy and Carbon Metals
- Min. Wheel Speed: 3,450 RPM
- Dust Collection Port Size: 2 1/2 in
- Current: 2.2/1.1A
- Lights Included: No
- Frequency: 60 Hz
- Bearing Type: Ball Bearing
- Electrical Connection: Wire Lead
- Switch Type: Toggle
- Spindle Thread Size: M16x1.5
- Dust Management: Dust Management Included
- Number of Pieces: 1
- Duty: Heavy Duty
- Max. Disc Speed: 3,450 RPM
- Country of Origin (subject to change): China
