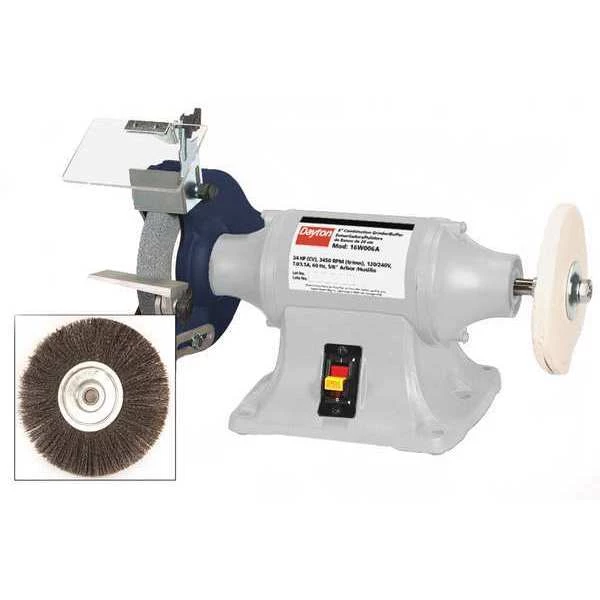

Dayton Bench Grinder, 8 in Max. Wheel Dia, 3/4 in Max. Wheel Thickness, 36 Grinding Wheel Grit
Original price was: $317.72.$94.99Current price is: $94.99.
Bench Grinder, For Max. Wheel Dia. 8 in, For Max. Wheel Thickness 1 in, Grinding Wheel Grit 36, Speed Setting Single Speed, Arbor Size 5/8 in, Dust Management Dust Management Included, Lights Included No, Application Construction and Maintenance, Deburring, Grinding, Industrial Use, Sharpening, Bearing Type Ball Bearing
Dayton #16W006 Specifications
- Zoro #: G4792995
- Mfr #: 16W006
- Item: Bench Grinder
- For Max. Wheel Dia.: 8 in
- Finishing Wheel Width: 1″
- Finishing Function: Buffing, Grinding
- Max. RPM: 3450
- Phase: 1
- Arbor Hole Size: 5/8″
- Amps: 7.0/3.5
- Standards: CSA Certified
- For Max. Wheel Thickness: 1 in
- Grinding Wheel Grit: 36
- Voltage: 120/240V
- HP: 3/4
- Includes: 0.014 in Wire Wheel, 36 Grit Grinding Wheel, Wheel Guard
- Hz: 60
- Grit: 36
- Wheel Material: Aluminum Oxide/Cotton
- Overall Length: 12 in
- Light: No
- No Load RPM: 3450
- Arbor Size: 5/8 in
- Finishing Wheel Diameter: 8″
- Wheel Dia.: 8″
- Wheels Center-Center: 18-3/4″
- Exhaust Port Size: 2-1/2″
- Dust Collection: Yes
- Overall Height: 15 3/32 in
- Wheel Width: 1″
- Features: Includes Wire Wheel
- Overall Width: 21 1/4 in
- Wheel Distance: 16 3/4 in
- Cord Length: 6 ft
- Max. Disc Speed: 3,450 RPM
- Min. Wheel Speed: 3,450 RPM
- Horsepower: 3/4
- Plug Type: 3-Prong
- Duty: Heavy Duty
- Spindle Thread Size: M16x1.5
- Electrical Connection: Cord with Plug
- Max. Wheel Speed: 3,450 RPM
- Electrical Protection: Grounded
- Application: Construction and Maintenance, Deburring, Grinding, Industrial Use, Sharpening
- For Use On: Alloy and Carbon Metals
- Dust Collection Port Size: 2 1/2 in
- Current: 7.0/3.5A
- Frequency: 60 Hz
- Switch Type: Locking Rocker
- Tool Weight: 46.15 lb
- Speed Setting: Single Speed
- Housing Material: Aluminum, Steel
- Bearing Type: Ball Bearing
- Dust Sealed Switch: No
- Dust Management: Dust Management Included
- Number of Speed Settings: 1
- Number of Pieces: 1
- Lights Included: No
- Country of Origin (subject to change): China
