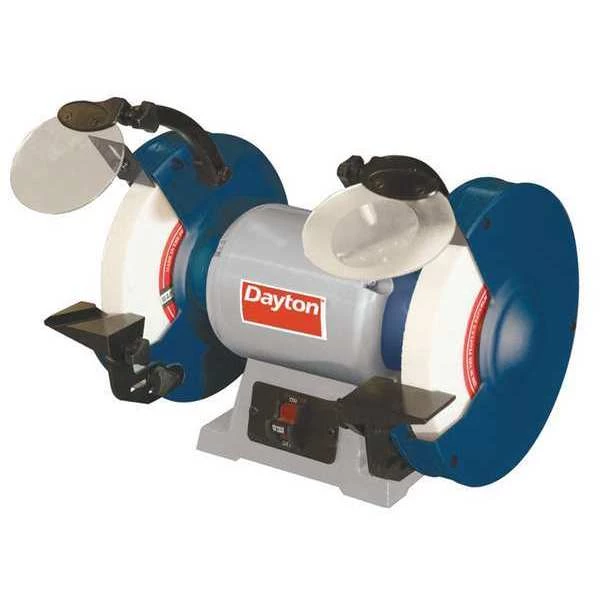

Dayton Bench Grinder, 8 in Max. Wheel Dia, 3/4 in Max. Wheel Thickness, 60/120 Grinding Wheel Grit
Original price was: $283.32.$92.99Current price is: $92.99.
Bench Grinder, For Max. Wheel Dia. 8 in, For Max. Wheel Thickness 1 in, Grinding Wheel Grit 60/120, Speed Setting Single Speed, Arbor Size 5/8 in, Dust Management No Dust Management, Lights Included No, Application Construction and Maintenance, Deburring, Grinding, Industrial Use, Sharpening, Bearing Type Ball Bearing
Dayton #49H004 Specifications
- Zoro #: G9047561
- Mfr #: 49H004
- Item: Bench Grinder
- For Max. Wheel Dia.: 8 in
- Finishing Wheel Width: 1″
- Finishing Function: Grinding
- Max. RPM: 1725
- Phase: 1
- Arbor Hole Size: 5/8″
- Amps: 3.0
- Standards: –
- For Max. Wheel Thickness: 1 in
- Grinding Wheel Grit: 60/120
- Voltage: 120V
- HP: 1/3
- Exhaust Port Size: 1-1/2″
- Wheels Center-Center: 11-1/2″
- Light: No
- Wheel Material: Aluminum Oxide
- Wheel Width: 1″
- Dust Collection: No
- Hz: 60
- Grit: 60 and 120
- Overall Length: 11 in
- Overall Height: 8 7/8 in
- No Load RPM: 1725
- Wheel Dia.: 8″
- Finishing Wheel Diameter: 8″
- Arbor Size: 5/8 in
- Includes: (2) Adjustable Tool Rests, (2) Eye Shields, (2) Grinding Wheels: 60 and 120 Grit, (2) Quick Adjusting Spark Guards, Locking Rocker Switch
- Features: 60 and 120 Grit Wheels, Slow Speed
- Overall Width: 17 1/4 in
- Cord Length: 6 ft
- Wheel Distance: 11 1/2 in
- Switch Type: Locking Rocker
- Spindle Thread Size: M16x1.5
- Bearing Type: Ball Bearing
- Electrical Protection: Grounded
- Max. Disc Speed: 1,725 RPM
- Housing Material: Aluminum, Steel
- For Use On: Alloy and Carbon Metals
- Lights Included: No
- Tool Weight: 36 lb
- Dust Collection Port Size: 1 1/2 in
- Application: Construction and Maintenance, Deburring, Grinding, Industrial Use, Sharpening
- Electrical Connection: Cord with Plug
- Frequency: 60 Hz
- Number of Speed Settings: 1
- Dust Sealed Switch: No
- Duty: Medium Duty
- Current: 3A
- Min. Wheel Speed: 1,725 RPM
- Dust Management: No Dust Management
- Max. Wheel Speed: 1,725 RPM
- Speed Setting: Single Speed
- Number of Pieces: 1
- Horsepower: 1/3
- Plug Type: 3-Prong
- Country of Origin (subject to change): China
