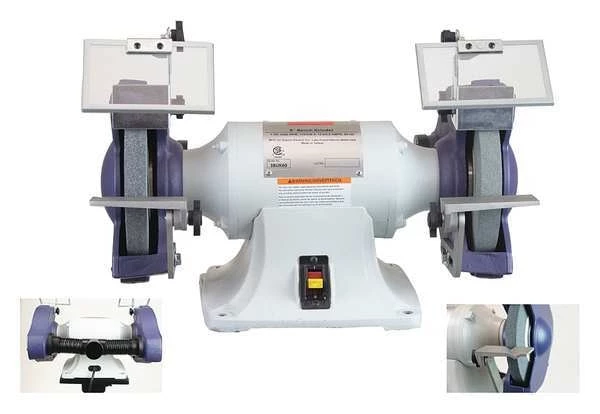

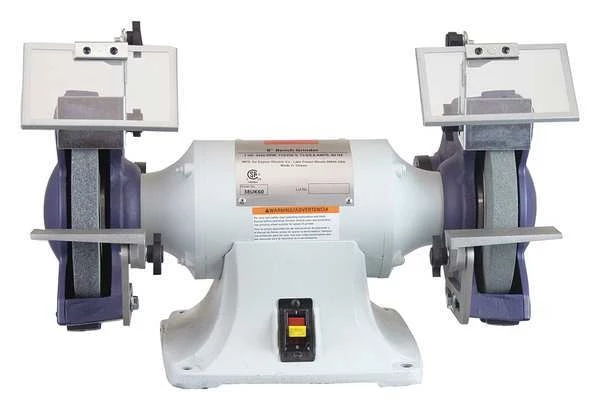

Dayton Bench Grinder, 8 in Max. Wheel Dia, 36/60 Grinding Wheel Grit
Original price was: $591.00.$98.99Current price is: $98.99.
The Dayton Heavy-Duty Bench Grinder is built for heavy-duty grinding. The 1 HP motor allows for fast grinding, while the convenient light allows you to work in low-light areas. The grinder is OSHA compliant and CSA certified. It features a ball bearing construction that keeps the grinder running smoothly. It also has a convenient dust collection system to keep your work area clean.
Dayton #38UK60 Specifications
- Zoro #: G0316946
- Mfr #: 38UK60
- Item: Bench Grinder
- For Max. Wheel Dia.: 8 in
- Finishing Wheel Width: 1″
- Finishing Function: Grinding
- Max. RPM: 3450
- Phase: 1
- Arbor Hole Size: 5/8″
- Amps: 13.6/6.8
- Standards: CSA Certified, OSHA Compliant
- Grinding Wheel Grit: 36/60
- Voltage: 115V
- HP: 1
- Arbor Size: 5/8 in
- Wheel Material: Aluminum Oxide
- No Load RPM: 3450
- Wheel Dia.: 8″
- Hz: 60
- Overall Height: 12 1/2 in
- Includes: (2) Grinding Wheels, (3) Tools Rests: (2) Standard Flat Top and a V-Grooved Top for Drill Bit Sharpening, Wheel Dresser
- Dust Collection: Yes
- Wheel Width: 1″
- Overall Length: 18 in
- Grit: 36 and 120
- Finishing Wheel Diameter: 8″
- Light: Yes
- Wheels Center-Center: 16-1/2″
- Exhaust Port Size: 2″
- Dust Collection Port Size: 2 1/2 in
- Duty: Heavy Duty
- Bearing Type: Ball Bearing
- Lights Included: No
- Current: 13.6/6.8A
- Wheel Distance: 16 1/2 in
- Horsepower: 1 HP
- Max. Wheel Speed: 3,450 RPM
- Application: Grinding
- Frequency: 60 Hz
- Dust Management: Dust Management Included
- Country of Origin (subject to change): Taiwan, Province of China
