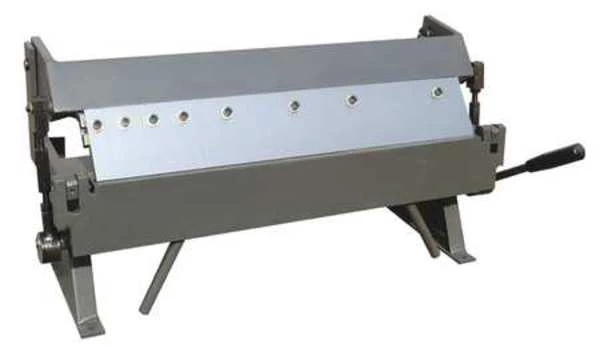

Dayton Brake, Bench, 48-1/4 In
Original price was: $579.00.$95.99Current price is: $95.99.
Sheet Metal Brake, Brake Type Box and Pan, Actuation Hand Lever, Sheet Capacity Aluminum 12 ga, Sheet Metal Capacity Mild Steel 16 ga, Sheet Metal Capacity Stainless Steel 22 ga, Maximum Bend Angle 135 Degrees , Angle Gauge No, Finger Style Top Edge, Finger Width 2 in, 3 in, 4 in
Dayton #13W876 Specifications
- Zoro #: G4326655
- Mfr #: 13W876
- Item: Sheet Metal Brake
- Bending Length (In.): 48.25 in
- Capacity of Mild Steel (Gauge): 16
- Construction: Body Made From Welded Steel Plates With Heavy Truss Rods
- Finger Width (In.): 2 in, 3 in, 4 in
- Die: Carbon Steel, Heat-treated Steel Male, Sizes 2, 3, And 4.
- Features: For Box, Pan, And Reverse Bending Of Sheet Metal,extension Handles, Cast-iron Counter Weights, Apron Stop And Replaceable Bushings
- Max. Lift of Beam (In.): 1 1/4 in
- Max. Box Depth (In.): 4 in
- Color: Gray
- Material: Steel
- Actuation + Finger Style: Hand Lever : Top Edge
- Angle Gauge: No
- Sheet Metal Capacity Stainless Steel: 22 ga
- Sheet Metal Capacity Mild Steel: 16 ga
- Actuation: Hand Lever
- Maximum Box Depth: 4 in
- Brake Type: Box and Pan
- Maximum Bend Angle: 135 Degrees
- Finger Style: Top Edge
- Finger Width: 2 in, 3 in, 4 in
- Bending Length: 30 1/4 in
- Power Source: Manual
- Sheet Capacity Aluminum: 12 ga
- Maximum Lift of Beam: 1 1/4 in
- Country of Origin (subject to change): China
