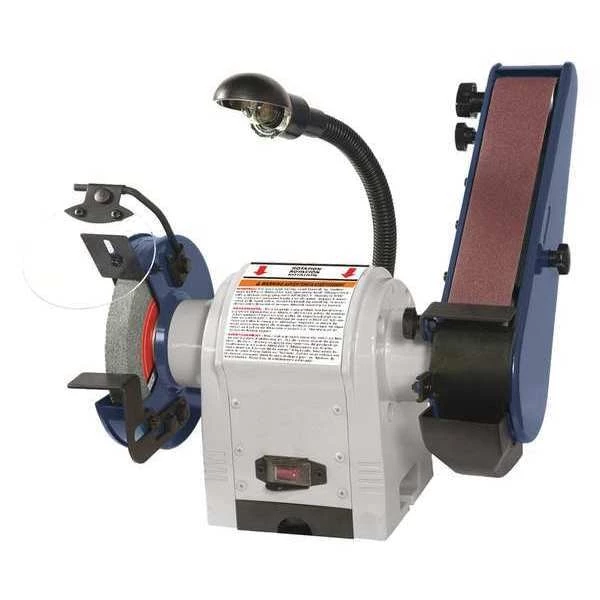

Dayton Combination Belt and Bench Grinder, 6 in Max. Wheel Dia, 5/8 in Max. Wheel Thickness
Original price was: $233.38.$94.99Current price is: $94.99.
Combination Belt and Bench Grinder, Speed Setting Single Speed, For Max. Wheel Dia. 6 in, Grinding Wheel Grit 60, Belt Length 27 in, Horsepower 1/4, Dust Management No Dust Management, Lights Included Yes, Overall Length 11 in, Overall Width 15 in, Overall Height 14 in
Dayton #49H006 Specifications
- Zoro #: G8529787
- Mfr #: 49H006
- Item: Combination Belt and Bench Grinder
- For Max. Wheel Dia.: 6 in
- Belt SFPM: 3240
- Max. RPM: 3450
- Phase: 1
- Standards: CE
- For Max. Wheel Thickness: 5/8 in
- Grinding Wheel Grit: 60
- Belt Size (In.): 2 x 27
- Voltage: 120V
- HP: 1/4
- Corded/Cordless: Corded
- Disc Dia. (In.): 6
- Agency Compliance: CE
- Arbor Hole (In.): 1/2
- Includes: Eye Shield, Grinding Wheel, Grinding Wheel Dresser, Abrasive Belt, Tool Rest, Spark Deflector, Work Light, Workpiece Cooling Tray
- Belt Table Tilt Angle (Deg.): 0 to 45
- Overall Depth (In.): 11
- Overall Height (In.): 14
- Features: Flexible Work Light, Adjustable Tool Rests, Eye Shield and Spark Arrestor, Simple Thumb Knob Adjustment for Belt Tracking
- Overall Width (In.): 15
- Table Material: Steel
- Dust Collection Port Size (In.): 1-1/4
- Disc Table Size (In.): N/A
- Disc Speed (RPM): 3600
- Amps AC: 2.5
- Hz: 60
- Table Work Surface (In.): N/A
- Corded/Banded: Corded
- Idler Drum Size (In.): 2 x 1-1/4
- Wheel Dia. (In.): 6
- Arbor Size: 1/2 in
- Overall Length: 11 in
- Overall Height: 14 in
- Overall Width: 15 in
- Speed Setting: Single Speed
- Max. Belt Speed: 3,240 fpm
- Belt Table Size: 3 in x 1-1/2 in
- Tool Weight: 20 lb
- Current: 2.5A
- Lights Included: Yes
- Wattage: 190 W
- Min. Wheel Speed: 3,600 RPM
- Max. Wheel Speed: 3,600 RPM
- Min. Belt Width: 2 in
- Application: Deburring, Grinding, Paint Removal, Sanding, Sharpening
- Min. Belt Speed: 3,240 fpm
- Cord Length: 72 in
- Plug Type: 3-Prong Grounded
- Idler Drum Size: 2 in Diameter
- Min. Disc Speed: 3,600 RPM
- Belt Table Angle Setting: 0 Degrees to 45 Degrees
- Belt Orientation: 60 Degrees
- Frequency: 60 Hz
- Max. Belt Width: 2 in
- Bearing Type: Ball Bearing
- Switch Type: Rocker
- Disc Table Size: 2 in x 1-1/2 in
- Dust Management: No Dust Management
- Number of Speed Settings: 1
- Belt Table Tilting Angle: 0 Degrees to 45 Degrees
- Horsepower: 1/4
- Spindle Thread Size: M10x1.5
- Max. Disc Speed: 3,600 RPM
- Housing Material: Stamped Steel
- For Use On: Metal or Wood
- Electrical Protection: Grounded
- Belt Length: 27 in
- Disc Table Material: Stamped Steel
- Duty: Intermittent Duty
- Belt Table Material: Steel
- Number of Pieces: 6
- Disc Table Angle Setting: 90 Degrees
- Electrical Connection: Cord
- Dust Collection Port Size: 1-1/4 in
- Dust Sealed Switch: No
- Disc Table Tilting Angle: 0 Degrees
- Country of Origin (subject to change): China
