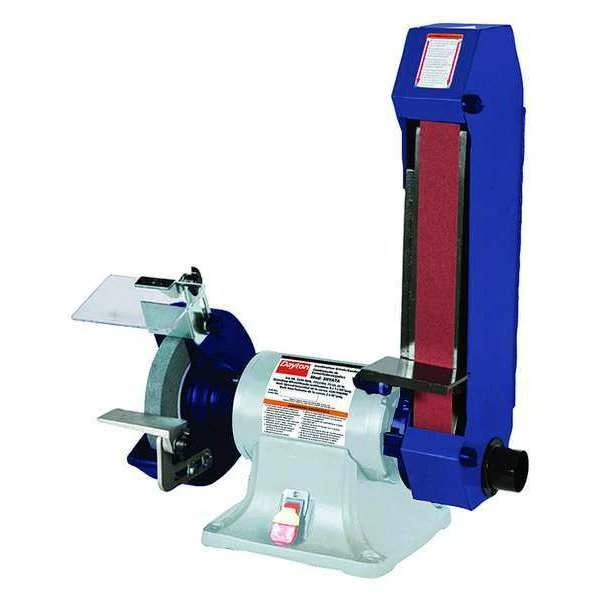

Dayton Combination Belt and Bench Grinder, 8 in Max. Wheel Dia, 3/4 in Max. Wheel Thickness
Original price was: $522.00.$96.99Current price is: $96.99.
Combination Belt and Bench Grinder, Speed Setting Single Speed, For Max. Wheel Dia. 8 in, Grinding Wheel Grit 60, Belt Length 48 in, Horsepower 3/4, Dust Management Dust Port on Wheel Guard and Belt Guard, Lights Included No, Overall Length 14 in, Overall Width 20 in, Overall Height 25 1/2 in
Dayton #3NYA7 Specifications
- Zoro #: G2181995
- Mfr #: 3NYA7
- Item: Combination Belt and Bench Grinder
- For Max. Wheel Dia.: 8 in
- Belt SFPM: 4500
- Max. RPM: 3450
- Phase: 1
- Standards: CSA Certified
- For Max. Wheel Thickness: 3/4 in
- Grinding Wheel Grit: 60
- Belt Size (In.): 2 x 48
- Voltage: 115/230V
- HP: 3/4
- Corded/Cordless: Corded
- Disc Table Tilt-In Angle (Deg.): –
- Overall Depth (In.): 14
- Overall Width (In.): 20
- Corded/Banded: Corded
- Agency Compliance: CSA
- Belt Table Tilt Angle (Deg.): 0 to 60
- Table Work Surface (In.): 2-3/4 x 4-1/4
- Dust Collection Port Size (In.): 2
- Hz: 60
- Amps AC: 7.0/3.5
- Arbor Hole (In.): 5/8
- Disc Table Tilt-Out Angle (Deg.): –
- Disc Speed (RPM): 3450
- Disc Table Size (In.): N/A
- Idler Drum Size (In.): 2×5
- Features: Dust Collection Ports, Wheel and Belt Guards, Adjustable Tool Rests, Locking Paddle Safety Switch, Belt is Adjustable for Horizontal and Vertical Placement, Eye Shield
- Disc Dia. (In.): 8
- Overall Height (In.): 25-1/2
- Platen Size (In.): 2-1/2 x 12-1/4
- Wheel Dia. (In.): 8
- Table Material: Cast Iron
- Includes: Abrasive Disc, Sanding Belt, Tool Rests for Belt and Disc, Eye Shield and Spark Arrestor for Abrasive Wheel
- Arbor Size: 5/8 in
- Overall Width: 20 in
- Overall Length: 14 in
- Overall Height: 25 1/2 in
- Application: Deburring, Grinding, Paint Removal, Sanding, Sharpening
- Dust Management: Dust Port on Wheel Guard and Belt Guard
- Belt Table Size: 3-1/2 in x 2-1/2 in
- Current: 7.0/3.5A
- Number of Speed Settings: 1
- Max. Belt Speed: 4,500 fpm
- Frequency: 60 Hz
- Belt Length: 48 in
- Dust Sealed Switch: Yes
- Switch Type: Locking Paddle
- Speed Setting: Single Speed
- Disc Table Size: 4 in x 2 in
- Bearing Type: Ball Bearing
- Disc Table Material: Cast Aluminum
- Number of Pieces: 7
- Cord Length: 78 in
- Belt Table Tilting Angle: 0 Degrees to 60 Degrees
- Belt Orientation: Vertical or Horizontal
- Belt Table Angle Setting: 0 Degrees to 60 Degrees
- Disc Table Tilting Angle: 0 Degrees to 45 Degrees
- Max. Disc Speed: 3,450 RPM
- Idler Drum Size: 2 in Diameter
- Lights Included: No
- Min. Belt Width: 1 in
- Electrical Connection: Cord
- Max. Belt Width: 2 in
- Belt Table Material: Cast Iron
- Dust Collection Port Size: 2 in Belt Dust Port, 2-1/2 in Abrasive Wheel Dust Port
- Plug Type: 3-Prong Grounded
- Duty: Intermittent Duty
- Min. Disc Speed: 3,450 RPM
- Electrical Protection: Grounded
- For Use On: Metal or Wood
- Wattage: 600 W
- Disc Table Angle Setting: 0 Degrees to 45 Degrees
- Horsepower: 3/4
- Tool Weight: 74 lb
- Min. Belt Speed: 4,500 fpm
- Min. Wheel Speed: 3,450 RPM
- Max. Wheel Speed: 3,450 RPM
- Housing Material: Rolled Steel
- Country of Origin (subject to change): Multiple
