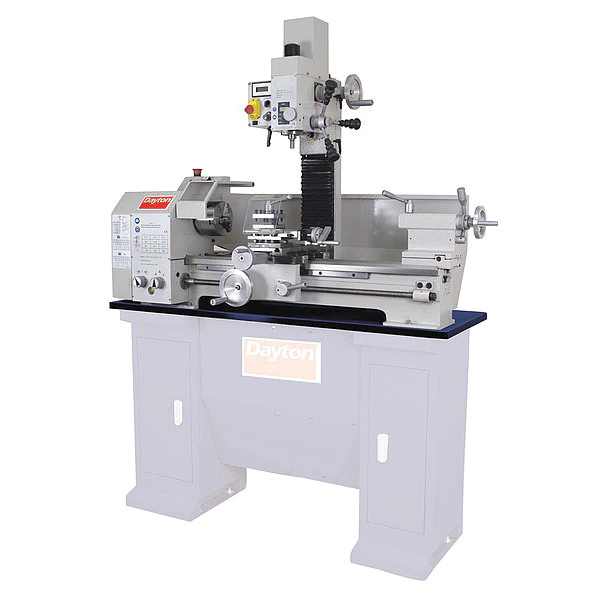

Dayton Combination Lathe/Milling Machine, 115VAC
Original price was: $401.00.$94.99Current price is: $94.99.
Lathe, Distance Between Centers 27 1/2 in, Voltage 115V AC, Horsepower 1, Application Metal Turning, Milling, Tailstock Taper MT2
Dayton #48WE41 Specifications
- Zoro #: G7325538
- Mfr #: 48WE41
- Promotion Restriction: Not eligible for promotion
- Voltage: 115V AC
- Item: Lathe
- Spindle Speed: 100 to 3000 rpm
- Motor HP: 1
- Phase: Single
- Longitudinal Travel: 11-13/64″
- Cross Travel: 6-57/64″
- Knee Travel: 13-3/4″
- Ram Travel: 5″
- Table Size: 19-11/16″ x 7-3/32″
- Head Angle: +/-90 Degrees
- Spindle Taper: MT-4, MT-2, M-10
- Tailstock Taper: MT2
- Head Angle Front/Back: 0 Degrees
- Hz: 60
- Tailstock Travel: 4-1/8″
- Number of T-Slots: 3
- Quill Travel: 2″
- Number of Threads: 0
- Spindle to Table: 14″
- T-Slot Size: 15/32″
- Features: 750 Watts
- Primary Application: Metal Turning, Milling
- Distance Between Centers: 27 1/2 in
- Swing Over Bed: 11 in
- Ram Swivel: 0 Degrees
- Frequency: 60 Hz
- Application: Metal Turning, Milling
- Horsepower: 1 hp
- Country of Origin (subject to change): China
