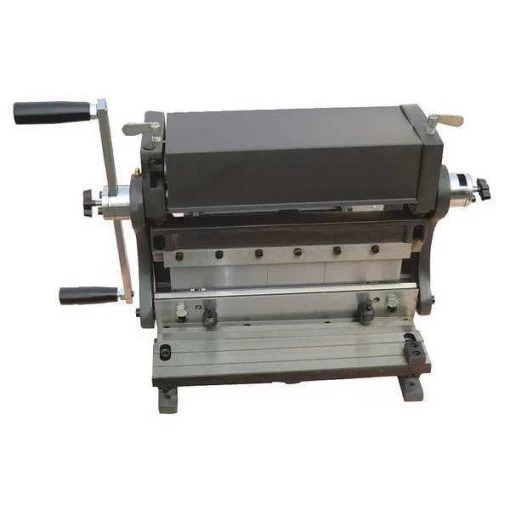

Dayton Combination Shear, 30.25 in Bending Length, 30 in Cutting Width, Min 1 1/2 in Rolls
Original price was: $572.00.$97.99Current price is: $97.99.
Combination Shear, Bending Length (In.) 30.25 in, Cutting Width (In.) 30 in, Rolls Min 1 1/2 in, Capacity of Mild Steel (Gauge) 20, Finger Width (In.) 1 in, 2 in, 3 in, 6 in, 8 in, 10 in, Dual Edge Adjustable And Reversible Blade, Cast Iron, Die Carbon Steel, Heat-treated Steel Male, Sizes 1, 2, 3, 6, 8 And 10 in , Continuous Female V Shaped Forming
Dayton #13W869 Specifications
- Zoro #: G4274191
- Mfr #: 13W869
- Item: Combination Machine
- Bending Length (In.): 30.25 in
- Cutting Width (In.): 30 in
- Rolls: Min 1 1/2 in
- Capacity of Mild Steel (Gauge): 20
- Finger Width (In.): 1 in, 2 in, 3 in, 6 in, 8 in, 10 in
- Features: High Carbon, Dual-edge Reversible Shear Blade Can Be Sharpened. Blade Is Adjustable After Wear Or Resharpening. Hold-down Is Positioned To Allow Visual Location Of The Shear Line. Bends 20 ga Mild Steel With High Carbon, Heat-treated Steel Male Dies, Sizes 1, 2, 3, 6, 8, And 10 in, Continuous Female in v in -shaped Forming Die. Three Rollers, Each 1-1/2 x 30 in, With Wire Forming Grooves. Rolls A Minimum 1-1/2 In Diar To An Unlimited Maximum. Height Stop-block. Two Extension Bars With 90 Degrees Angle. Iron Adjustable Length Stop
- Die: Carbon Steel, Heat-treated Steel Male, Sizes 1, 2, 3, 6, 8 And 10 in , Continuous Female V Shaped Forming
- Construction: Cast iron
- Blade: Dual Edge Adjustable and Reversible
- Roller Capacity Aluminum: 15 ga
- Shear Capacity Aluminum: 15 ga
- Minimum Roller Diameter: 1.54 in
- Brake Capacity Stainless Steel: 24 ga
- Brake Type: Box and Pan
- Shear Capacity Stainless Steel: 24 ga
- Brake Capacity Aluminum: 16 ga
- Shear Capacity Mild Steel: 19 ga
- Actuation: Hand Lever
- Power Source: Manual
- Bending Length: 30 1/4 in
- Brake Capacity Mild Steel: 19 ga
- Number of Rollers: 3
- Maximum Bend Angle: 90 Degrees
- Included Tool Types: Shear, Roller, Bender
- Roller Capacity Stainless Steel: 24 ga
- Roller Capacity Mild Steel: 19 ga
- Finger Width: 1 in, 2 in, 3 in, 6 in, 8 in, 10 in
- Country of Origin (subject to change): China
