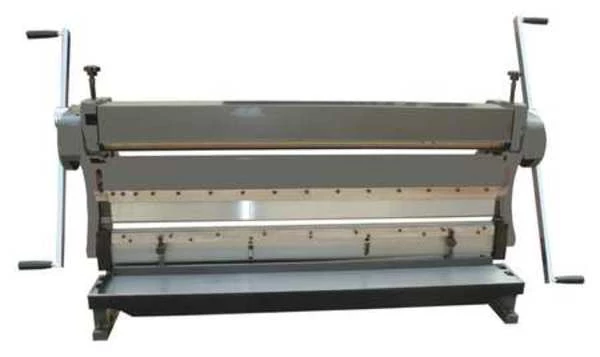

Dayton Combination Shear, 40.5 in Bending Length, 40 1/2 in Cutting Width, Min 1 11/16 in Rolls
Original price was: $450.00.$93.99Current price is: $93.99.
Combination Shear, Bending Length (In.) 40.5 in, Cutting Width (In.) 40 1/2 in, Rolls Min 1 11/16 in, Capacity of Mild Steel (Gauge) 20, Finger Width (In.) 1 in, 1 1/2 in, 2 in, 4 in, 7 in, 10 in, 15 in, Dual Edge Adjustable And Reversible Blade, Cast Iron, Die Carbon Steel, Heat-treated Steel Male, Sizes 1, 1 1/2, 2, 4, 7, 10, 15 in , Continuous Female V Shaped Forming
Dayton #13W873 Specifications
- Zoro #: G4326646
- Mfr #: 13W873
- Item: Combination Machine
- Bending Length (In.): 40.5 in
- Cutting Width (In.): 40 1/2 in
- Rolls: Min 1 11/16 in
- Capacity of Mild Steel (Gauge): 20
- Finger Width (In.): 1 in, 1 1/2 in, 2 in, 4 in, 7 in, 10 in, 15 in
- Construction: Cast iron
- Features: 1-1/2, 10, 15. Continuous Female inv in-shaped Forming Die. Three Rollers, 2, 4, 7, Dual-edge Reversible Shear Blade Can Be Sharpened. Blade Is Adjustable After Wear Or Resharpening. Hold-down Is Positioned To Allow Visual Location Of The Shear Line. Bends 20 Ga. Mild Steel With High Carbon, Each 1-11/16 x 40-1/2 In, Heat-treated Steel Male Dies, High Carbon, Sizes 1, With Wire Forming Grooves. Rolls A Minimum 1-11/16 in dia To An Unlimited Maximum. Height Stop-block. Two Extension Bars With 90 Degrees Angle. Iron Adjustable Length Stop
- Blade: Dual Edge Adjustable and Reversible
- Die: Carbon Steel, Heat-treated Steel Male, Sizes 1, 1 1/2, 2, 4, 7, 10, 15 in , Continuous Female V Shaped Forming
- Power Source: Manual
- Roller Capacity Aluminum: 15 ga
- Brake Capacity Mild Steel: 19 ga
- Shear Capacity Stainless Steel: 24 ga
- Roller Capacity Mild Steel: 19 ga
- Minimum Roller Diameter: 1.57 in
- Roller Capacity Stainless Steel: 24 ga
- Shear Capacity Mild Steel: 19 ga
- Bending Length: 30 1/4 in
- Actuation: Hand Lever
- Brake Type: Box and Pan
- Included Tool Types: Shear, Roller, Bender
- Number of Rollers: 3
- Finger Width: 1 in, 1 1/2 in, 2 in, 4 in, 7 in, 10 in, 15 in
- Shear Capacity Aluminum: 15 ga
- Brake Capacity Stainless Steel: 24 ga
- Maximum Bend Angle: 90 Degrees
- Brake Capacity Aluminum: 16 ga
- Country of Origin (subject to change): China
