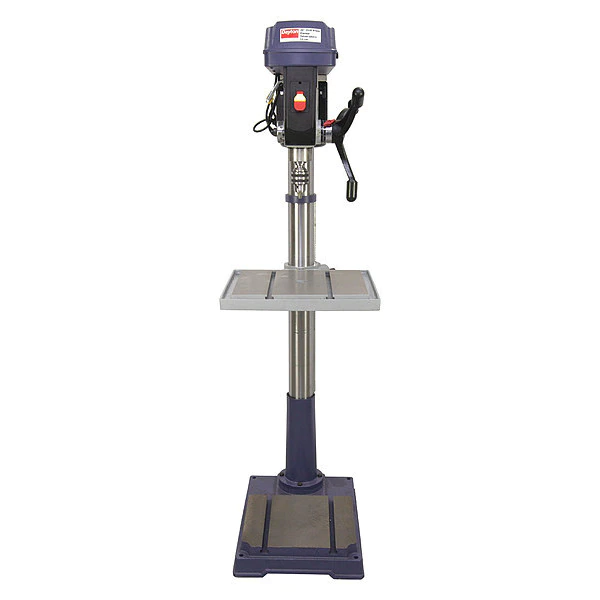

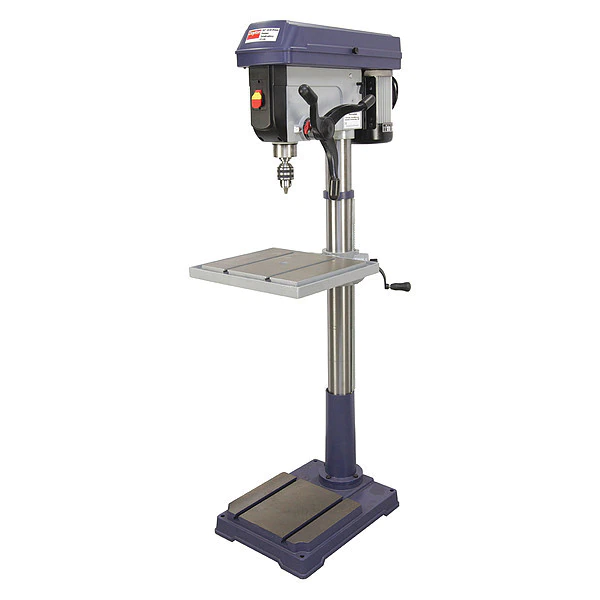

Dayton Floor Drill Press, Belt Drive, 1 1/2 hp, 120/240 V, 20 in Swing, 12 Speed
Original price was: $525.00.$96.99Current price is: $96.99.
Floor Drill Press, Primary Material Application Metal, Wood, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Reaming, Speed Control Fixed, Speed Adjustment Step Pulley, Swing 20 in, Spindle-to-Column Distance 10 in, Horsepower 1 1/2 hp, Voltage 120/240V AC, Spindle Taper 4MT, Number of Speeds 12, Chuck Size 5/8 in, Chuck Style Keyed, Guard Included No, Coolant System No, Quill Diameter 2 7/16 in
Dayton #54ZW28 Specifications
- Zoro #: G3756835
- Mfr #: 54ZW28
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 20 in
- Voltage: 120/240
- Motor HP: 1 1/2 hp
- Chuck Size: 5/8 in
- Number of Speeds: 12
- Capacity Steel: 3/4 in
- Spindle Speed: 180 to 2940 rpm
- Corded/Cordless: Corded
- Overall Depth: 29 1/2 in
- Hz: 60
- Table Slot Size: 14 mm
- Phase: 1
- Max. Spindle To Base: 43 11/32 in
- Includes: Chuck Key Holder, Chuck with Key, Depth Stop Gauge, V-Belts
- Power Down Feed Included: No
- Overall Height: 68 in
- Tilting Angle: 45 Degrees
- Amps AC: 13.0/6.5
- Table Work Surface: 18-1/2 in x 16-1/2 in
- Spindle to Table: 25 in
- Base Size: 22-7/8 in x 17 in
- Column Dia.: 3 5/8 in
- Quill Dia.: 2 7/16 in
- Overall Width: 18 1/2 in
- Spindle Taper: 4MT
- Capacity Cast Iron: 1 in
- Spindle Travel: 4 3/4 in
- Drilling Capacity Wood: Not Specified
- Number of T-Slots: 2
- Table Tilt: 45 Degrees
- Column Diameter: 3 5/8 in
- Motor Voltage: 115/230V AC ; Single-Phase
- Spindle Speed Range: 180 RPM – 2,940 RPM
- Spindle-to-Column Distance: 10 in
- Table Shape: Rectangular
- Radial Arm: No
- Drilling Capacity in Steel: 3/4 in
- Maximum Spindle-to-Base Height: 43 3/8 in
- Drill Press Application: Boring, Countersinking, Drilling, Reaming
- Speed Range: 180 to 2,940 RPM
- Drill Spindle Travel: 4 in – 5 in
- Drill Press Type: Floor Stand
- Maximum Spindle Speed: 2,940 RPM
- Speed Control: Fixed
- Horsepower: 1 1/2 hp
- Power Source: Corded
- Maximum Spindle-to-Table Height: 25 in
- Maximum Overall Height: 68 in
- Chuck Style: Keyed
- Number of Pieces: 5
- Current: 13/6.5 A
- Primary Material Application: Metal, Wood
- Table Slot: Yes
- Speed Adjustment: Step Pulley
- Quill Diameter: 2 7/16 in
- Coolant System: No
- Chuck Capacity: 5/8 in
- Minimum Spindle Speed: 180 RPM
- Guard Included: No
- Number of Spindle Speeds: 12
- Base Height: 22 7/8 in
- Base Length: 17 in
- Table Width: 16 1/2 in
- Table Length: 18 1/2 in
- Nominal Voltage: 115/230V AC
- Country of Origin (subject to change): China
