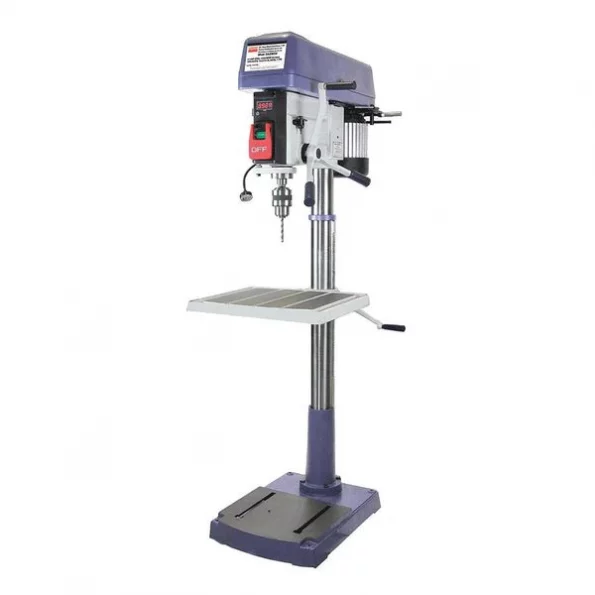

Dayton Floor Drill Press, Belt Drive, 1 1/2 hp, 120/240 V, 20 in Swing, 16 Speed
Original price was: $512.00.$91.99Current price is: $91.99.
Floor Drill Press, Primary Material Application Metal, Wood, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Reaming, Speed Control Fixed, Speed Adjustment Step Pulley, Swing 20 in, Spindle-to-Column Distance 10 in, Horsepower 1 1/2 hp, Voltage 120/240V AC, Spindle Taper 3MT, Number of Speeds 16, Chuck Size 5/8 in, Chuck Style Keyed, Guard Included No, Coolant System No, Quill Diameter 2 7/16 in
Dayton #54ZW32 Specifications
- Zoro #: G9661488
- Mfr #: 54ZW32
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 20 in
- Voltage: 120/240
- Motor HP: 1 1/2 hp
- Chuck Size: 5/8 in
- Number of Speeds: 16
- Capacity Steel: 3/4 in
- Spindle Speed: 120 to 3605 rpm
- Includes: Chuck Key Holder, Chuck with Key, Depth Stop Gauge, LED Readout for Spindle Speeds, V-Belts
- Hz: 60
- Amps AC: 14.2/7.1
- Spindle to Table: 26 in
- Table Work Surface: 19-1/4 in x 18-3/8 in
- Spindle Travel: 6 in
- Max. Spindle To Base: 43 in
- Corded/Banded: Corded
- Power Down Feed Included: No
- Drilling Capacity Wood: Not Specified
- Overall Width: 20 1/2 in
- Tilting Angle: 45 Degrees
- Table Slot Size: 14 mm
- Column Dia.: 3 11/32 in
- Overall Height: 70 in
- Base Size: 24-1/2 in x 17 in
- Spindle Taper: 3MT
- Capacity Cast Iron: 1 in
- Phase: 1
- Number of T-Slots: 3
- Quill Dia.: 2 7/16 in
- Overall Depth: 34 1/2 in
- Corded/Cordless: Corded
- Power Source: Corded
- Speed Control: Fixed
- Maximum Spindle Speed: 3,605 RPM
- Speed Adjustment: Step Pulley
- Number of Spindle Speeds: 16
- Radial Arm: No
- Spindle Speed Range: 120 RPM – 3,605 RPM
- Table Length: 19 1/4 in
- Table Tilt: 45 Degrees
- Drill Press Type: Floor Stand
- Chuck Style: Keyed
- Table Slot: Yes
- Motor Voltage: 115/230V AC ; Single-Phase
- Table Width: 18 3/8 in
- Guard Included: No
- Quill Diameter: 2 7/16 in
- Maximum Overall Height: 70 in
- Maximum Spindle-to-Table Height: 26 in
- Spindle-to-Column Distance: 10 in
- Minimum Spindle Speed: 120 RPM
- Drill Press Application: Boring, Countersinking, Drilling, Reaming
- Coolant System: No
- Chuck Capacity: 5/8 in
- Horsepower: 1 1/2 hp
- Column Diameter: 3 3/8 in
- Speed Range: 120 to 3,605 RPM
- Base Length: 17 in
- Current: 14.2/7.1 A
- Maximum Spindle-to-Base Height: 43 in
- Drill Spindle Travel: 6 in – 7 in
- Number of Pieces: 6
- Table Shape: Rectangular
- Primary Material Application: Metal, Wood
- Base Height: 24 1/2 in
- Drilling Capacity in Steel: 3/4 in
- Nominal Voltage: 115/230V AC
- Country of Origin (subject to change): China
