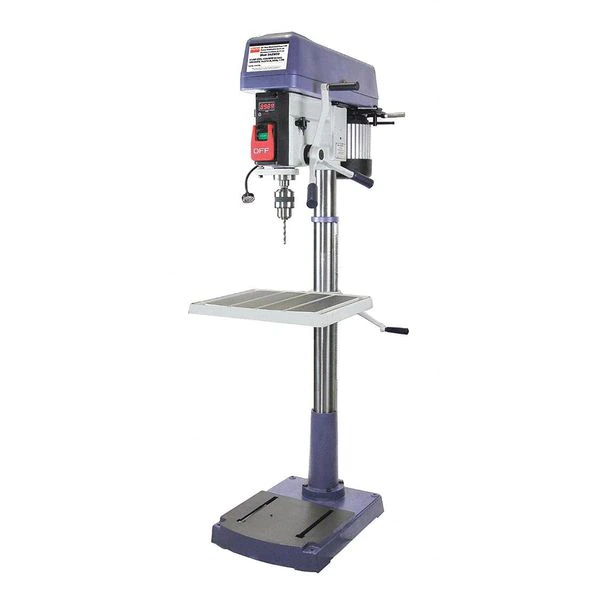

Dayton Floor Drill Press, Belt Drive, 1 1/2 hp, 240 V, 20 in Swing, 16 Speed
Original price was: $524.00.$97.99Current price is: $97.99.
Floor Drill Press, Primary Material Application Metal, Wood, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Reaming, Speed Control Fixed, Speed Adjustment Step Pulley, Swing 20 in, Spindle-to-Column Distance 10 in, Horsepower 1 1/2 hp, Voltage 240V AC, Spindle Taper 3MT, Number of Speeds 16, Chuck Size 5/8 in, Chuck Style Keyed, Guard Included No, Coolant System No, Quill Diameter 2 7/16 in, Drilling Capacity in Steel 3/4 in
Dayton #54ZW33 Specifications
- Zoro #: G9661533
- Mfr #: 54ZW33
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 20 in
- Voltage: 240
- Motor HP: 1 1/2 hp
- Chuck Size: 5/8 in
- Number of Speeds: 16
- Capacity Steel: 3/4 in
- Spindle Speed: 120 to 3605 rpm
- Amps AC: 4.5
- Overall Width: 20 1/2 in
- Spindle to Table: 26 in
- Table Work Surface: 19-1/4 in x 18-3/8 in
- Corded/Banded: Corded
- Overall Height: 70 in
- Base Size: 24-1/2 in x 17 in
- Spindle Travel: 6 in
- Table Slot Size: 14 mm
- Tilting Angle: 45 Degrees
- Power Down Feed Included: No
- Overall Depth: 34 1/2 in
- Drilling Capacity Wood: Not Specified
- Includes: Chuck Key Holder, Chuck with Key, Depth Stop Gauge, LED Readout for Spindle Speeds, Manual Spindle Reversing Switch, V-Belts
- Column Dia.: 3 11/32 in
- Phase: 3
- Quill Dia.: 2 7/16 in
- Hz: 60
- Number of T-Slots: 3
- Capacity Cast Iron: 1 in
- Spindle Taper: 3MT
- Max. Spindle To Base: 43 in
- Corded/Cordless: Corded
- Drilling Capacity in Steel: 3/4 in
- Coolant System: No
- Spindle Speed Range: 120 RPM – 3,605 RPM
- Speed Control: Fixed
- Maximum Spindle-to-Table Height: 26 in
- Maximum Overall Height: 70 in
- Guard Included: No
- Horsepower: 1 1/2 hp
- Number of Spindle Speeds: 16
- Table Width: 18 3/8 in
- Drill Press Application: Boring, Countersinking, Drilling, Reaming
- Maximum Spindle Speed: 3,605 RPM
- Quill Diameter: 2 7/16 in
- Table Tilt: 45 Degrees
- Power Source: Corded
- Radial Arm: No
- Spindle-to-Column Distance: 10 in
- Number of Pieces: 7
- Motor Voltage: 230V AC ; Three-Phase
- Primary Material Application: Metal, Wood
- Column Diameter: 3 3/8 in
- Speed Range: 120 to 3,605 RPM
- Chuck Capacity: 5/8 in
- Table Length: 19 1/4 in
- Speed Adjustment: Step Pulley
- Current: 4.5 A
- Maximum Spindle-to-Base Height: 43 in
- Base Height: 24 1/2 in
- Reversible: Yes
- Table Shape: Rectangular
- Drill Spindle Travel: 6 in – 7 in
- Table Slot: Yes
- Base Length: 17 in
- Minimum Spindle Speed: 120 RPM
- Drill Press Type: Floor Stand
- Chuck Style: Keyed
- Nominal Voltage: 230V AC
- Country of Origin (subject to change): China
