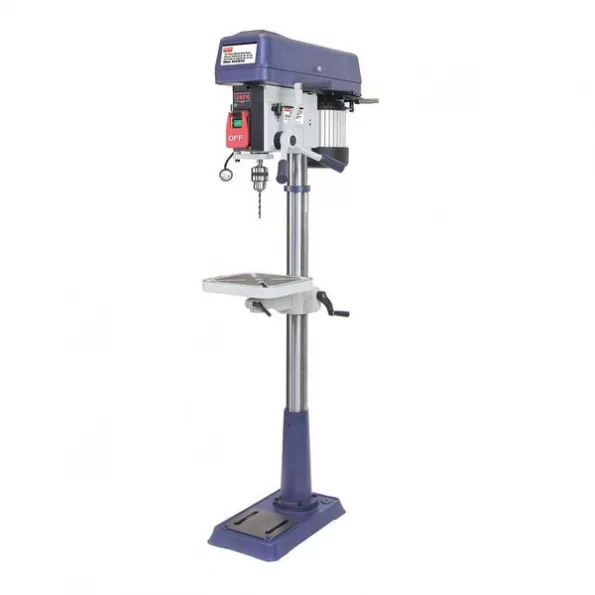

Dayton Floor Drill Press, Belt Drive, 1/2 hp, 120/240 V, 15 in Swing, 16 Speed
Original price was: $415.00.$98.99Current price is: $98.99.
Floor Drill Press, Primary Material Application Metal, Wood, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Reaming, Speed Control Fixed, Speed Adjustment Step Pulley, Swing 15 in, Spindle-to-Column Distance 7 1/2 in, Horsepower 1/2 hp, Voltage 120/240V AC, Spindle Taper 2MT, Number of Speeds 16, Chuck Size 5/8 in, Chuck Style Keyed, Guard Included No, Coolant System No, Quill Diameter 1 7/8 in
Dayton #54ZW30 Specifications
- Zoro #: G9661479
- Mfr #: 54ZW30
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 15 in
- Voltage: 120/240
- Motor HP: 1/2 hp
- Chuck Size: 5/8 in
- Number of Speeds: 16
- Capacity Steel: 1/2 in
- Spindle Speed: 138 to 3476 rpm
- Overall Width: 11 1/2 in
- Table Work Surface: 11-1/2 in x 11-1/2 in
- Drilling Capacity Wood: Not Specified
- Power Down Feed Included: No
- Corded/Banded: Corded
- Spindle Taper: 2MT
- Number of T-Slots: 6
- Tilting Angle: 45 Degrees
- Overall Depth: 26 3/4 in
- Table Slot Size: 14 mm
- Max. Spindle To Base: 47 in
- Overall Height: 67 in
- Amps AC: 8.6/4.3
- Column Dia.: 2 7/8 in
- Includes: Chuck Key Holder, Chuck with Key, Depth Stop Gauge, LED Readout for Spindle Speeds, V-Belts
- Base Size: 20 in x 13 in
- Phase: 1
- Quill Dia.: 1 7/8 in
- Spindle to Table: 26 in
- Capacity Cast Iron: 5/8 in
- Hz: 60
- Spindle Travel: 5 in
- Corded/Cordless: Corded
- Maximum Spindle-to-Base Height: 47 in
- Coolant System: No
- Spindle-to-Column Distance: 7 1/2 in
- Base Height: 20 in
- Drill Press Type: Floor Stand
- Radial Arm: No
- Horsepower: 1/2 hp
- Power Source: Corded
- Maximum Spindle-to-Table Height: 26 in
- Primary Material Application: Metal, Wood
- Motor Voltage: 115/230V AC ; Single-Phase
- Drilling Capacity in Steel: 1/2 in
- Quill Diameter: 1 7/8 in
- Speed Control: Fixed
- Current: 8.6/4.3 A
- Drill Press Application: Boring, Countersinking, Drilling, Reaming
- Maximum Spindle Speed: 3,476 RPM
- Base Length: 13 in
- Speed Range: 138 to 3,476 RPM
- Minimum Spindle Speed: 138 RPM
- Guard Included: No
- Number of Spindle Speeds: 16
- Table Width: 11 1/2 in
- Spindle Speed Range: 138 RPM – 3,476 RPM
- Table Length: 11 1/2 in
- Column Diameter: 2 7/8 in
- Drill Spindle Travel: 5 in – 6 in
- Table Shape: Square
- Number of Pieces: 6
- Speed Adjustment: Step Pulley
- Chuck Style: Keyed
- Maximum Overall Height: 67 in
- Table Tilt: 45 Degrees
- Table Slot: Yes
- Chuck Capacity: 5/8 in
- Nominal Voltage: 115/230V AC
- Country of Origin (subject to change): China
