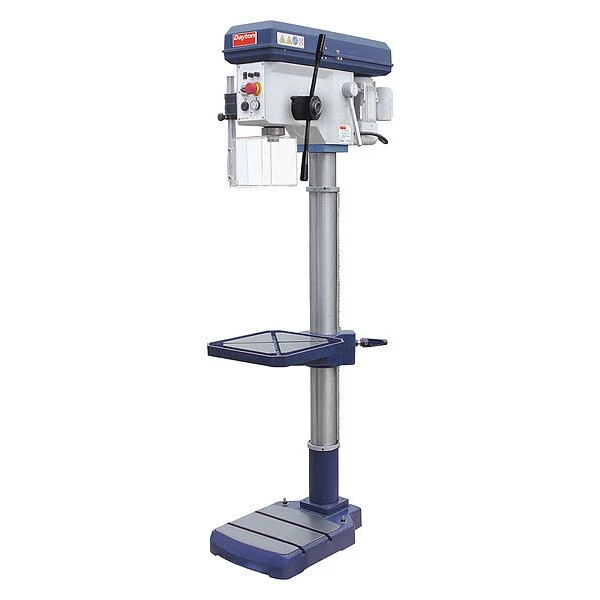

Dayton Floor Drill Press, Belt Drive, 1 hp, 115 V, 16 in Swing, 12 Speed
Original price was: $438.00.$95.99Current price is: $95.99.
General Purpose Drill Presses, Floor Drill Press, Drive Type Belt, Swing 16 in, Spindle Taper 3MT, Motor HP 1 hp, Capacity Steel 1 in, Capacity Cast Iron 1 1/8 in, Drilling Capacity Wood Not Specified, Includes 5/8 in Chuck and Key, Spindle Power Feed, Halogen Worklight, Emergency Off Button, Power Down Feed Included Yes, Voltage 115, Amps AC 11.0, Number of Speeds 12, Chuck Size 5/8 in, Spindle Speed 262 to 2920 rpm, Spindle Travel 4 1/4 pulg., Base Size 13-3/4 in x 20-3/4 in
Dayton #499F46 Specifications
- Zoro #: G9213730
- Mfr #: 499F46
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 16 in
- Voltage: 115
- Motor HP: 1 hp
- Chuck Size: 5/8 in
- Number of Speeds: 12
- Capacity Steel: 1 in
- Spindle Speed: 262 to 2920 rpm
- Drilling Capacity Wood: Not Specified
- Spindle Travel: 4 1/4 in
- Table Work Surface: 14-1/4 in x 13-1/4 in
- Max. Spindle To Base: 50 3/8 in
- Power Down Feed Included: Yes
- Column Dia.: 3 5/8 in
- Spindle to Table: 36 1/2 in
- Overall Depth: 28 9/64 in
- Includes: 5/8 in Chuck and Key, Spindle Power Feed, Halogen Worklight, Emergency Off Button
- Number of T-Slots: 3
- Hz: 60
- Phase: 1
- Quill Dia.: 2 1/16 in
- Amps AC: 11.0
- Table Slot Size: 14 mm
- Capacity Cast Iron: 1 1/8 in
- Overall Height: 67 45/64 in
- Overall Width: 17 3/4 in
- Base Size: 13-3/4 in x 20-3/4 in
- Corded/Cordless: Corded
- Tilting Angle: Non-Tilting
- Spindle Taper: 3MT
- Chuck Style: Keyed
- Speed Adjustment: Step Pulley
- Column Diameter: 3 5/8 in
- Maximum Spindle-to-Base Height: 50 3/8 in
- Table Width: 13 1/4 in
- Drill Spindle Travel: 4 in – 5 in
- Drilling Capacity in Steel: 1 in
- Speed Range: 262 to 2,920 RPM
- Coolant System: No
- Spindle-to-Column Distance: 8 in
- Current: 11 A
- Horsepower: 1 hp
- Primary Material Application: Metal
- Minimum Spindle Speed: 262 RPM
- Chuck Capacity: 5/8 in
- Spindle Speed Range: 262 RPM – 2,920 RPM
- Quill Diameter: 2 1/16 in
- Base Length: 20 3/4 in
- Table Length: 14 1/4 in
- Table Shape: Rectangular
- Power Source: Corded
- Maximum Overall Height: 67 3/4 in
- Number of Spindle Speeds: 12
- Table Slot: Yes
- Base Height: 13 3/4 in
- Guard Included: Yes
- Maximum Spindle-to-Table Height: 36 1/2 in
- Speed Control: Fixed
- Motor Voltage: 115V AC ; Single-Phase
- Number of Pieces: 6
- Drill Press Application: Boring, Countersinking, Drilling, Reaming, Tapping
- Maximum Spindle Speed: 2,920 RPM
- Drill Press Type: Floor Stand
- Nominal Voltage: 115V AC
- Country of Origin (subject to change): China
