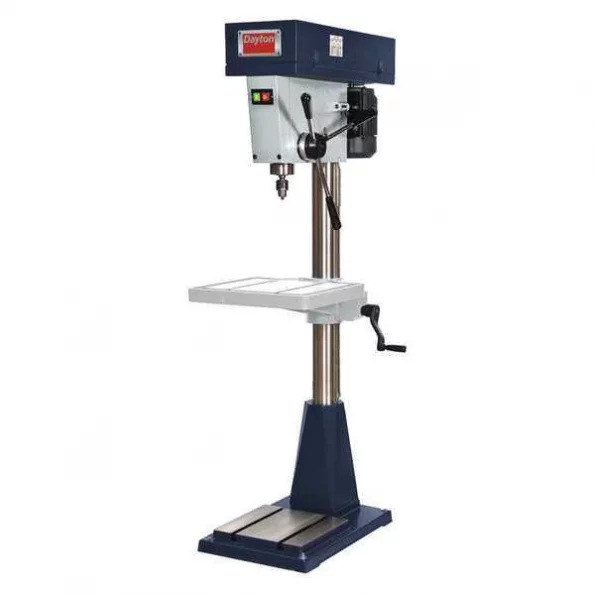

Dayton Floor Drill Press, Belt Drive, 1 hp, 120/240 V, 20 in Swing, 12 Speed
Original price was: $406.00.$92.99Current price is: $92.99.
Floor Drill Press, Primary Material Application Metal, Wood, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Reaming, Speed Control Fixed, Speed Adjustment Step Pulley, Swing 20 in, Spindle-to-Column Distance 10 in, Horsepower 1 hp, Voltage 120/240V AC, Spindle Taper MT3, Number of Speeds 12, Chuck Size 1/2 in, Chuck Style Keyed, Guard Included No, Coolant System No, Quill Diameter 2 1/8 in, Drilling Capacity in Steel 1 in
Dayton #49G986 Specifications
- Zoro #: G9173464
- Mfr #: 49G986
- Drill Press Product Grouping: Production Drill Presses
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 20 in
- Voltage: 120/240
- Motor HP: 1 hp
- Chuck Size: 1/2 in
- Number of Speeds: 12
- Capacity Steel: 1 in
- Spindle Speed: 140 to 2600 rpm
- Column Dia.: 4 in
- Spindle Taper: MT3
- Corded/Banded: Corded
- Spindle Travel: 5 in
- Power Down Feed Included: No
- Overall Depth: 32 1/2 in
- Max. Spindle To Base: 44 1/2 in
- Drilling Capacity Wood: Not Specified
- Overall Width: 22 1/2 in
- Hz: 60
- Quill Dia.: 2 1/8 in
- Phase: 1
- Capacity Cast Iron: 1 1/4 in
- Overall Height: 70 1/2 in
- Table Slot Size: 5/8 in
- Corded/Cordless: Corded
- Amps AC: 16.0/8.0
- Table Work Surface: 15 in x 13 in
- Base Size: 14-1/8 in x 13 in
- Includes: Quick Belt Tension Release, Spindle Depth Stop, Different Spindle Speed Ranges, LED, Drill Chuck and Arbor
- Spindle to Table: 26 3/8 in
- Number of T-Slots: 2
- Current: 16/8 A
- Spindle-to-Column Distance: 10 in
- Base Length: 14 1/8 in
- Quill Diameter: 2 1/8 in
- Drill Spindle Travel: 5 in – 6 in
- Column Diameter: 4 in
- Table Shape: Rectangular
- Motor Voltage: 115/230V AC ; Single-Phase
- Drilling Capacity in Steel: 1 in
- Speed Control: Fixed
- Primary Material Application: Metal, Wood
- Overall Length: 32 1/2 in
- Chuck Capacity: 1/2 in
- Cord Length: 6 ft.
- Drilling Capacity in Cast Iron: 1 1/4 in
- Maximum Spindle-to-Table Height: 26 3/8 in
- Guard Included: No
- Maximum Overall Height: 70 1/2 in
- Table Length: 15 in
- Coolant System: No
- Speed Range: 140 to 2,600 RPM
- Drill Press Application: Boring, Countersinking, Drilling, Reaming
- Power Source: Corded
- Spindle Speed Range: 140 RPM – 2,600 RPM
- Minimum Spindle Speed: 140 RPM
- Table Slot: Yes
- Speed Adjustment: Step Pulley
- Drill Press Type: Floor Stand
- Radial Arm: No
- Number of Spindle Speeds: 12
- Chuck Style: Keyed
- Base Width: 13 in
- Maximum Spindle Speed: 2,600 RPM
- Table Slot Width: 5/8 in
- Table Width: 13 in
- Maximum Spindle-to-Base Height: 44 1/2 in
- Horsepower: 1 hp
- Nominal Voltage: 115/230V AC
- Country of Origin (subject to change): Taiwan, Province of China
