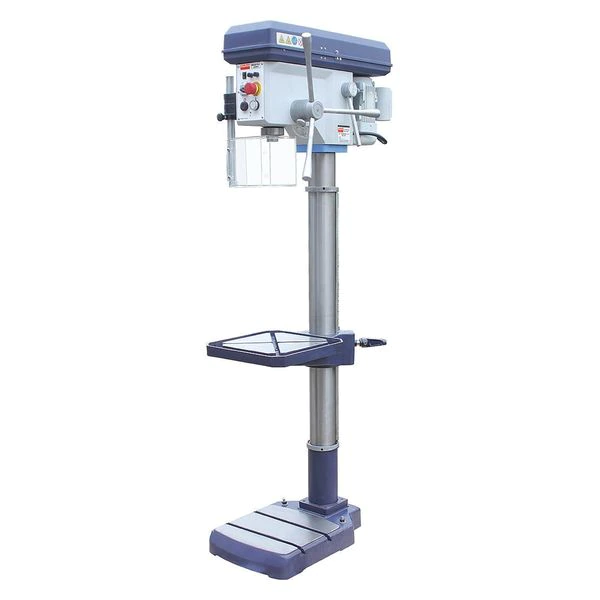

Dayton Floor Drill Press, Belt Drive, 1 hp, 120 V, 15 3/4 in Swing, 16 Speed
Original price was: $511.00.$98.99Current price is: $98.99.
Production Drill Presses, Floor Drill Press, Drive Type Belt, Swing 15 3/4 in, Spindle Taper 3MT, Motor HP 1 hp, Capacity Steel 1 in, Capacity Cast Iron 1 1/2 in, Drilling Capacity Wood Not Specified, Includes Chuck and Arbor, Safety Drill Guard, Halogen Work Light, Tool Ejector, Forward and Reverse Switch, Power Down Feed Included No, Voltage 120, Amps AC 15.0, Number of Speeds 16, Chuck Size 5/8 in, Spindle Speed 145 to 4800 rpm, Spindle Travel 4 1/4 in, Base Size 12-1/2 in x 12-1/2 in
Dayton #53UG98 Specifications
- Zoro #: G9536095
- Mfr #: 53UG98
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 15 3/4 in
- Voltage: 120
- Motor HP: 1 hp
- Chuck Size: 5/8 in
- Number of Speeds: 16
- Capacity Steel: 1 in
- Spindle Speed: 145 to 4800 rpm
- Table Slot Size: 1/2 in
- Quill Dia.: 2 in
- Overall Depth: 27 1/2 in
- Base Size: 12-1/2 in x 12-1/2 in
- Drilling Capacity Wood: Not Specified
- Spindle Taper: 3MT
- Tilting Angle: Non-Tilting
- Max. Spindle To Base: 50 1/4 in
- Overall Width: 17 3/4 in
- Includes: Chuck and Arbor, Safety Drill Guard, Halogen Work Light, Tool Ejector, Forward and Reverse Switch
- Table Work Surface: 12-9/16 in x 12-9/16 in
- Corded/Cordless: Corded
- Number of T-Slots: 2
- Overall Height: 67 3/4 in
- Spindle to Table: 33 3/4 in
- Power Down Feed Included: No
- Capacity Cast Iron: 1 1/2 in
- Column Dia.: 3 3/8 in
- Amps AC: 15.0
- Spindle Travel: 4 1/4 in
- Phase: 1
- Corded/Banded: Corded
- Hz: 60
- Spindle Speed Range: 145 RPM – 4,800 RPM
- Drill Press Type: Floor Stand
- Base Height: 12 1/2 in
- Number of Spindle Speeds: 16
- Reversible: Yes
- Base Length: 12 1/2 in
- Table Shape: Square
- Maximum Spindle-to-Table Height: 33 3/4 in
- Motor Voltage: 115V AC ; Single-Phase
- Maximum Overall Height: 67 3/4 in
- Maximum Spindle-to-Base Height: 50 1/4 in
- Table Length: 12 in
- Minimum Spindle Speed: 145 RPM
- Chuck Capacity: 5/8 in
- Speed Adjustment: Step Pulley
- Column Diameter: 3 3/8 in
- Table Slot: Yes
- Chuck Style: Keyed
- Number of Pieces: 8
- Table Width: 12 in
- Spindle-to-Column Distance: 8 in
- Horsepower: 1 hp
- Quill Diameter: 2 in
- Current: 15 A
- Speed Range: 145 to 4,800 RPM
- Power Source: Corded
- Coolant System: No
- Drill Press Application: Boring, Countersinking, Drilling, Reaming, Tapping
- Drilling Capacity in Steel: 1 in
- Speed Control: Fixed
- Drill Spindle Travel: 4 in – 5 in
- Guard Included: Yes
- Maximum Spindle Speed: 4,800 RPM
- Primary Material Application: Metal
- Nominal Voltage: 115V AC
- Country of Origin (subject to change): China
