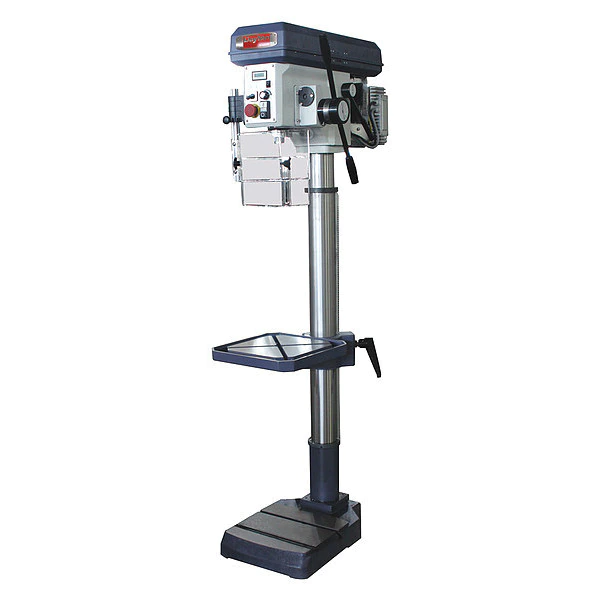

Dayton Floor Drill Press, Belt Drive, 1 hp, 230 V, 16 in Swing, Variable Speed
Original price was: $489.00.$94.99Current price is: $94.99.
Floor Drill Press, Primary Material Application Metal, Power Down Feed Included Yes, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Reaming, Tapping, Speed Control Variable, Swing 16 in, Spindle-to-Column Distance 8 in, Horsepower 1 hp, Voltage 230V AC, Spindle Taper 3MT, Number of Speeds Variable, Chuck Size 5/8 in, Chuck Style Keyed, Guard Included Yes, Coolant System No, Quill Diameter 2 in, Drilling Capacity in Steel 1 1/16 in
Dayton #55MJ91 Specifications
- Zoro #: G8681604
- Mfr #: 55MJ91
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 16 in
- Voltage: 230
- Motor HP: 1 hp
- Chuck Size: 5/8 in
- Number of Speeds: Variable
- Capacity Steel: 1 1/16 in
- Spindle Speed: 80 to 3500 rpm
- Power Down Feed Included: Yes
- Overall Height: 68 in
- Amps AC: 4.4
- Hz: 60
- Capacity Cast Iron: 1 3/16 in
- Spindle Taper: 3MT
- Max. Spindle To Base: 50 in
- Corded/Cordless: Corded
- Includes: Chuck with Key, Power Feed
- Overall Depth: 28 in
- Base Size: 13-3/4 in x 20-3/4 in
- Spindle to Table: 36 1/2 in
- Table Work Surface: 14-1/4 in x 13-1/4 in
- Number of T-Slots: 2
- Phase: 1
- Table Slot Size: 14 mm
- Spindle Travel: 4 1/4 in
- Column Dia.: 3 5/8 in
- Overall Width: 18 in
- Tilting Angle: Non-Tilting
- Quill Dia.: 2 in
- Table Shape: Rectangular
- Table Slot: Yes
- Column Diameter: 3 5/8 in
- Spindle Speed Range: 80 RPM – 3,500 RPM
- Power Source: Corded
- Maximum Overall Height: 68 in
- Maximum Spindle-to-Base Height: 50 in
- Table Length: 14 1/4 in
- Table Width: 13 1/4 in
- Maximum Spindle Speed: 3,500 RPM
- Quill Diameter: 2 in
- Speed Range: 80 to 3,500 RPM
- Minimum Spindle Speed: 80 RPM
- Number of Spindle Speeds: Variable
- Guard Included: Yes
- Current: 4.4 A
- Drilling Capacity in Steel: 1 1/16 in
- Drill Press Type: Floor Stand
- Drill Spindle Travel: 4 in – 5 in
- Motor Voltage: 230V AC ; Single-Phase
- Drill Press Application: Boring, Countersinking, Drilling, Reaming, Tapping
- Spindle-to-Column Distance: 8 in
- Number of Pieces: 3
- Base Height: 13 3/4 in
- Base Length: 20 3/4 in
- Maximum Spindle-to-Table Height: 36 1/2 in
- Chuck Style: Keyed
- Horsepower: 1 hp
- Speed Control: Variable
- Primary Material Application: Metal
- Coolant System: No
- Chuck Capacity: 5/8 in
- Nominal Voltage: 230V AC
- Country of Origin (subject to change): China
