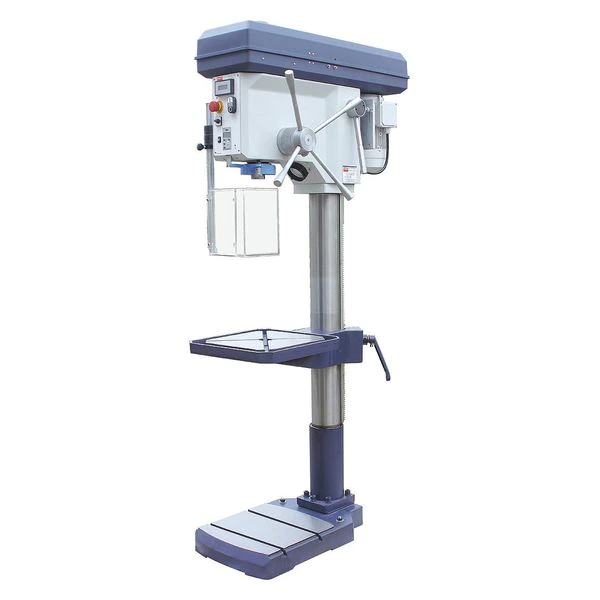

Dayton Floor Drill Press, Belt Drive, 3 hp, 240 V, 22 in Swing, 9 Speed
Original price was: $551.00.$93.99Current price is: $93.99.
Production Drill Presses, Floor Drill Press, Drive Type Belt, Swing 22 in, Spindle Taper 3MT, Motor HP 3 hp, Capacity Steel 1 1/8 in, Capacity Cast Iron 1 1/2 in, Drilling Capacity Wood Not Specified, Includes Chuck and Arbor, Safety Drill Guard, Halogen Work Light, Tool Ejector, Power Down Feed Included No, Voltage 240, Amps AC 6.0, Number of Speeds 9, Chuck Size 5/8 in, Spindle Speed 150 to 4000 rpm, Spindle Travel 6 1/4 in, Base Size 15-1/2 in x 14-1/2 in
Dayton #53UH03 Specifications
- Zoro #: G9189017
- Mfr #: 53UH03
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 22 in
- Voltage: 240
- Motor HP: 3 hp
- Chuck Size: 5/8 in
- Number of Speeds: 9
- Capacity Steel: 1 1/8 in
- Spindle Speed: 150 to 4000 rpm
- Column Dia.: 4 1/2 in
- Table Slot Size: 1/2 in
- Tilting Angle: Non-Tilting
- Corded/Cordless: Corded
- Capacity Cast Iron: 1 1/2 in
- Spindle Taper: 3MT
- Overall Width: 23 in
- Hz: 60
- Overall Depth: 36 in
- Corded/Banded: Corded
- Spindle to Table: 31 in
- Phase: 3
- Quill Dia.: 2 3/4 in
- Spindle Travel: 6 1/4 in
- Table Work Surface: 19-1/2 in x 15-3/4 in
- Includes: Chuck and Arbor, Safety Drill Guard, Halogen Work Light, Tool Ejector
- Amps AC: 6.0
- Max. Spindle To Base: 40 3/8 in
- Base Size: 15-1/2 in x 14-1/2 in
- Drilling Capacity Wood: Not Specified
- Overall Height: 75 in
- Number of T-Slots: 2
- Power Down Feed Included: No
- Number of Spindle Speeds: 9
- Speed Adjustment: Knob
- Primary Material Application: Metal
- Table Width: 15 3/4 in
- Power Source: Corded
- Coolant System: No
- Table Length: 19 1/2 in
- Maximum Spindle-to-Base Height: 40 3/8 in
- Chuck Style: Keyed
- Quill Diameter: 2 3/4 in
- Base Length: 14 1/2 in
- Table Shape: Rectangular
- Base Height: 15 1/2 in
- Spindle Speed Range: 150 RPM – 4,000 RPM
- Guard Included: Yes
- Motor Voltage: 230V AC ; Three-Phase
- Drilling Capacity in Steel: 1 1/8 in
- Maximum Spindle Speed: 4,000 RPM
- Number of Pieces: 6
- Current: 6 A
- Column Diameter: 4 1/2 in
- Spindle-to-Column Distance: 11 in
- Chuck Capacity: 5/8 in
- Minimum Spindle Speed: 150 RPM
- Speed Range: 150 to 4,000 RPM
- Table Slot: Yes
- Maximum Spindle-to-Table Height: 31 in
- Speed Control: Fixed
- Drill Press Application: Boring, Countersinking, Drilling, Reaming, Tapping
- Horsepower: 3 hp
- Drill Spindle Travel: 6 in – 7 in
- Maximum Overall Height: 75 in
- Drill Press Type: Floor Stand
- Nominal Voltage: 230V AC
- Country of Origin (subject to change): China
