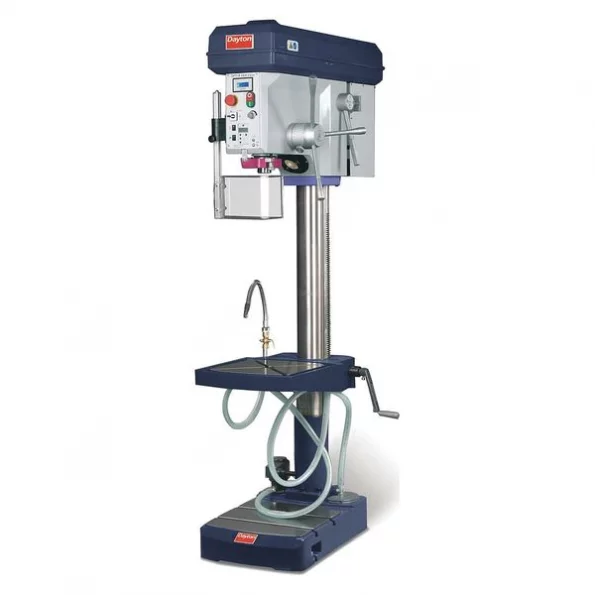

Dayton Floor Drill Press, Belt Drive, 3 hp, 240 V, 22 in Swing, Variable Speed
Original price was: $590.00.$98.99Current price is: $98.99.
Production Drill Presses, Floor Drill Press, Drive Type Belt, Swing 22 in, Spindle Taper 4MT, Motor HP 3 hp, Capacity Steel 1 5/32 in, Capacity Cast Iron 1 1/2 in, Drilling Capacity Wood Not Specified, Includes Chuck, Arbor, Guard, Light, Tool Ejector, Coolant System, Tapping Mode, Digital Depth Gauge and Speed Readout, Power Down Feed Included No, Voltage 240, Amps AC 10.0, Number of Speeds Variable, Chuck Size 5/8 in, Spindle Speed 40 to 5000 rpm, Spindle Travel 6 1/3 in
Dayton #53UH06 Specifications
- Zoro #: G9188956
- Mfr #: 53UH06
- Item: Floor Drill Press
- Drive Type: Belt
- Swing: 22 in
- Voltage: 240
- Motor HP: 3 hp
- Chuck Size: 5/8 in
- Number of Speeds: Variable
- Capacity Steel: 1 5/32 in
- Spindle Speed: 40 to 5000 rpm
- Corded/Banded: Corded
- Corded/Cordless: Corded
- Capacity Cast Iron: 1 1/2 in
- Spindle Travel: 6 1/3 in
- Drilling Capacity Wood: Not Specified
- Max. Spindle To Base: 40 3/8 in
- Phase: 1
- Table Slot Size: 1/2 in
- Number of T-Slots: 2
- Spindle Taper: 4MT
- Tilting Angle: Non-Tilting
- Includes: Chuck, Arbor, Guard, Light, Tool Ejector, Coolant System, Tapping Mode, Digital Depth Gauge and Speed Readout
- Spindle to Table: 31 in
- Hz: 60
- Table Work Surface: 19-5/8 in x 15-3/4 in
- Overall Depth: 36 in
- Quill Dia.: 2 3/4 in
- Column Dia.: 4 1/2 in
- Power Down Feed Included: No
- Amps AC: 10.0
- Overall Width: 23 in
- Base Size: 15-3/8 in x 15-3/8 in
- Overall Height: 76 in
- Chuck Capacity: 5/8 in
- Column Diameter: 4 1/2 in
- Table Shape: Rectangular
- Number of Spindle Speeds: Variable
- Guard Included: Yes
- Motor Voltage: 230V AC ; Single-Phase
- Maximum Spindle-to-Base Height: 40 3/8 in
- Spindle-to-Column Distance: 11 in
- Drill Press Type: Floor Stand
- Maximum Overall Height: 76 in
- Number of Pieces: 10
- Speed Adjustment: Step Pulley
- Maximum Spindle Speed: 5,000 RPM
- Power Source: Corded
- Primary Material Application: Metal
- Speed Control: Variable
- Horsepower: 3 hp
- Minimum Spindle Speed: 40 RPM
- Base Length: 15 3/8 in
- Drill Spindle Travel: 6 in – 7 in
- Spindle Speed Range: 40 RPM – 5,000 RPM
- Quill Diameter: 2 3/4 in
- Drilling Capacity in Steel: 1 5/32 in
- Table Width: 15 3/4 in
- Table Slot: Yes
- Table Length: 19 5/8 in
- Maximum Spindle-to-Table Height: 31 in
- Current: 10 A
- Base Height: 15 3/8 in
- Speed Range: 40 to 5,000 RPM
- Drill Press Application: Boring, Countersinking, Drilling, Reaming, Tapping
- Coolant System: Yes
- Nominal Voltage: 230V AC
- Country of Origin (subject to change): China
