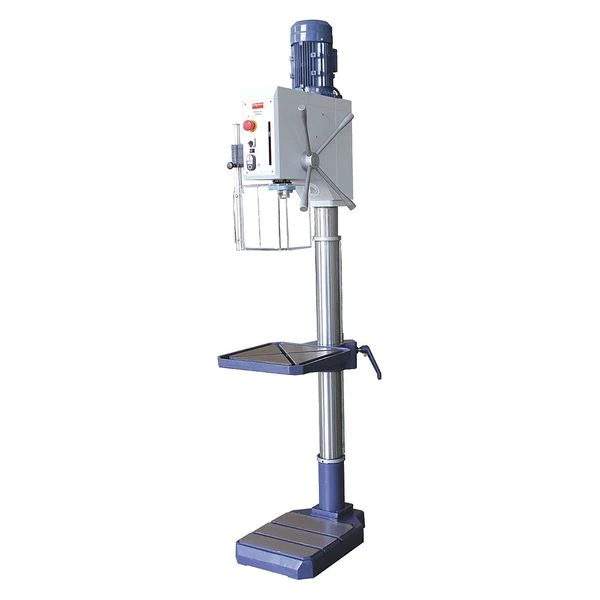

Dayton Floor Drill Press, Geared Head Drive, 1 1/2 to 2 hp, 240 V, 20 in Swing, 8 Speed
Original price was: $554.00.$94.99Current price is: $94.99.
Floor Drill Press, Primary Material Application Metal, Power Down Feed Included No, Drill Press Type Floor Stand, Drill Press Application Boring, Countersinking, Drilling, Reaming, Tapping, Speed Control Fixed, Speed Adjustment Knob, Swing 20 in, Spindle-to-Column Distance 10 in, Horsepower 1 1/2 to 2 hp, Voltage 240V AC, Spindle Taper 3MT, Number of Speeds 8, Chuck Size 5/8 in, Guard Included Yes, Coolant System No, Quill Diameter 2 1/2 in, Drilling Capacity in Steel 1 1/8 in
Dayton #53UH02 Specifications
- Zoro #: G9188971
- Mfr #: 53UH02
- Item: Floor Drill Press
- Drive Type: Geared Head
- Swing: 20 in
- Voltage: 240
- Motor HP: 1 1/2 to 2 hp
- Chuck Size: 5/8 in
- Number of Speeds: 8
- Capacity Steel: 1 1/8 in
- Spindle Speed: 130 to 3480 rpm
- Max. Spindle To Base: 47 1/4 in
- Phase: 3
- Hz: 60
- Corded/Banded: Corded
- Quill Dia.: 2 1/2 in
- Number of T-Slots: 2
- Overall Depth: 25 in
- Overall Height: 82 in
- Includes: Chuck Guard and Halogen Light
- Spindle Travel: 5″
- Spindle to Table: 34-3/8″
- Corded/Cordless: Corded
- Amps AC: 10.0
- Tilting Angle: Non-Tilting
- Drilling Capacity Wood: Not Specified
- Table Work Surface: 15-1/2 in x 14-13/16 in
- Overall Width: 15 in
- Power Down Feed Included: No
- Table Slot Size: 1/2 in
- Capacity Cast Iron: 1 1/2 in
- Column Dia.: 3 3/8 in
- Spindle Taper: 3MT
- Base Size: 12-1/2 in x 15-3/4 in
- Maximum Spindle Speed: 3,480 RPM
- Speed Adjustment: Knob
- Maximum Spindle-to-Table Height: 34 3/8 in
- Column Diameter: 3 3/8 in
- Power Source: Corded
- Table Slot: Yes
- Current: 10 A
- Motor Voltage: 230V AC ; Three-Phase
- Spindle-to-Column Distance: 10 in
- Drilling Capacity in Steel: 1 1/8 in
- Speed Range: 130 to 3,480 RPM
- Quill Diameter: 2 1/2 in
- Table Shape: Rectangular
- Number of Pieces: 3
- Guard Included: Yes
- Drill Spindle Travel: 5 in – 6 in
- Table Width: 14 7/8 in
- Table Length: 15 1/2 in
- Drill Press Type: Floor Stand
- Base Height: 12 1/2 in
- Drill Press Application: Boring, Countersinking, Drilling, Reaming, Tapping
- Maximum Spindle-to-Base Height: 47 1/4 in
- Minimum Spindle Speed: 130 RPM
- Speed Control: Fixed
- Chuck Capacity: 5/8 in
- Horsepower: 1 1/2 to 2 hp
- Primary Material Application: Metal
- Coolant System: No
- Number of Spindle Speeds: 8
- Maximum Overall Height: 82 in
- Base Length: 15 3/4 in
- Spindle Speed Range: 130 RPM – 3,480 RPM
- Nominal Voltage: 230V AC
- Country of Origin (subject to change): China
