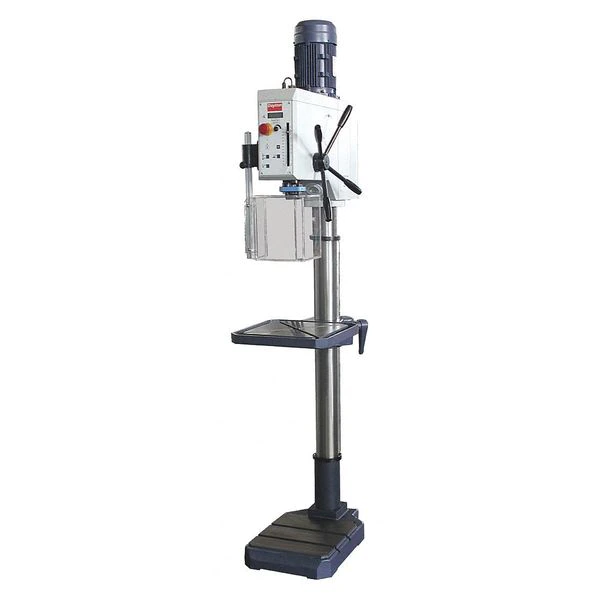

Dayton Floor Drill Press, Geared Head Drive, 2 hp, 230 V, 20 in Swing, Variable Speed
Original price was: $559.00.$98.99Current price is: $98.99.
Production Drill Presses, Floor Drill Press, Drive Type Geared Head, Swing 20 in, Spindle Taper 3MT, Motor HP 2 hp, Capacity Steel 1 in, Capacity Cast Iron 1 1/8 in, Drilling Capacity Wood Not Specified, Includes Chuck Guard with Limit Switch, Digital Speed Display, Halogen Work Light, Power Down Feed Included No, Voltage 230, Amps AC 6.5, Number of Speeds Variable, Chuck Size Not Included, Spindle Speed 54 to 3800 rpm, Spindle Travel 5 pulg., Base Size 13-3/4 in x 12-5/8 in
Dayton #467K97 Specifications
- Zoro #: G7132279
- Mfr #: 467K97
- Item: Floor Drill Press
- Drive Type: Geared Head
- Swing: 20 in
- Voltage: 230
- Motor HP: 2 hp
- Chuck Size: Not Included
- Number of Speeds: Variable
- Capacity Steel: 1 in
- Spindle Speed: 54 to 3800 rpm
- Tilting Angle: Non-Tilting
- Amps AC: 6.5
- Quill Dia.: 2 7/16 in
- Includes: Chuck Guard with Limit Switch, Digital Speed Display, Halogen Work Light
- Capacity Cast Iron: 1 1/8 in
- Drilling Capacity Wood: Not Specified
- Column Dia.: 3 5/8 in
- Overall Width: 15 in
- Table Work Surface: 15-1/2 in x 14-13/16 in
- Table Slot Size: 14 mm
- Power Down Feed Included: No
- Base Size: 13-3/4 in x 12-5/8 in
- Overall Depth: 25 in
- Number of T-Slots: 6
- Corded/Banded: Corded
- Phase: 3
- Corded/Cordless: Corded
- Spindle to Table: 34 1/2 in
- Hz: 60
- Spindle Travel: 5 in
- Spindle Taper: 3MT
- Overall Height: 81 in
- Max. Spindle To Base: 47 in
- Maximum Spindle-to-Base Height: 47 in
- Current: 6.5 A
- Primary Material Application: Metal
- Number of Spindle Speeds: Variable
- Maximum Spindle Speed: 3,800 RPM
- Maximum Spindle-to-Table Height: 34 1/2 in
- Speed Range: 54 to 3,800 RPM
- Table Shape: Rectangular
- Spindle Speed Range: 54 RPM – 3,800 RPM
- Drill Press Type: Floor Stand
- Table Length: 15 1/2 in
- Minimum Spindle Speed: 54 RPM
- Number of Pieces: 4
- Power Source: Corded
- Guard Included: Yes
- Horsepower: 2 hp
- Base Height: 13 3/4 in
- Drill Spindle Travel: 5 in – 6 in
- Spindle-to-Column Distance: 10 in
- Table Width: 14 7/8 in
- Drilling Capacity in Steel: 1 in
- Base Length: 12 5/8 in
- Coolant System: No
- Column Diameter: 3 5/8 in
- Maximum Overall Height: 81 in
- Motor Voltage: 230V AC ; Three-Phase
- Speed Control: Variable
- Drill Press Application: Boring, Countersinking, Drilling, Reaming, Tapping
- Table Slot: Yes
- Quill Diameter: 2 7/16 in
- Nominal Voltage: 230V AC
- Country of Origin (subject to change): China
