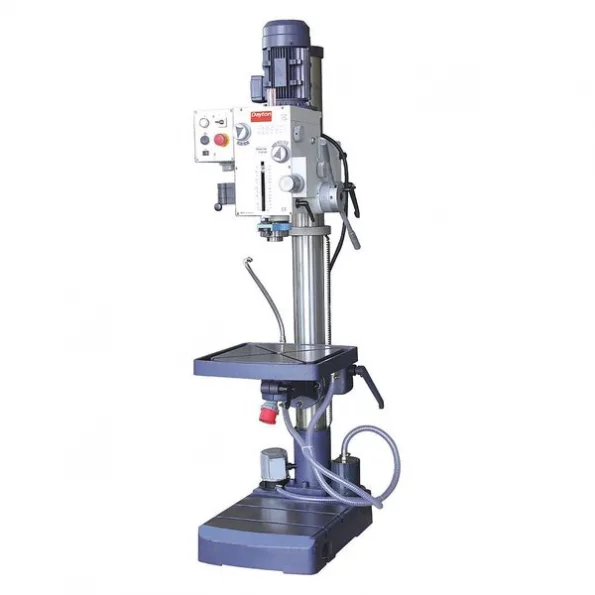

Dayton Floor Drill Press, Geared Head Drive, 2 hp, 240 V, 22 in Swing, 12 Speed
Original price was: $495.00.$96.99Current price is: $96.99.
Production Drill Presses, Floor Drill Press, Drive Type Geared Head, Swing 22 in, Spindle Taper 4MT, Motor HP 2 hp, Capacity Steel 1 1/4 in, Capacity Cast Iron 1 9/16 in, Drilling Capacity Wood Not Specified, Includes Chuck and Arbor, Safety Drill Guard, Halogen Work Light, Tool Ejector, Coolant System, Power Down Feed Included Yes, Voltage 240, Amps AC 8.0, Number of Speeds 12, Chuck Size 5/8 in, Spindle Speed 120 to 4000 rpm, Spindle Travel 4 3/4 in, Base Size 20 in x 16 in
Dayton #53UH08 Specifications
- Zoro #: G9189111
- Mfr #: 53UH08
- Item: Floor Drill Press
- Drive Type: Geared Head
- Swing: 22 in
- Voltage: 240
- Motor HP: 2 hp
- Chuck Size: 5/8 in
- Number of Speeds: 12
- Capacity Steel: 1 1/4 in
- Spindle Speed: 120 to 4000 rpm
- Overall Height: 80 in
- Tilting Angle: Non-Tilting
- Drilling Capacity Wood: Not Specified
- Max. Spindle To Base: 46 1/4 in
- Corded/Banded: Corded
- Spindle Travel: 4 3/4 in
- Quill Dia.: 2 in
- Includes: Chuck and Arbor, Safety Drill Guard, Halogen Work Light, Tool Ejector, Coolant System
- Power Down Feed Included: Yes
- Phase: 3
- Overall Width: 23 1/2 in
- Corded/Cordless: Corded
- Table Work Surface: 16-3/4 in x 17-1/2 in
- Hz: 60
- Spindle Taper: 4MT
- Number of T-Slots: 2
- Amps AC: 8.0
- Spindle to Table: 29 3/4 in
- Capacity Cast Iron: 1 9/16 in
- Base Size: 20 in x 16 in
- Column Dia.: 4 1/2 in
- Table Slot Size: 1/2 in
- Overall Depth: 28 in
- Number of Pieces: 7
- Minimum Spindle Speed: 120 RPM
- Drill Press Type: Floor Stand
- Table Slot: Yes
- Number of Spindle Speeds: 12
- Drill Spindle Travel: 4 in – 5 in
- Quill Diameter: 2 in
- Table Width: 17 1/2 in
- Spindle-to-Column Distance: 11 in
- Drilling Capacity in Steel: 1 1/4 in
- Speed Control: Fixed
- Table Shape: Rectangular
- Chuck Capacity: 5/8 in
- Maximum Spindle Speed: 4,000 RPM
- Power Source: Corded
- Maximum Spindle-to-Table Height: 29 3/4 in
- Coolant System: Yes
- Maximum Spindle-to-Base Height: 46 1/4 in
- Spindle Speed Range: 120 RPM – 4,000 RPM
- Speed Range: 120 to 4,000 RPM
- Table Length: 16 3/4 in
- Column Diameter: 4 1/2 in
- Guard Included: Yes
- Base Height: 20 in
- Primary Material Application: Metal
- Maximum Overall Height: 80 in
- Drill Press Application: Boring, Countersinking, Drilling, Reaming, Tapping
- Speed Adjustment: Knob
- Current: 8 A
- Base Length: 16 in
- Motor Voltage: 230V AC ; Three-Phase
- Horsepower: 2 hp
- Nominal Voltage: 230V AC
- Country of Origin (subject to change): China
