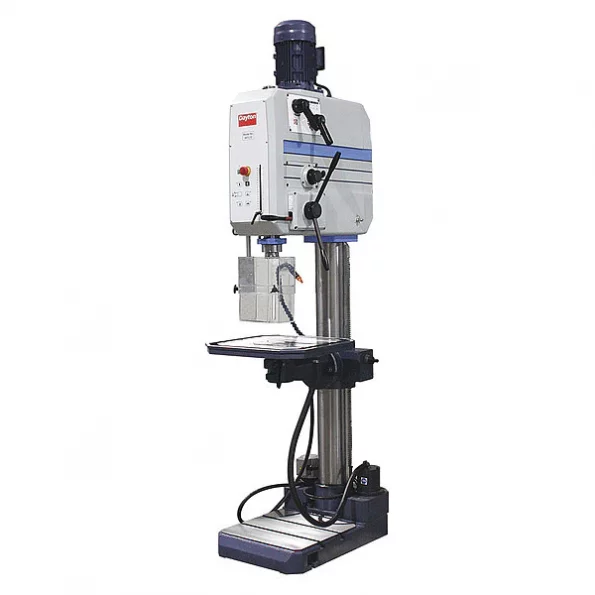

Dayton Floor Drill Press, Geared Head Drive, 3 hp, 230 V, 28 in Swing, 8 Speed
Original price was: $401.00.$97.99Current price is: $97.99.
Production Drill Presses, Floor Drill Press, Drive Type Geared Head, Swing 28 in, Spindle Taper 4MT, Motor HP 3 hp, Capacity Steel 1 1/2 in, Capacity Cast Iron 1 3/4 in, Drilling Capacity Wood Not Specified, Includes Chuck Guard with Limit Switch, Coolant System, Reversing Switch, Threading Mechanism, Power Down Feed Included Yes, Voltage 230, Amps AC 10.0, Number of Speeds 8, Chuck Size Not Included, Spindle Speed 105 to 1800 rpm, Spindle Travel 6 5/8 pulg., Base Size 29-3/4 in x 18-7/8 in
Dayton #467L02 Specifications
- Zoro #: G7132260
- Mfr #: 467L02
- Item: Floor Drill Press
- Drive Type: Geared Head
- Swing: 28 in
- Voltage: 230
- Motor HP: 3 hp
- Chuck Size: Not Included
- Number of Speeds: 8
- Capacity Steel: 1 1/2 in
- Spindle Speed: 105 to 1800 rpm
- Hz: 60
- Table Slot Size: 16 mm
- Power Down Feed Included: Yes
- Capacity Cast Iron: 1 3/4 in
- Corded/Banded: Corded
- Quill Dia.: 2 3/4 in
- Includes: Chuck Guard with Limit Switch, Coolant System, Reversing Switch, Threading Mechanism
- Spindle to Table: 28 1/2 in
- Corded/Cordless: Corded
- Spindle Taper: 4MT
- Number of T-Slots: 3
- Table Work Surface: 21 in x 21 in
- Overall Height: 86 1/2 in
- Tilting Angle: 90 Degrees
- Base Size: 29-3/4 in x 18-7/8 in
- Overall Width: 19 in
- Drilling Capacity Wood: Not Specified
- Phase: 3
- Max. Spindle To Base: 47 1/2 in
- Overall Depth: 33 1/2 in
- Column Dia.: 1 31/32 in
- Amps AC: 10.0
- Spindle Travel: 6 5/8 in
- Column Diameter: 2 in
- Number of Spindle Speeds: 8
- Speed Range: 105 to 1,800 RPM
- Maximum Spindle-to-Table Height: 28 1/2 in
- Drill Spindle Travel: 6 in – 7 in
- Maximum Spindle Speed: 1,800 RPM
- Power Source: Corded
- Motor Voltage: 230V AC ; Three-Phase
- Quill Diameter: 2 3/4 in
- Guard Included: Yes
- Number of Pieces: 5
- Spindle Speed Range: 105 RPM – 1,800 RPM
- Table Shape: Square
- Table Slot: Yes
- Minimum Spindle Speed: 105 RPM
- Table Length: 21 in
- Base Length: 18 7/8 in
- Maximum Overall Height: 86 1/2 in
- Base Height: 29 3/4 in
- Speed Adjustment: Knob
- Speed Control: Fixed
- Horsepower: 3 hp
- Table Tilt: 90 Degrees
- Coolant System: Yes
- Reversible: Yes
- Maximum Spindle-to-Base Height: 47 1/2 in
- Drill Press Type: Floor Stand
- Primary Material Application: Metal
- Spindle-to-Column Distance: 14 in
- Drill Press Application: Boring, Countersinking, Drilling, Reaming, Tapping
- Drilling Capacity in Steel: 1 1/2 in
- Table Width: 21 in
- Current: 10 A
- Nominal Voltage: 230V AC
- Country of Origin (subject to change): China
