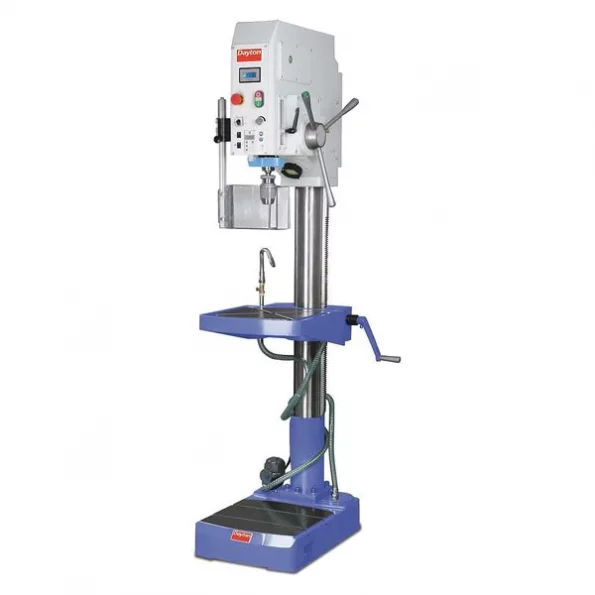

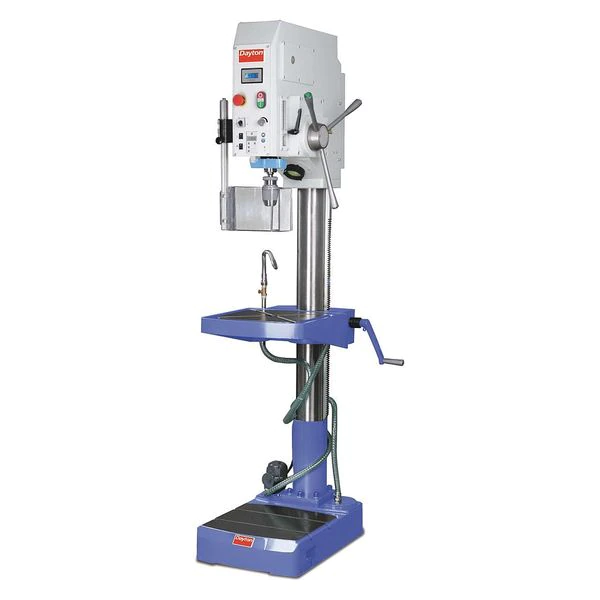

Dayton Floor Drill Press, Geared Head Drive, 3 hp, 240 V, 22 in Swing, Variable Speed
Original price was: $581.00.$98.99Current price is: $98.99.
Production Drill Presses, Floor Drill Press, Drive Type Geared Head, Swing 22 in, Spindle Taper 3MT, Motor HP 3 hp, Capacity Steel 1 5/32 in, Capacity Cast Iron 1 1/2 in, Drilling Capacity Wood Not Specified, Includes Chuck, Arbor, Guard, Light, Tool Ejector, Coolant System, Tapping Mode, Digital Depth Gauge and Speed Readout, Power Down Feed Included Yes, Voltage 240, Amps AC 10.0, Number of Speeds Variable, Chuck Size 5/8 in, Spindle Speed 80 to 3000 rpm, Spindle Travel 4 7/8 in
Dayton #53UH05 Specifications
- Zoro #: G9189078
- Mfr #: 53UH05
- Item: Floor Drill Press
- Drive Type: Geared Head
- Swing: 22 in
- Voltage: 240
- Motor HP: 3 hp
- Chuck Size: 5/8 in
- Number of Speeds: Variable
- Capacity Steel: 1 5/32 in
- Spindle Speed: 80 to 3000 rpm
- Table Slot Size: 1/2 in
- Tilting Angle: Non-Tilting
- Power Down Feed Included: Yes
- Base Size: 25-3/8 in x 16-5/8 in
- Corded/Cordless: Corded
- Spindle Taper: 3MT
- Includes: Chuck, Arbor, Guard, Light, Tool Ejector, Coolant System, Tapping Mode, Digital Depth Gauge and Speed Readout
- Quill Dia.: 2 3/4 in
- Phase: 1
- Overall Depth: 29 in
- Hz: 60
- Table Work Surface: 15-3/4 in x 19-3/4 in
- Spindle Travel: 4 7/8 in
- Number of T-Slots: 2
- Drilling Capacity Wood: Not Specified
- Capacity Cast Iron: 1 1/2 in
- Max. Spindle To Base: 52 in
- Amps AC: 10.0
- Corded/Banded: Corded
- Overall Height: 75 in
- Spindle to Table: 30 3/4 in
- Overall Width: 24 in
- Column Dia.: 4 1/2 in
- Number of Pieces: 10
- Speed Adjustment: Knob
- Coolant System: Yes
- Maximum Spindle-to-Table Height: 30 3/4 in
- Base Height: 25 3/8 in
- Motor Voltage: 230V AC ; Single-Phase
- Guard Included: Yes
- Drilling Capacity in Steel: 1 5/32 in
- Horsepower: 3 hp
- Quill Diameter: 2 3/4 in
- Spindle Speed Range: 80 RPM – 3,000 RPM
- Spindle-to-Column Distance: 11 in
- Number of Spindle Speeds: Variable
- Table Shape: Rectangular
- Drill Spindle Travel: 4 in – 5 in
- Drill Press Type: Floor Stand
- Column Diameter: 4 1/2 in
- Speed Control: Variable
- Chuck Capacity: 5/8 in
- Primary Material Application: Metal
- Maximum Overall Height: 75 in
- Maximum Spindle Speed: 3,000 RPM
- Drill Press Application: Boring, Countersinking, Drilling, Reaming, Tapping
- Table Width: 19 3/4 in
- Table Slot: Yes
- Base Length: 16 5/8 in
- Minimum Spindle Speed: 80 RPM
- Current: 10 A
- Speed Range: 80 to 3,000 RPM
- Power Source: Corded
- Maximum Spindle-to-Base Height: 52 in
- Table Length: 15 3/4 in
- Nominal Voltage: 230V AC
- Country of Origin (subject to change): China
