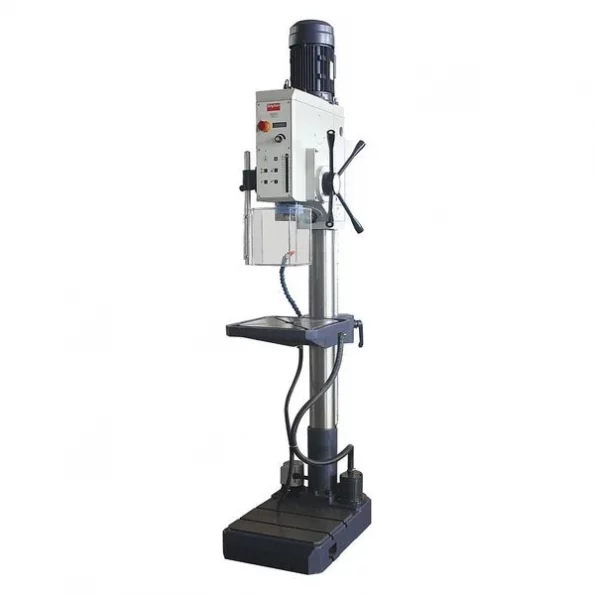

Dayton Floor Drill Press, Geared Head Drive, 3 hp, 460 V, 22 in Swing, Variable Speed
Original price was: $521.00.$95.99Current price is: $95.99.
Production Drill Presses, Floor Drill Press, Drive Type Geared Head, Swing 22 in, Spindle Taper 4MT, Motor HP 3 hp, Capacity Steel 1 1/16 in, Capacity Cast Iron 1 1/4 in, Drilling Capacity Wood Not Specified, Includes Chuck Guard with Limit Switch, Digital Speed Display, Halogen Work Light, Power Down Feed Included No, Voltage 460, Amps AC 4.9, Number of Speeds Variable, Chuck Size Not Included, Spindle Speed 60 to 3600 rpm, Spindle Travel 5 pulg., Base Size 16-1/2 in x 15-1/2 in
Dayton #467L01 Specifications
- Zoro #: G7132559
- Mfr #: 467L01
- Item: Floor Drill Press
- Drive Type: Geared Head
- Swing: 22 in
- Voltage: 460
- Motor HP: 3 hp
- Chuck Size: Not Included
- Number of Speeds: Variable
- Capacity Steel: 1 1/16 in
- Spindle Speed: 60 to 3600 rpm
- Overall Depth: 29 in
- Spindle to Table: 32 1/3 in
- Spindle Travel: 5 in
- Capacity Cast Iron: 1 1/4 in
- Table Slot Size: 14 mm
- Column Dia.: 4 17/32 in
- Number of T-Slots: 6
- Tilting Angle: Non-Tilting
- Max. Spindle To Base: 50 in
- Overall Width: 17 1/2 in
- Corded/Banded: Corded
- Includes: Chuck Guard with Limit Switch, Digital Speed Display, Halogen Work Light
- Hz: 60
- Drilling Capacity Wood: Not Specified
- Spindle Taper: 4MT
- Quill Dia.: 2 43/64 in
- Corded/Cordless: Corded
- Base Size: 16-1/2 in x 15-1/2 in
- Overall Height: 85 in
- Table Work Surface: 16-1/2 in x 15-45/64 in
- Phase: 3
- Amps AC: 4.9
- Power Down Feed Included: No
- Speed Range: 60 to 3,600 RPM
- Number of Pieces: 4
- Drill Press Type: Floor Stand
- Drill Press Application: Boring, Countersinking, Drilling, Reaming, Tapping
- Current: 4.9 A
- Primary Material Application: Metal
- Column Diameter: 4 9/16 in
- Quill Diameter: 2 43/64 in
- Table Length: 16 1/2 in
- Maximum Spindle Speed: 3,600 RPM
- Number of Spindle Speeds: Variable
- Spindle Speed Range: 60 RPM – 3,600 RPM
- Guard Included: Yes
- Table Width: 15 3/4 in
- Table Slot: Yes
- Maximum Overall Height: 85 in
- Base Height: 16 1/2 in
- Motor Voltage: 460V AC ; Three-Phase
- Drilling Capacity in Steel: 1 1/16 in
- Coolant System: Yes
- Table Shape: Rectangular
- Base Length: 15 1/2 in
- Speed Control: Variable
- Horsepower: 3 hp
- Maximum Spindle-to-Table Height: 32 11/32 in
- Spindle-to-Column Distance: 11 in
- Power Source: Corded
- Minimum Spindle Speed: 60 RPM
- Drill Spindle Travel: 5 in – 6 in
- Maximum Spindle-to-Base Height: 50 in
- Nominal Voltage: 460V AC
- Country of Origin (subject to change): China
