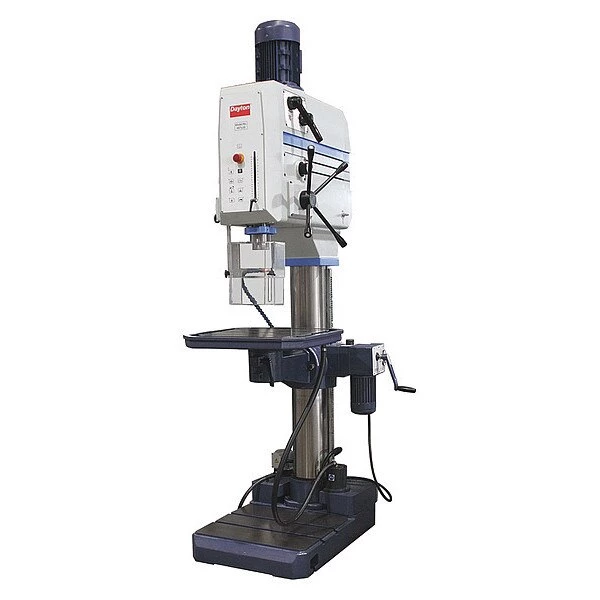

Dayton Floor Drill Press, Geared Head Drive, 4 to 5 hp, 460 V, 32 in Swing, 16 Speed
Original price was: $580.00.$96.99Current price is: $96.99.
Production Drill Presses, Floor Drill Press, Drive Type Geared Head, Swing 32 in, Spindle Taper 4MT, Motor HP 4 to 5, Capacity Steel 2 in, Capacity Cast Iron 2 5/32 in, Drilling Capacity Wood Not Specified, Includes Chuck Guard with Limit Switch, Coolant System, Reversing Switch, Threading Mechanism, Power Down Feed Included Yes, Voltage 460, Amps AC 8.0, Number of Speeds 16, Chuck Size Not Included, Spindle Speed 54 to 2400 rpm, Spindle Travel 7 7/8 pulg., Base Size 35-3/4 in x 23-5/8 in
Dayton #467L05 Specifications
- Zoro #: G7119791
- Mfr #: 467L05
- Item: Floor Drill Press
- Drive Type: Geared Head
- Swing: 32 in
- Voltage: 460
- Motor HP: 4 to 5 hp
- Chuck Size: Not Included
- Number of Speeds: 16
- Capacity Steel: 2 in
- Spindle Speed: 54 to 2400 rpm
- Spindle Travel: 7 7/8 in
- Corded/Cordless: Corded
- Capacity Cast Iron: 2 5/32 in
- Amps AC: 8.0
- Number of T-Slots: 3
- Hz: 60
- Overall Height: 92 1/2 in
- Drilling Capacity Wood: Not Specified
- Base Size: 35-3/4 in x 23-5/8 in
- Table Work Surface: 25-1/2 in x 25-1/2 in
- Overall Depth: 40 5/16 in
- Overall Width: 29 in
- Tilting Angle: 90 Degrees
- Quill Dia.: 3 29/64 in
- Max. Spindle To Base: 51 in
- Phase: 3
- Power Down Feed Included: Yes
- Corded/Banded: Corded
- Table Slot Size: 18 mm
- Includes: Chuck Guard with Limit Switch, Coolant System, Reversing Switch, Threading Mechanism
- Spindle to Table: 28 1/2 in
- Spindle Taper: 4MT
- Column Dia.: 7 7/8 in
- Horsepower: 4 to 5 hp
- Drilling Capacity in Steel: 2 in
- Primary Material Application: Metal
- Speed Range: 54 to 2,400 RPM
- Drill Spindle Travel: 7 in and Larger
- Speed Adjustment: Knob
- Table Tilt: 90 Degrees
- Spindle Speed Range: 54 RPM – 2,400 RPM
- Table Slot: Yes
- Minimum Spindle Speed: 54 RPM
- Coolant System: Yes
- Maximum Spindle-to-Base Height: 51 in
- Column Diameter: 7 7/8 in
- Maximum Spindle Speed: 2,400 RPM
- Table Width: 25 1/2 in
- Number of Pieces: 5
- Base Height: 35 3/4 in
- Base Length: 23 5/8 in
- Drill Press Application: Boring, Countersinking, Drilling, Reaming, Tapping
- Motor Voltage: 460V AC ; Three-Phase
- Guard Included: Yes
- Number of Spindle Speeds: 16
- Power Source: Corded
- Quill Diameter: 3 29/64 in
- Current: 8 A
- Maximum Spindle-to-Table Height: 28 1/2 in
- Drill Press Type: Floor Stand
- Speed Control: Fixed
- Table Shape: Square
- Table Length: 25 1/2 in
- Maximum Overall Height: 92 1/2 in
- Reversible: Yes
- Spindle-to-Column Distance: 16 1/2 in
- Nominal Voltage: 460V AC
- Country of Origin (subject to change): China
