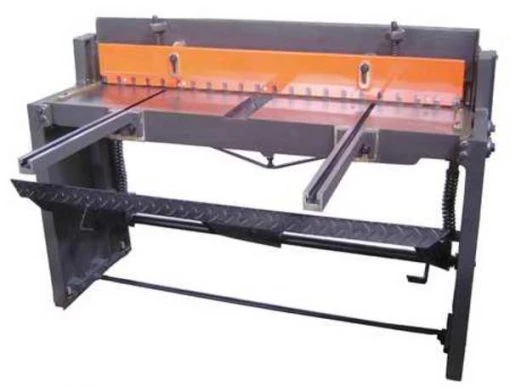

Dayton Foot Shear, 16 Ga, 37 In
Original price was: $498.00.$92.99Current price is: $92.99.
Foot Shear, Length of Cut (In.) 40, Capacity of Mild Steel (Gauge) 16, Length of Blade (In.) 40, Cutting Flat (In.) 40, Construction Steel And Cast Iron, Back Gauge Range (In.) 0 to 27, Features Hold Down W/finger Guard, Pedal Stops, Handwell, Bevel Gauge, Front Work Stop, Front Gauge Arms, Double Locking Back Gauge W/micro Adjustment, Shears Mild Steel Up To 16 Ga, Plastic, Lead, Zinc, Aluminum, Brass And Copper
Dayton #13W872 Specifications
- Zoro #: G4326637
- Mfr #: 13W872
- Item: Machining Shear
- Application: Shears Mild Steel Up to 16 Ga, Plastic, Lead, Zinc, Aluminum, Brass and Copper
- Capacity of Mild Steel (Gauge): 16
- Features: Bevel Gauge, Double Locking Back Gauge W/micro Adjustment, Front Gauge Arms, Front Work Stop, Handwell, Hold Down W/finger Guard, Pedal Stops
- Length of Blade (In.): 40 in
- Length of Cut (In.): 40 in
- Construction: Steel And Cast Iron
- Back Gauge Range (In.): 0 to 27
- Cutting Flat (In.): 40 in
- Sheet Metal Capacity Stainless Steel: 23 ga
- Back Gauge Length: 30 in
- Maximum Cutting Capacity of Flat Mild Steel: 40 in
- Adjustable Depth Stop: Yes
- Actuation: Foot Pedal
- Front Gauge Length: 37 in
- Sheet Capacity Aluminum: 15 ga
- Power Source: Manual
- Sheet Metal Capacity Mild Steel: 19 ga
- Country of Origin (subject to change): China
