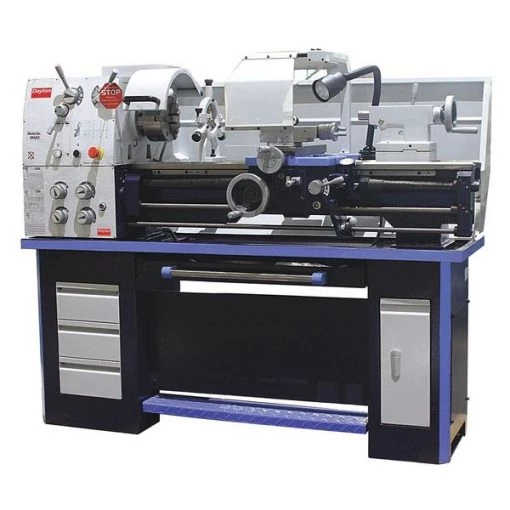

Dayton Lathe, 115/230 Volts, 2 HP, 60 Hz, 1 Phase
Original price was: $598.00.$93.99Current price is: $93.99.
Lathe, Distance Between Centers 36 in, Voltage 115/230V AC, Horsepower 2 hp, Min. Spindle Speed 65 RPM, Application Metal Turning, Overall Height 56 in, Overall Length 66 in, Overall Width 30 in, Max. Spindle Speed 1,800 RPM, Tailstock Taper MT3
Dayton #53UH10 Specifications
- Zoro #: G9188868
- Mfr #: 53UH10
- Item: Lathe
- Primary Application: Metal Turning
- Motor HP: 2
- Phase: Single
- Voltage: 115/230V AC
- Frequency: 60 Hz
- Swing Over Bed (In.): 12
- Horsepower: 2 hp
- Spindle Speed (RPM): 65 to 1800
- Gap Length (In.): 9
- Carriage Travel (In.): 31
- Distance Between Centers (In.): 36
- Spindle Bore (In.): 1-1/2
- Number of Spindle Speeds: 18
- Overall Height: 56 in
- Longitudinal Feed Rates: 0.002 to 0.055
- Bed Width (In.): 7-3/8
- Overall Width: 30 in
- Overall Length: 66 in
- Thread Range (In.): 4 to 56
- Swing In Gap (In.): 16-3/4
- Number of Threads (In.): 34
- Hz: 60
- Features: Charlock Spindle Seat, Hardened and Ground Bed Guide Ways, Stand
- Tailstock Taper: MT3
- Compound Travel (In.): 3-11/32
- Includes: (3) 160mm Jaw Chuck, (4) 200mm Jaw Chuck, 3MT Live Center, 4-Way Tool Post, Chuck and Tool Post Safety Guard, Follower Rest, Inch and Metric Gears for Threading, Splash Guard, Steady Rest, Work Light
- Cross Travel (In.): 6-3/8
- Swing Over Cross Slide (In.): 6-1/2
- Cross Feed Rates: 0.0005 to 0.015
- Thread Range (mm): 0.4 to 7
- Spindle Taper: MT-3
- Tailstock Travel (In.): 3-15/16
- Number of Threads (mm): 26
- Number of Inch Threads: 34
- Bed Width: 7 3/8 in
- Swing Over Bed: 12 in
- Max. Spindle Speed: 1,800 RPM
- Min. Metric Thread: 0.4 mm
- Max. Metric Thread: 7 mm
- Swing Over Cross Slide: 6 1/2 in
- Distance Between Centers: 36 in
- Gap Length: 9 in
- Max. Cross Feed: 0.0150 in
- Min. Spindle Speed: 65 RPM
- Max. Threads per Inch: 56
- Min. Cross Feed: 0.0005 in
- Spindle Bore: 1 1/2 in
- Number of Metric Threads: 26
- Application: Metal Turning
- Min. Threads per Inch: 4
- Swing In Gap: 16 3/4 in
- Country of Origin (subject to change): China
